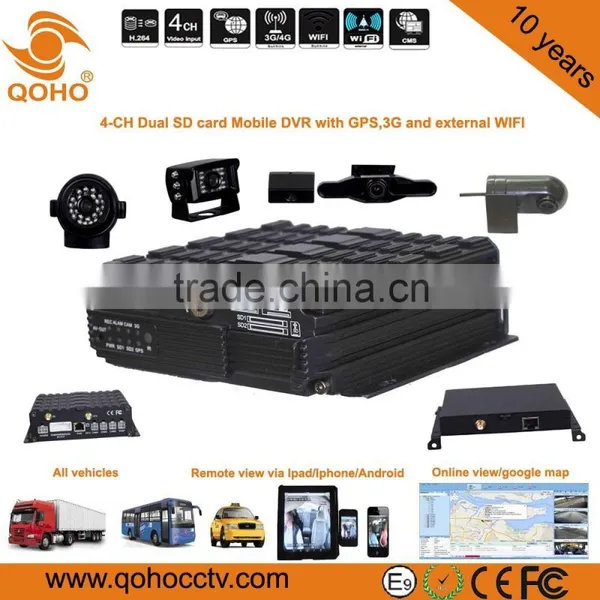

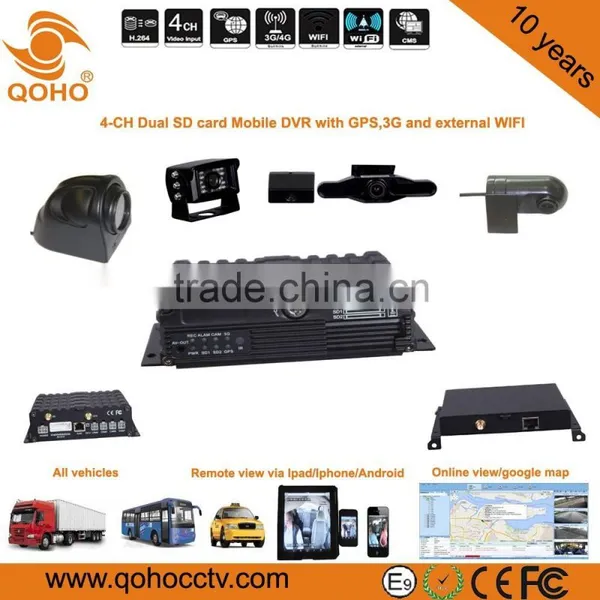

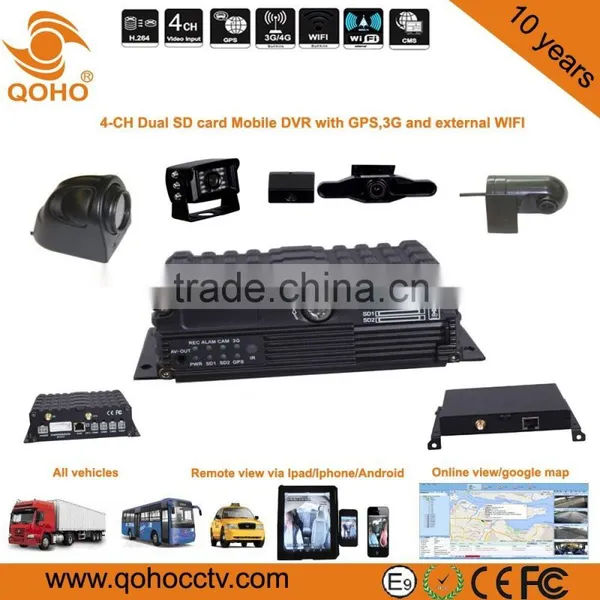

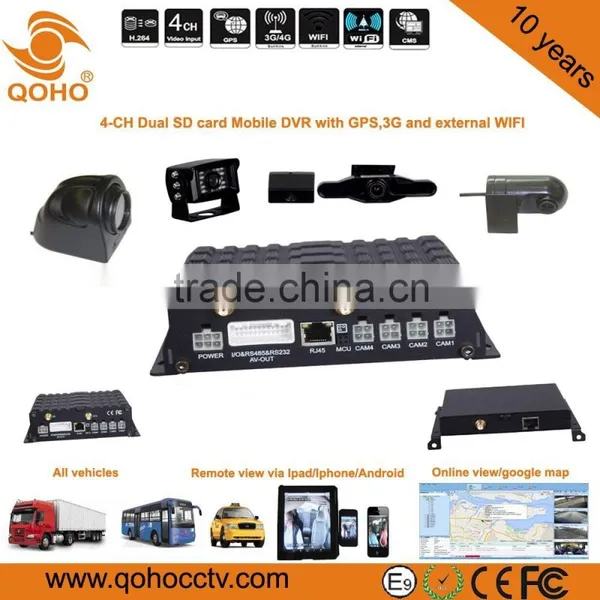

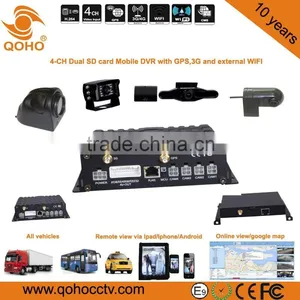

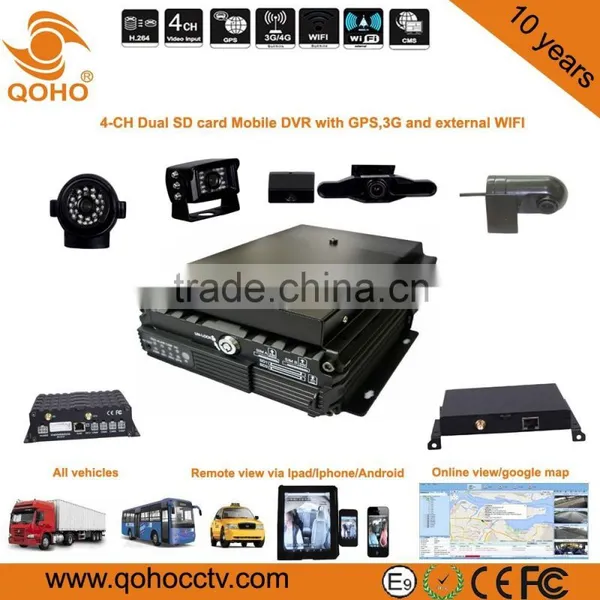

SD Card Vehicle Mobile Car DVR with dual SD card and SIM card,Anti-dust , vibration Feature for Recording
Description:
• 4-Channel DUAL SD Card mobile DVR(D1/HD1/CIF) optional;
• Dual SD card, support single max 128GB,total is 256GB(max);
• H.264 video compression, Linux operation system, Dual streaming;
• Full-metal housing, Good vibration absorber and heat-dissipated;
• Car black box function. Recording speed, location (with GPS), acceleration sensor etc.
• 3~8 sec delay power off for data protection;
• Support watermark, DST, motion detection.
• DC8V~36V wide voltage.
• Built-in 3G(WCDMA / EVDO/HSPA(TD-SCDMA) module)/4G and GPS.
• External WIFI with stable and more transmission.
Product Technical parameters:
System | language | Chinese/ English | |
Operation system | Linux | ||
Operation interface | Graphical User interface(OSD menu) | ||
Password | User /Admin password | ||
Control mode | IR remote control | ||
Video | Video input | 4-ch video composite input | |
Video output | 2-ch output(1-chΦ3.5 phone jack,1-ch 24pin jack) | ||
Display mode | Single/ 4-ch video | ||
Video compression | H.264 Main profile PAL:100f at D1/s, NTSC: 120f at D1/s | ||
Video Signal | PAL, NTSC | ||
Audio | Audio input | 4-ch audio input | |
Audio output | 2-ch audio output(1-chΦ3.5 phone jack,1-ch 24pin jack) | ||
Recording mode | Audio & Video sync Recording | ||
Image processing & storage
| Image format mode | CIF/HD1/D1 optional | |
Video stream Standard | ISO14496-10 | ||
Video bitrate | CIF: 1536Kbps ~ 128Kbps, HD1: 2048Kbps ~ 380Kbps, D1: 2048Kbps ~ 400Kbps 8 levels optional. Highest:1 level; Lowest: 8 level | ||
Audio Bitrate | 8KB/s | ||
Storage | Support Dual SD card, Max 128GB(single),total 256GB; | ||
Alarm | Alarm input | 4 alarm input, below 4V is low level alarm, above 4V are high level alarm | |
Alarm output | 1 alarm output, output high level:12V | ||
Communication Interface | RS485 Interface | Support 2-RS485 interface | |
RS232 Interface | Support 1-RS232 interface | ||
RJ45 | RJ45 interface for external WIFI 802.11b/g,test,copy,set etc | ||
Intercom | MIC | MIC+,MIC- | |
SPEAK | SPEAK+,SPEAK- | ||
Acceleration Sensor | Acceleration G-Sensor(optional) | ||
Module | GPS | GPS module. GPS Graph, GPS speed etc can be read in coding flow,and can be uploaded via wireless | |
3G/4G | HSUPA/HSDPA/WCDMA/EVDO Optional or FDD-LTE/TDD-LTE Optional | ||
WIFI | RJ45 interface external WIFI 802.11b/g,n | ||
Software | PAS(Playback Analysis Software) | Playback Recording on PC, and analyze the vehicle recording information. | |
CMS(Center Management Software) | Center management software to meet video preview, upload and central command and parameters configuration,etc. | ||
Software upgrade | Upgrade via SD card directly. | ||
Working environment | Working voltage | Input voltage DC8V-36V,enter into protected mode if it’s not in the range. | |
Power output | Output voltage 12V(±0.2V),Max: 2A | ||
Input impedance | 75Ω for each input impedance | ||
Working temperature | -25℃-85℃ | ||
Working humidity | 20%-95% | ||
Shock resistance | ≤2000G(19,600m/s2) | ||
Vibration resistance | ≤15mmp-p(5-22Hz) 49m/s2(5G) (22-500Hz) | ||
Consumption | ≤10W under normal condition,‹0.5W at standby. | ||
Body Dimension | 170(W)mm x 50(H) x 142(L)mm | ||
WE have got good reputation from all over the world.
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland.etc.....
Installation picture
CMS server(Center Management Software)
CMS viewer( Remote Live view in realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
