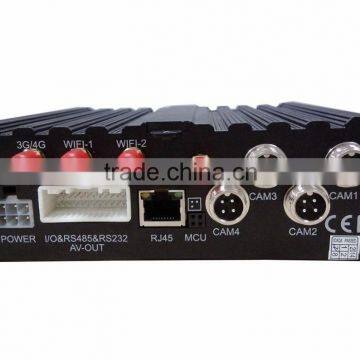

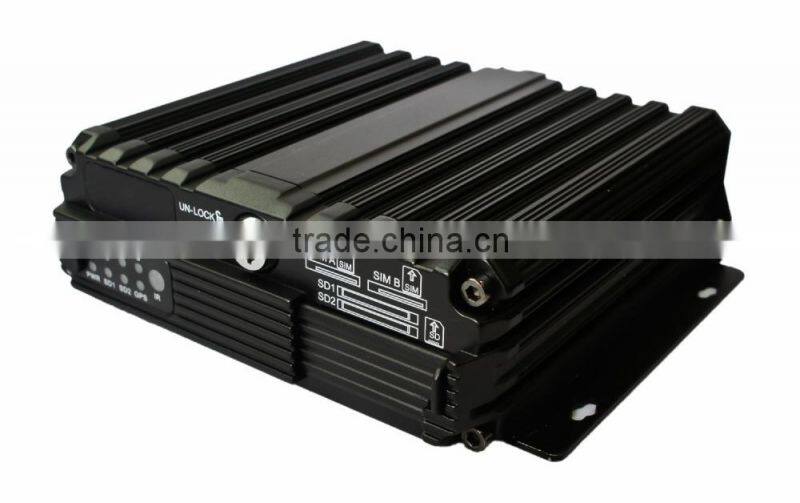

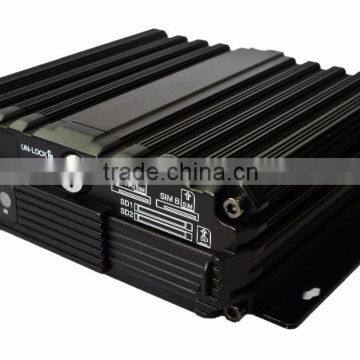

4 Channels 960H 2*SD Card Mobile DVR SD Mdvr Mobile NVR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QOHO
Model Number:
QH-MDVR8104SP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mobile Digital Video Recorder/3g& 4ch Mdvr With Certificate CE,FCC,ROHSNegotiableMOQ: 1 Piece -
4-CH 3G GPS WIFI 2TB HDD MDVR CMS ManagementNegotiableMOQ: 1 Piece
-
H.264 4 ch Mobile Dvr Distributor,Built-in WIFI,3G 4G GPS for OptionNegotiableMOQ: 1 Piece
-
4 -Channel Dual SD Card 3g Wifi Gps Car DvrNegotiableMOQ: 1 Piece
-
Vehicle 3G Mobile DVR 2TB HDD /SSD, Mobile Hdd DvrNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
QOHO
Model Number
QH-MDVR8104SP
4 Channels 960H 2*SD card Mobile DVR SD mdvr
Product Description
Features
4 channels synchronized video & audio recording and playback,Support Max. 4*960H analog camera
Dual SD card storage, support 128GB SDHC card and Class10 SDxc card
Build-in G-sensor module
Built-in GPS module,3G/4G module,WiFi module with 2 WiFi Antennas for strong signal
RJ45 network port for PC internet testing environment
Automatic downloading video files
8 seconds delay power-off for data protection
8V-36V wide voltage power supply
Dimension(L×W×H): 188×170×50 mm
| Model | QH-MDVR8104SP | |
| System | Language | English / Chinese |
| Operation Interface | Graphical menu operation interface(OSD menu) | |
| Password security | Permissions setting of administrator & user | |
| Video | Video input | 4 channels support CIF/HD1/D1/960H/720P AHD camera |
| RJ45 X 1, for IP camera or external Wi-Fi module (802.11ac) | ||
| Video output | 2 channels (1 as φ3.5 Phone Jack, 1 at 24pin connector) | |
| Video display | Single picture, 4 pictures | |
| Signal system | PAL / NTSC | |
| Image compression | H.264 Main profile | |
| Audio | Audio input | 4 channels |
| Audio output | 2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector) | |
| Record format | Synchronized video & audio recording | |
| Recording& | Video resolution | Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input |
| Video coding | ISO14496-10 | |
| Video bit rate | CIF: 1536Kbps ~ 128Kbps, | |
| D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 8 grades of image quality optional, Grade1 as best, Grade8 as lowest | ||
| Audio bit rate | 8KB/s | |
| Storage | 2 SD card storage optional, up to 128 GB / card | |
| Alarm | Alarm input | 8 channels,alarm activated by low voltage(<1V) or high voltage (>5V) |
| Alarm output | 1 channel,12V output | |
| Communication Ports | RS485 | RS485 ×1 |
| RS232 | RS232 ×2 | |
| GPS | Built-in GPS module. Real-time geographic coordinates, speed information | |
| G-Sensor | Built-in G-Sensor | |
| Wireless Communication | 3G | Built-in 3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional |
| 4G | Built-in 4G(TDD-LTE / FDD-LTE) module optional | |
| Wi-Fi | Built-in Wi-Fi(2.4/5.8Ghz) optional | |
| Software | PC playback | Video files playback in PC with analysis of the vehicle status |
| CMSV6 | Wireless real-time video&audio monitoring,GPS,alarm,etc. | |
| Software Upgrade | Upgrade through SD card | |
WE have got good reputation from all over the world.
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland.etc.....
Installation picture
CMS server(Center Management Software)
CMS viewer( Remote Live view realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
FAQ:
Q: What can I do when I found a problem with the product, but I can not solve it by myself?
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
Q: How about when there is no video output from the vehicle host device?
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
Q: How to do when the car host video input interface is different from the camera output interface?
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
Q: How to do when the device does not conduct video recording after it is turned on and SD card has already been installed?
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
Q: The video file is missing or there is no video file within a certain period of time, how to do?
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
Q: When car PTZ cannot be controlled, it cannot rotate up and down, how to do?
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
Q: GPS module exists but no coordinate information?
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
Q: If use the 3G wireless module for dial-up, what do I need to pay attention to?
A: 1. Choose the built-in wireless module WCDMA or EVDO, corresponding module settings are not the same, the modules supported by different machines models are not the same, so please make sure whether your module and SIM is in correspondence. Do not use telecom SIM card on WCDMA machine;
2.Check whether the settings of Server IP and port are correct, whether 3G signal is strong enough for dialing, and then check whether the 3G dial-up is successful or not.
3. When dialing is unsuccessful, please check 3G antenna is in good contact or not, the dial up may fail because of weak signal, moreover, please check whether the SIM card has enough traffic, if no traffic, dial-up will be unsuccessful.
A: 1. Choose the built-in wireless module WCDMA or EVDO, corresponding module settings are not the same, the modules supported by different machines models are not the same, so please make sure whether your module and SIM is in correspondence. Do not use telecom SIM card on WCDMA machine;
2.Check whether the settings of Server IP and port are correct, whether 3G signal is strong enough for dialing, and then check whether the 3G dial-up is successful or not.
3. When dialing is unsuccessful, please check 3G antenna is in good contact or not, the dial up may fail because of weak signal, moreover, please check whether the SIM card has enough traffic, if no traffic, dial-up will be unsuccessful.
