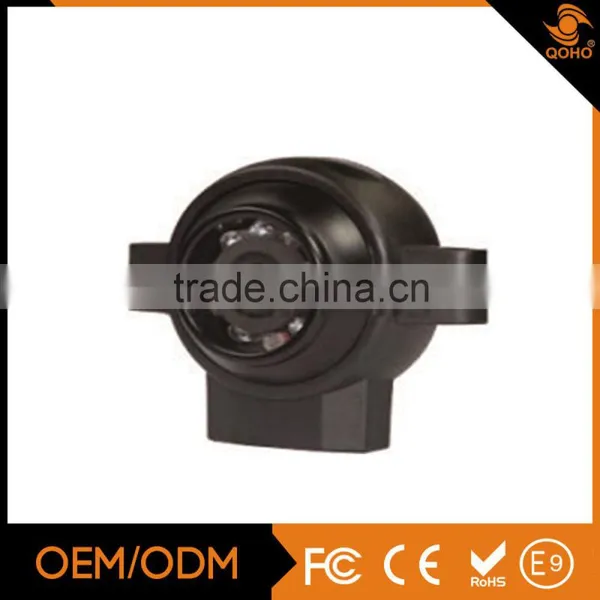

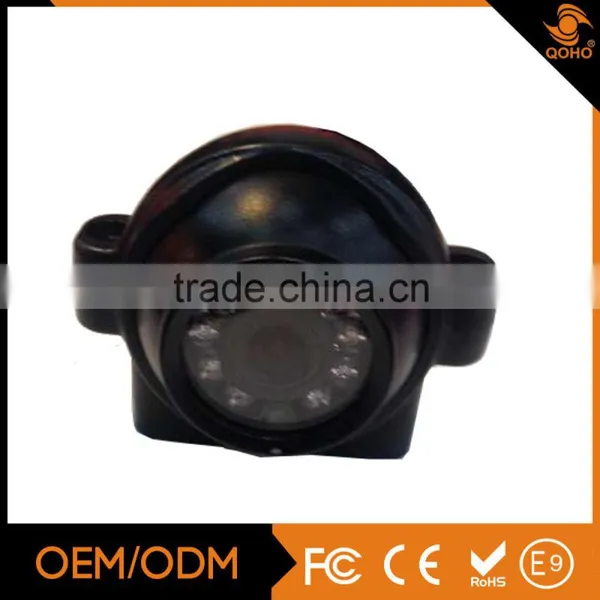

Small Size Mobile Camera,CMOS 800TVL

Small Size Mobile Camera,CMOS 800TVL thumbnail-1
Small Size Mobile Camera,CMOS 800TVL thumbnail-2
Small Size Mobile Camera,CMOS 800TVL photo-1
Small Size Mobile Camera,CMOS 800TVL photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QOHO
Model Number:
QH-MC024
Contact Supplier Request Quote Chat Now
Shenzhen QOHO Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name QOHO
Model Number QH-MC024
Type Analog Camera
Style Hidden Camera
Sensor CCD
Technology Other, CCD car camera
Special Features Other, outside use

CCD Night Vision Vehicle Outside Camera hight quality products



Description:

• High resolution,CMOS 800TVL Mini vehicle waterproof IR car camera;
• Vehicle outside use.
• 10pcsΦ5 IR LED for good night-vision.
•  Excellent night-vision, clear image, low noise
• CMOS 800TVL,3.6mm lens.
• Audio is optional



Product Technical parameters:

Image Sensor 1/3" CMOS
Horizontal Resolution 800TV lines
TV System PAL/NTSC
Effective Pixels PAL:976(H) x 582(V)                                                                 NTSC: 976(H) x 494(V)
Minimum Illumination Color 0.001Lux;IR ON 0 Lux
S/N Ratio ≥60dB(AGC OFF)
DAY&NIGHT MODE  COLOR MODE/AUTO MODE/B&W MODE
Auto Gain Control  AUTO/MANUAL,8 Value settings
Back Light Comp Back light compensation, high light suppression
 White Balance Multi- mode selection
Noise Reduction 3D
 WDR  High/Middle/Low
Lens 2.8MM
Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
Video Out 1.0V p-p 75, BNC connector
Control mode OSD manual,support 8 languages
Synchronization System Internal
Scanning System 2:1 Interlaced
PRIVACY  8 areas,freely set up position,size and 8 colors
Motion Detection  Grid tracking,4 areas,freely set up positions and size
IR LEDs 10PCS
IR distance 5~10M
Waterproof level IP66
Working temperature -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤3W
Dimension 72*50*58mm



Advantage:

Vehicle outside IR camera.



Installation picture:



small size mobile camera,CMOS 800TVL

Good effect from show of all over the world!

INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex poland etc....



small size mobile camera,CMOS 800TVL

 small size mobile camera,CMOS 800TVL

E-mark for E-9 certificate

small size mobile camera,CMOS 800TVL

CE FCC

small size mobile camera,CMOS 800TVL
