CNC Machine Frame;BMC2704L

Name: CNC Machine Frame;BMC2704L
Brand: SMARTECH
SKU: 123973385
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number BMC2704L

Type Vertical

CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

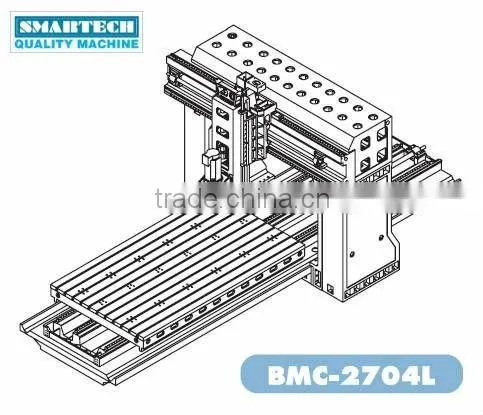

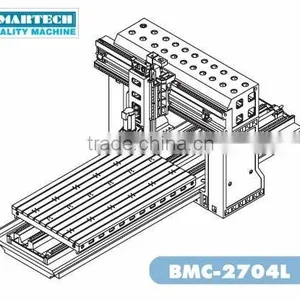

SMARTECH CNC BMC FRAME

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors;

5 Telescopic protection on X/Y axis ;

6 Central lubrication system;

7 Spindle trunk hydraulic balance system;

8 Imported coupling;

9 Harden&ground on all slideways and Turcite-B coated with precise scraping;

OPTIONAL: Different type milling heads

MODEL	BMC-2704L
Table Size	2300 x 4000
Travel X	4000
Y	2700
Z	1000
Distance between columns	2700
Spindle Nose to table surface	260-1260
T-Slot(QTY/size/distance)	11/28/200
Spindle Speed(max) with Gear box	3000rpm
Spindle Speed(max) with ZF Gear box	6000rpm
Spindle Speed(max) standard	4000rpm(Direct Drive)
X axis Ball Screw Spec.	80/20
Y axis Ball Screw Spec.	63/16
Z axis Ball Screw Spec.	50/10
Drive motors recommended X/Y/Z	60/30/40Nm
Table Work Load	16000Kg
Net Weight	50000kg
