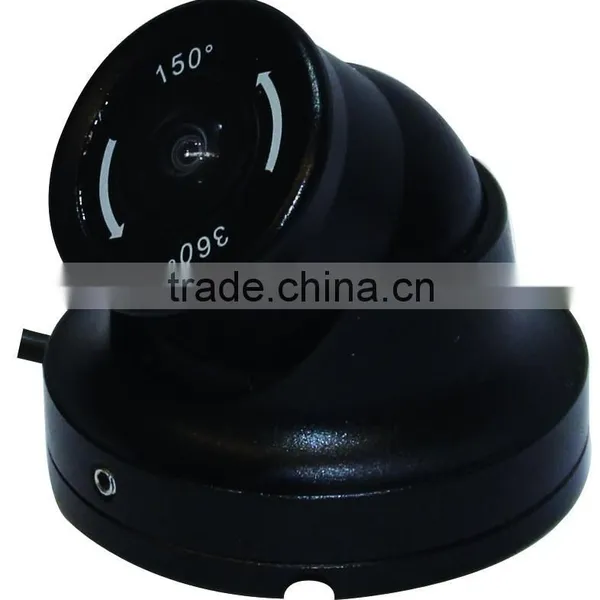

1/3' sony super had ccd camera Mini Metal IR Car Dome 150 degree 360 degree car camera
• 700TVL Mini car IR dome camera; Mini car camera,small size;
• High resolution IR domes Camera.
• Car rearview car IR dome camera.
• 3.6mm lens,2.5mm lens and 2.8mm lens is optional. 6pcs IR LEDs.
• 1/3" Color CCD,700TVL.Audio is optional
• Small size:Body size: 55*55*53mm.
It can be installed inside and outside vehicle.
Mini Metal IR Car Dome Camera 150 degree / 360 degree with Fisheye
• 1/3" 1/4 Color CCD, the resolution is 650TVL
• Min.illumination 0.5Lux
• Angle of View:ceilling mount:360° wall mount 150°
• Operating Temperature:-20°C~70°C
• 1.75MM
• Body size:48*40*45mm
Product Technical parameters:
| Image Sensor | 1/3" 1/4 Color CCD |
| Horizontal Resolution | 600TVL |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:752(H) x 582(V) NTSC: 768(H) x 494(V) |
| IR Leds Qty | NIL |
| Minimum Illumination | 0.5Lux; (IR ON) 0 Lux |
| Infrared distance | NIL |
| S/N Ratio | ≥48dB |
| lens | 1.75MM |
| Angle | Wall mount 150 degrees,Celling mount 360 degrees |
| Operating Temperature | -20°C ~ 70°C |
| Video Out | 1.0V p-p 75ohm,RCA/BNC |
| Synchronization System | Interior |
| Scanning System | 2:1 interleave |
| Auto Gain Control | AUTO |
| Back Light Comp | AUTO |
| White Balance | AUTO |
| work power | 70mA |
| Power | 12V DC/500mA |
| Material | aluminum alloy |
| Body size | 48*40*45mm |
Installation picture:
Good effect from the exhition from all over the word.
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland etc.....
Shenzhen QOHO Electronics Co.,Ltd office,test department,production line.
E-mark for E-9 certificate
CE FCC
- Factory direct professional and high quality products for fleet management;
- Intelligent vehicle monitoring solution provider;
- OEM/ODM projects are welcome with technology support;
- Best before and after-sales services.
Shenzhen QOHO Electronics Co.,Ltd has strong production and R & D strength. QOHO products pass CE, RoHS certificate. And factory got ISO9001:2008 standard for Research and development, sales of mobile digital video recorder, mobile cameras.
Shenzhen QOHO Electronics Co.,Ltd have got, E-mark(E-9), CE, FCC, RoHS certificate and test report of Temperature & humidity & Shock test for our all products.
