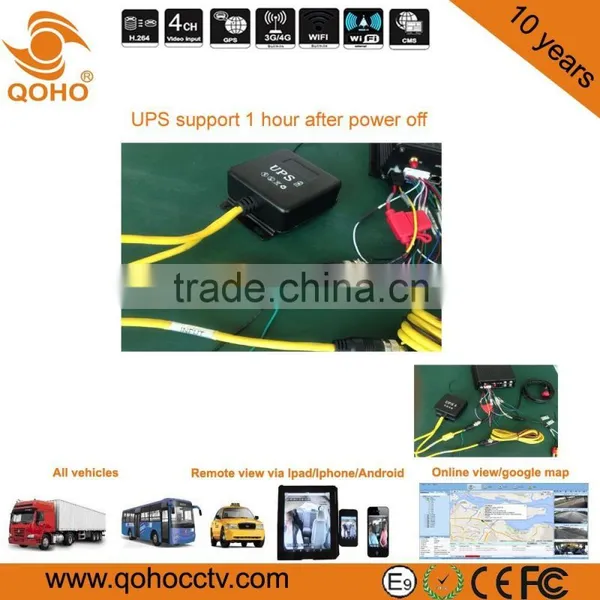

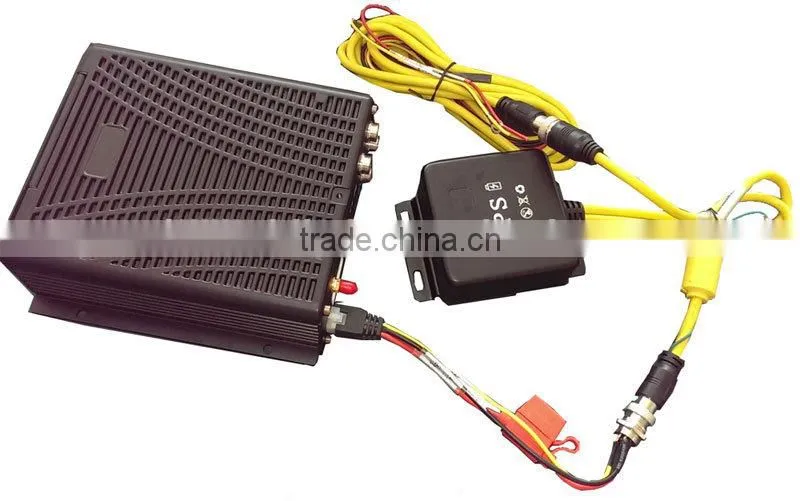

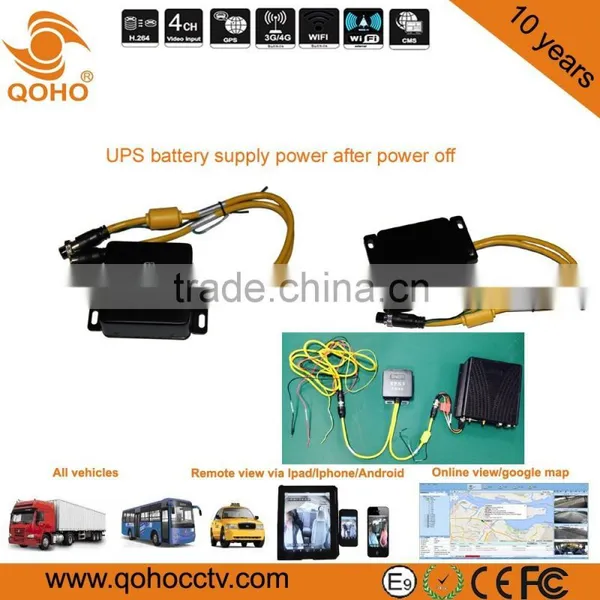

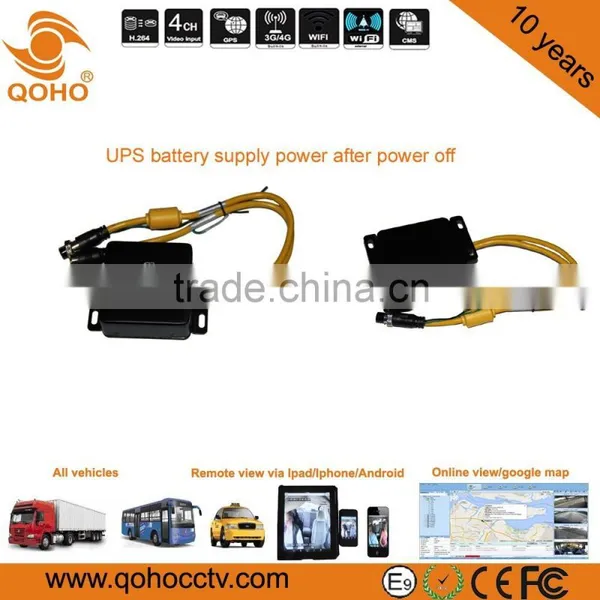

Vehicle UPS
The UPS is high-end backup power which designed for vehicle MDVR products.
The input section uses a lithium iron phosphate battery and special charge management IC;
and it uses the high efficiency DC-DC buck-boost switching circuit.
In order to achieve accurate voltage overshoot, over-discharge voltage,
current overload and short circuit protection it uses a battery cell Protection control circuit.
Rated input voltage is 8 ~ 36V DC. When the supply voltage of vehicle MDVR is less than 9V or
unexpected power failure the vehicle MDVR will automatically switch to UPS.
Caution:MDVR will work five minutes default after the vehicle keys close,
if customers want to lengthen working hours after power failure,
please change the delay time on the DATE&TIME interface of MDVR.
IC control technology and multiple protection circuit;
High-efficiency current output, high-capacity branded lithium battery;
Friendly and easy to install;
Special vehicle power supply input and output ports;
All-metal shell design for vandal proof;
Long battery life, outstanding high temperature durability, no memory effect and Environmentally Friendly;
SD card MDVR: 5W~7W without Camera,15W~17W with 4 Cameras
HDD MDVR: 7W~9W without Camera,17W~19W with 4 Cameras
UPS parameter:
1) Charing voltage: 10.95V
2) Discharge cut-off voltage:6.9V
3) Battery rated capacity:1400mAh
4) The nominal voltage:9.6V
5) Charging way: when the external power supply voltage, automatically starts charging.
6) overcharge protection voltage
7) Over-discharge protection voltage
8) Discharge overcurrent
9) Short circuit protection
10) Input Voltage Range:7V~40V
11) Operating temperature range:Charging:0~45°C
Discharge:-20~55°C
13) Size:120x90x42.5mm
| UPS Parameters | |||
| Projects | Technical indicators | Unit | Remark |
| working temperature | -20~75℃ | ℃ | |
| vibration resistance | MIL-STD-810F | ℃ | |
| power performance | ISO 7637 | ||
| shock limit | ≤2000 | G | (19,600M/S2)@1MS |
| waterproof rating | IP53 | ||
| machine power | 0.01 | W | |
| cooling | metal cooling | natural cooling | |
| Input Characteristics | |||
| Projects | Technical Requirements | Unit | Remark |
| Input voltage | 8V~36V | Vdc | |
| Conversion efficiency | ≥85% | ||
| Maximum input current | ≤2.6 | A | 12V below |
| Output Characteristics | |||
| Projects | Technical Requirements | Unit | Remark |
| Output Current Range | 0~1.4 | A | |
| Output Voltage Range | 8~9.7 | V | |
| Noise | ≤50 | dB | |
| Protection Characteristics | |||
| Project | Technical Requirements | Unit | Remark |
| Discharge voltage protection (batteries) | 8 | V | Over discharge release 7V |
| Charging voltage protection (batteries) | 10.9 | V | Overcharge release 10.95V |
| Load current (batteries) | ≥1 | A | |
| Output over-current | ≥6 | A | Lock(protection) |
