3 Years Warranty 12 Volt Flexible Dip Led Strip for Advertising Signs
US$ 6 - 8
MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
5mm DIP
Type:
Flex LED Strips
Input Voltage(V):
DC12
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE RoHS 30leds/m 60leds/m 120leds/m Flexible 3528/5050 Led StripUS$ 2.6 - 3.1MOQ: 5 Meters -
3 Years Warranty High Quality Flexible 12 Volt SMD 5050 Rgb Led StripUS$ 2.6 - 3.1MOQ: 10 Meters
-
3 Years Warranty High Quality SMD 5050 Flexible 12 Volt Rgb Led StripUS$ 4 - 6.5MOQ: 10 Meters
-
3 Years Warranty High Quality SMD 5050 Flexible 12 Volt Led Strip LightsUS$ 2.6 - 3.1MOQ: 10 Meters
-
2013 Best Selling SMD 3528 5050 Led Strip Flexible Led Strip LightingUS$ 2.6 - 3.1MOQ: 5 Rolls
LED Light Source
5mm DIP
Type
Flex LED Strips
Input Voltage(V)
DC12
Lamp Power
7.6w/m
Lamp Luminous Flux(lm)
96X7
Color Temperature(CCT)
Warm White/Cool white /Natural White/RGB
Working Temperature(℃)
-20, +60
Working Lifetime(Hour)
50000
Lamp Body Material
Other, PCB Board + Silicone
Certification
CCC, CE, EMC, LVD, UL
Emitting Color
Other, R/R/B/Y/CW/NW/WW
Place of Origin
Guangdong, China
Brand Name
Blue Lighting
Model Number
BL-FD-F5-WW-96
Specifications
12 volt flexible dip Led strip for advertising signs1. waterproof IP65
2. Power:7.6w/meter
3.CE and RoHS
4.MOQ: 10m
3 years warranty 12 volt flexible dip Led strip for advertising signs
Item:BL-FD-F5-WW/CW/R/G/B/Y-96-A
Dip led strip for advertising signs Features:
1.use the super brightness φ5 DIP LED chip (Flat Head) as lighting source.
2.Available Red/Green/Blue/Yellow/Cool White/Warm White;
3.Input Voltage: DC12V
4.MAX Power: 7.6W/1meter
5.Can be cut by every 3 LEDs
6.Waterproof IP65
Dip led strip for advertising signs Specification:
| Item type | BL-FD-F5-WW-96 |
| LED Type | 5mm dip led strip |
| Package | 1 Meters / Reel |
| Wattage | 7.6w/m |
| Leds Numbers/m | 96pcs/m |
| Light Output | 96x1800MCD |
| Color | R/G/B/Y/WW/NW/CW |
| Length | 48pcs,96pcs.192pcs |
| Flux(±15%) | 96x7.0LM |
| wires on both ends | Red&Black wire |
| λ(Nm)/ (CT:K) | 2900-7000k |
| Packing | 1M/pcs |
| View angle | 90° |
| Voltage | 12V |
| Led Numbers | 96 leds/5 Meter |
| Working Tempreture | -20° to 60° |
| Certification | CE RoHS |
| Warranty | 2 yeras |
Dip led strip for advertising signs parameters:
| Part Number | Color | Light Output(±15%) | Flux(±15%) | λ(Nm)/ (CT:K) | View Angel | Packing |
| BL-FD-F5-WW-96-A | Warm White | 96x1800MCD | 96x6.0LM | 2900-3100K | 90° | 1M/pcs |
| BL-FD-F5-CW-96-A | Cool White | 96x2000MCD | 96x7.0LM | 6000-6500K | 90° | 1M/pcs |
| BL-FD-F5-R-96-A | Red | 96x600MCD | 96x2.0LM | 620-630nm | 90° | 1M/pcs |
| BL-FD-F5-B-96-A | Blue | 96x1200MCD | 96x4.5LM | 520-525nm | 90° | 1M/pcs |
| BL-FD-F5-G-96-A | Green | 96x400MCD | 96x1.8LM | 465-470nm | 90° | 1M/pcs |
| BL-FD-F5-Y-96-A | Yellow | 96x600MCD | 96x2.0LM | 588-593nm | 90° | 1M/pcs |

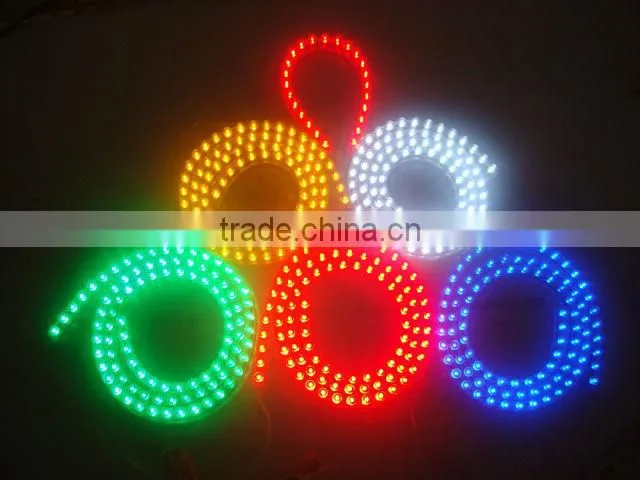

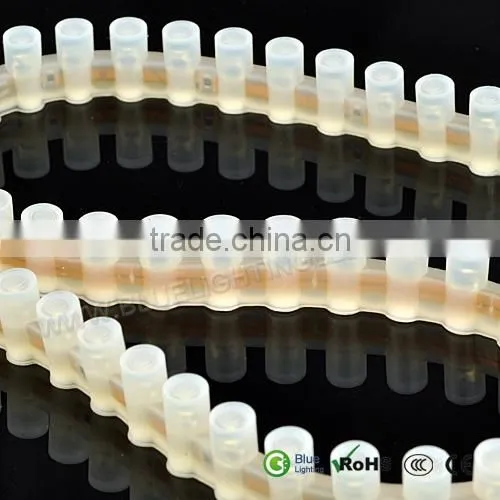

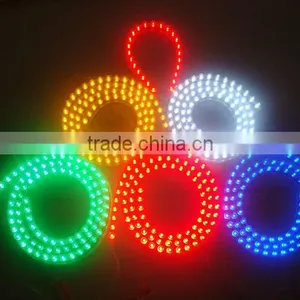

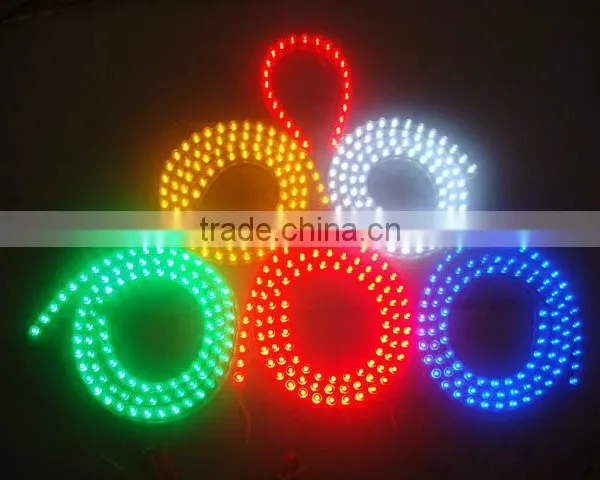

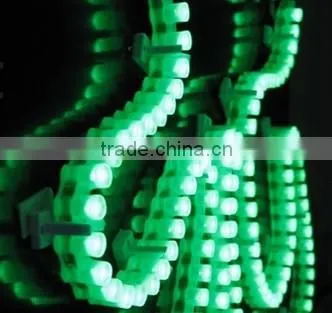

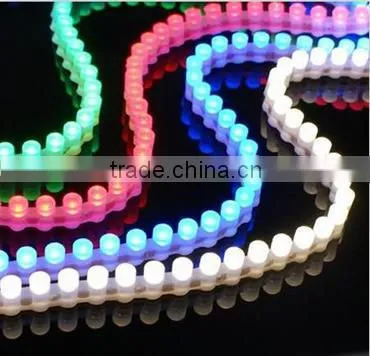

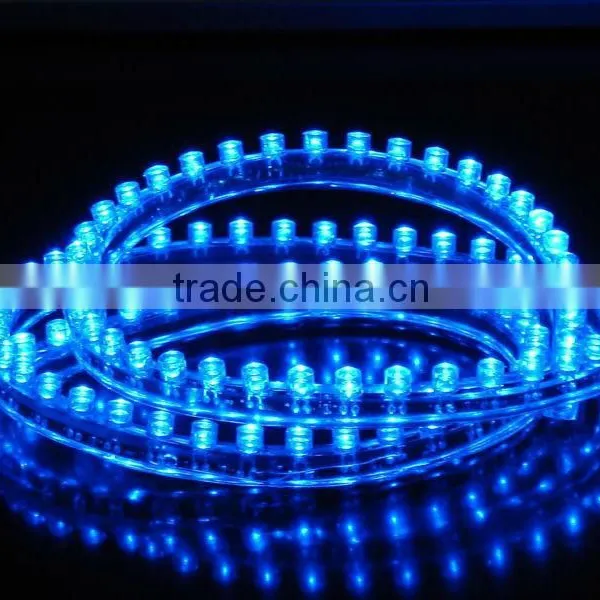

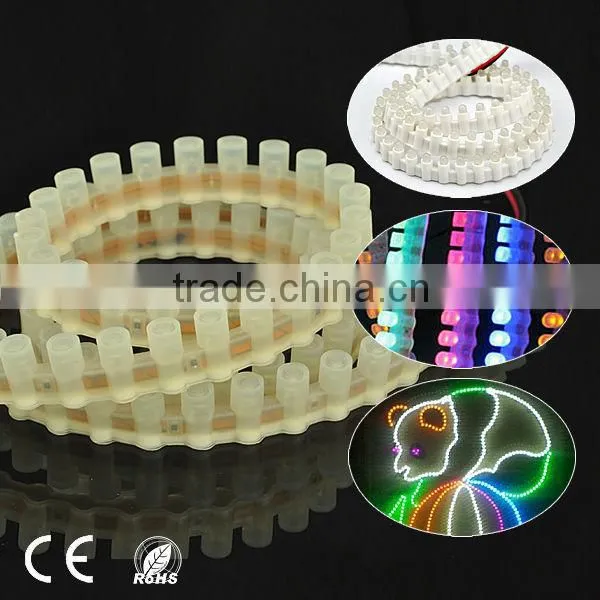

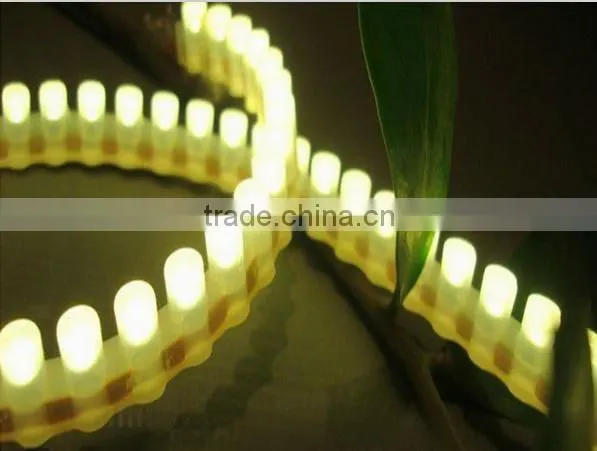

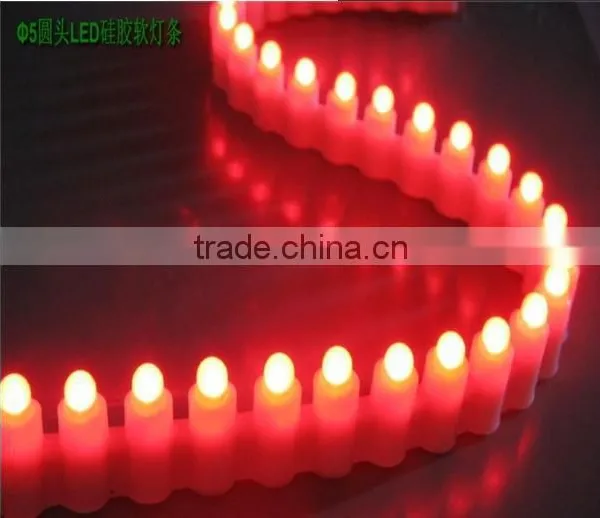

Dip led strip for advertising signs Pictures:
Application:
·1. Architectural lighting for window ,archway ,canopy and corridor.
· 2. Decorative lights for holiday, event, showing, exhibition.
· 3. DIY light for home use.

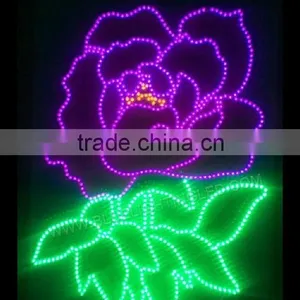

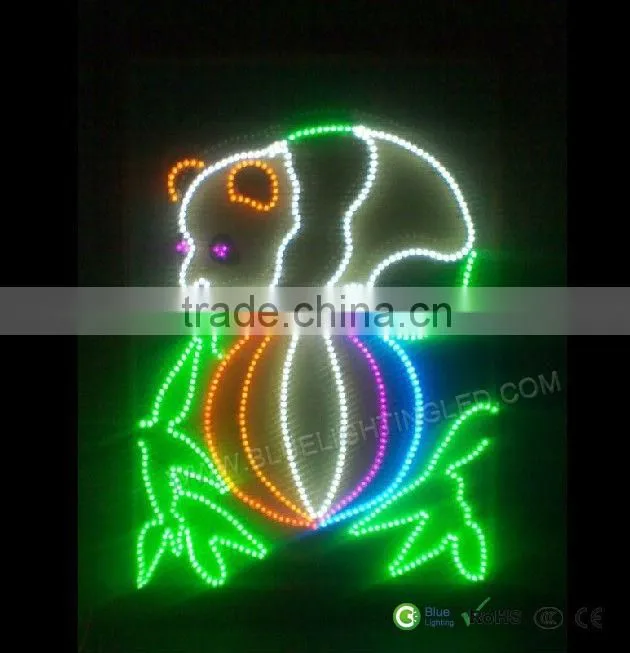

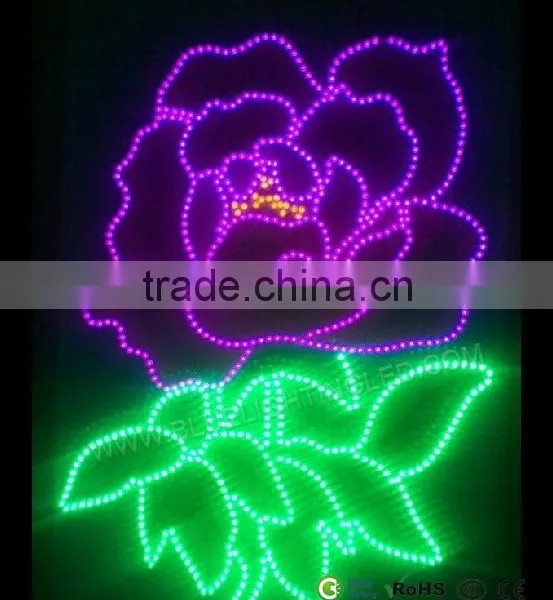

· 4. Backlight or edge lighting for sign

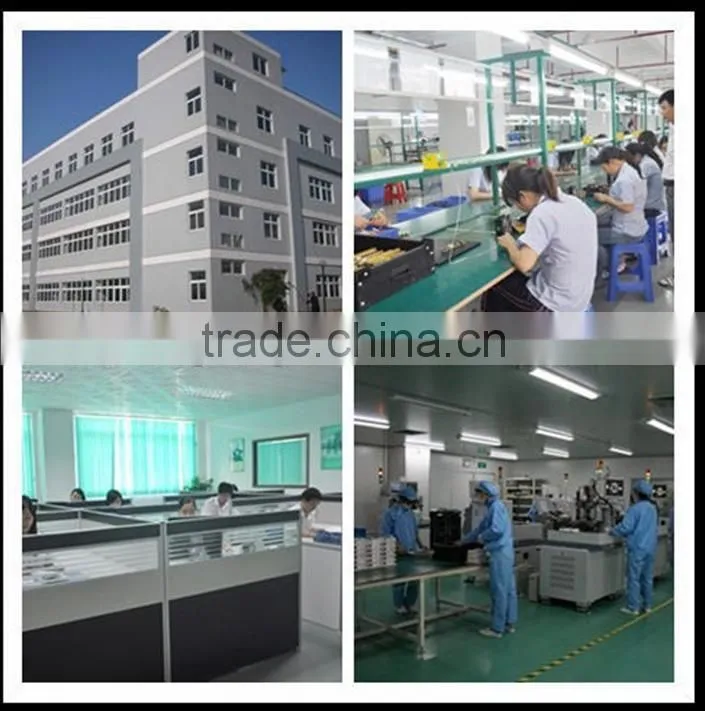

About us:
