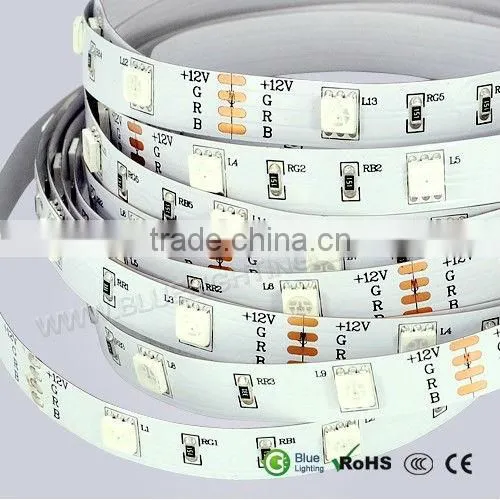

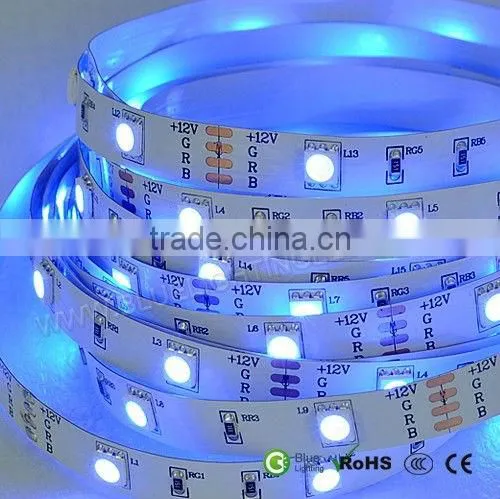

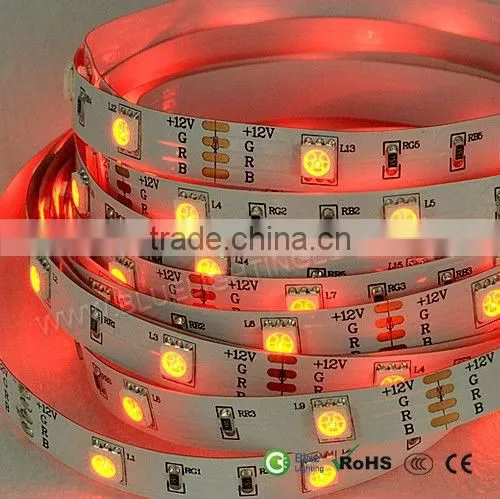

2013 New Design CE.RoHS Waterproof 3528 Led Smd Strip

2013 New Design CE.RoHS Waterproof 3528 Led Smd Strip thumbnail-1
2013 New Design CE.RoHS Waterproof 3528 Led Smd Strip photo-1
US$ 3 - 4 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
led smd strip, SMD 3528
Type:
Flex LED Strips
Input Voltage(V):
12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen Blue Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source led smd strip, SMD 3528
Type Flex LED Strips
Input Voltage(V) 12V/24V
Lamp Power 48W
Lamp Luminous Flux(lm) 1800-2400
Color Temperature(CCT) 3000-7000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color Other, adjustable
Place of Origin Guangdong, China
Brand Name led smd strip
Model Number led smd strip

Specifications

led smd strip
1.Waterproof
2.CE.RoHS certificates
3. 2 years warranty
4.input voltage:12v/24v

2013 new design CE.RoHS waterproof 3528 led smd strip



3528 led smd strip Specification

 Item: BL-FA-3528-X-600

3528 led smd strip Features:
· 1. use the super brightness 3528 SMD LED chip as lighting resources.
· 2.600 PCS LED/5M.
· 3.Size:5000X10MM
· 4.Available Red/Green/Blue/Yellow/Cool White/Warm White;
· 5.Input Voltage :DC 12V or 24V
· 6.Max power :48W
· 7.Can be cut by 3 LED (DC 12V) and 6LED (DC 24V) and connect again by our accessories
· 8. This 3528 led strip can be change into waterproof with type A - dropped silicone glue IP65 ,type B - silicone tube IP67



3528 led smd strip Parameter



Part Number               Color Light Output(±15%)  Flux(±15%) λ(Nm)/(CT:K) View Angel Packing
BL-FA-3528-CW-600 Cool White  600x2000MCD 600x6.0LM 6000-6500K 120° 5m/reel
BL-FA-3528-WW-600 Warm White 600x1800MCD 600x5.0LM 2900-3100K 120° 5m/reel
BL-FA-3528-R-600 Red 600x600MCD 600x2.0LM 620-630nm 120° 5m/reel
BL-FA-3528-G-600 Green 600x1200MCD 600x4.5LM 520-525nm 120° 5m/reel
BL-FA-3528-B-600 Blue 600x400MCD 600x1.8LM 465-470nm 120° 5m/reel
BL-FA-3528-Y-600 Yellow 600x600MCD 600x2.0LM 588-593nm 120° 5m/reel





2013 new design CE.RoHS waterproof 3528 led smd strip



Item Type Light Strips
LED Light Source 3528 led smd strip
Input Voltage(V) 12V/24V
Lamp Power 48w
Lamp Luminous Flux(lm) 1200-3600
Color Temperature(CCT) 3000-7000K
CRI (Ra>) 80
Working Temperature(C) -20-50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, RoHS
Emitting Color adjustable
Place of Origin Guangdong, China (Mainland)
Brand Name Blue Lighting
Model Number BL-FA-3528-X-600
Beam Angle 120
With 3M adhesive tape back easy for installation
LED Light Source Epistar
IP Grade IP65;IP67
Size 5000X10MM

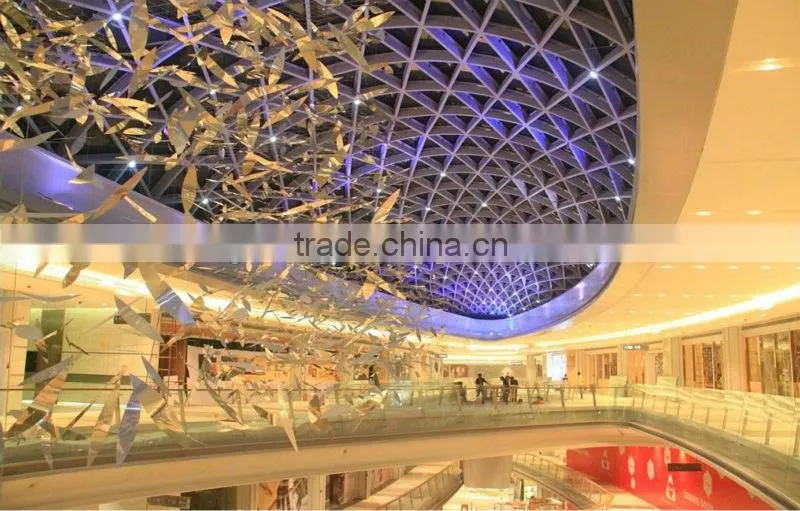

3528 led smd strip Application:


· 1.Cover lighting
· 2.Architectural light for canopy ,corridor ,window ,archway
· 3.Backlight for edge lighting for signage
· 4.DIY lights for home use
· 5.Path and contour marking
· 6.Decorative lights for holiday ,event ,show exhibition
2013 new design CE.RoHS waterproof 3528 led smd strip

3528 led smd strip advantages



1.a comparable price in the peer.

2.High quality series led making the color tempeture more even.

operating with EURO/USA power company, we make our products have a long life.

4.different test machines and processes  making the products more efficiency.

5.answering any questions within 24 hours.


2013 new design CE.RoHS waterproof 3528 led smd strip
2013 new design CE.RoHS waterproof 3528 led smd strip
2013 new design CE.RoHS waterproof 3528 led smd strip

3528 led smd strip Trade terms:



1. Payment term: 30% deposit by T/T L/C or Westernunion; 70% before delivery.

2. Delivery time: 3-5 workings for samples.7-10 workings days for mass production.

3. Shipping terms: FOB Shenzhen, China.

 4. Discounts will be dertermined by quantity.



3528 led smd strip Packaging

2013 new design CE.RoHS waterproof 3528 led smd strip



our factory





 our certificates
2013 new design CE.RoHS waterproof 3528 led smd strip
2013 new design CE.RoHS waterproof 3528 led smd strip
2013 new design CE.RoHS waterproof 3528 led smd strip
2013 new design CE.RoHS waterproof 3528 led smd strip

3528 led smd strip Customer Service:

        1.  Your inquiry  will be replied in 24 hours
        2.  Detailed information about our products

        3.   2 years' wanranty

        4. Protection of your sales area, ideas of design are all your private information;

        5. Distributoership are offered for your unique design and some our current models;



IF you have any questions about our products please do not hesitate to contact us.
