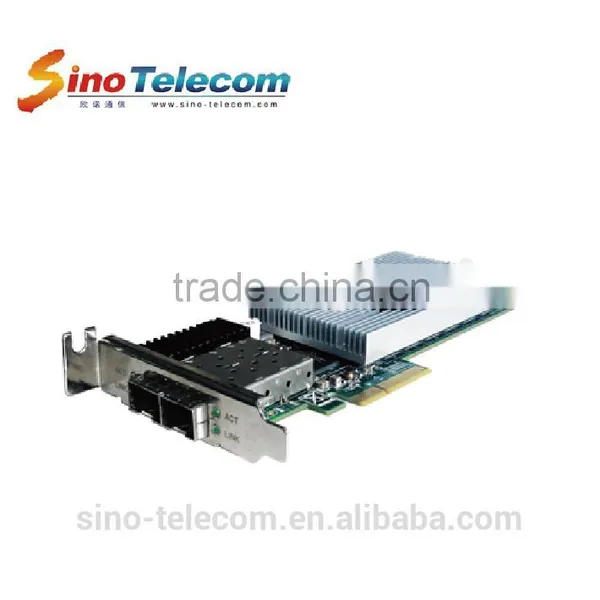

Sino-Telecom 2 Port 10G SFP+ DPI Optical Fiber Network Card
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sino-Telecom
Model Number:
CNIC20G
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sino-Telecom 2 Port 10G SFP+ Optical Fiber Network CardNegotiableMOQ: 1 Piece -
Sino-Telecom Dual-Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter for DPI Acceleration ApplicationNegotiableMOQ: 1 Unit
-
Sino-Telecom Dual-Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter With WAN ConnectivityNegotiableMOQ: 1 Unit
-
Sino-Telecom Dual-Port Fiber 10 Gigabit Ethernet PCI Express Server Network Adapter Intel BasedUS$ 199 - 199MOQ: 10 Pieces
-
Sino-Telecom Quad-Port Fiber 10G Network Adapter With SFP+ ConnectivityUS$ 399 - 399MOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
Sino-Telecom
Model Number
CNIC20G
Overview
Sino-Telecom Ethernet Converged Network Adapter CNIC20G provides multiple DPI acceleration types, including high-performance zero packet loss data capture, data classification and filtering with large-capacity dynamic rules, flow-based application identification and feature filtering, large-capacity string content and feature matching, complete network access log report, host load balancing multi queue distribution etc. It largely lowers the processing pressure of the host in the traditional DPI business model and promotes the overall performance of the system.
Features
- High-performance data packet capture analysis and forwarding.
- Flow filtering of information such as IP address, host and URL etc.
- The identification strategy rules of application protocol can be customized. It supports identification and flow filtering according to characteristics of different protocols.
- It provides the establishment, identification, maintenance and control of connections, and supports a concurrent connection number of more than 16,000,000, with a newly-built connection number of more than 800,000 per second.
- It provides connection-and-application based network information log. Information such as network access and rule matching can be reported to the host in the format of log.
- It supports IPv4 and IPv6. It supports VLAN and MPLS tag identification and removal, as well as supports tunneling protocols such as GTP and GRE etc.
- It provides multi-processor data distribution under flexible load balancing strategy.
Benefits
- High-performance network processing hardware engine ensures the integrity of flow processing by the system. The card-carrier large-capacity cache gurantees the smooth processing as well.
- Flexible filtering rules improves the processing efficiency of the host and reduces the waste of processing resources.
- The connection-based control capability provides a fine flow control mode, which provides effective flow managment capability for the increasingly complex network processing.
- The flow load balancing among multiple processors simplifies the development model of multi-core host processor, as well as gains higher system processing efficiency.
- Flow-based protocol identification and filtering not only simplifies the complex operation of host protocol charateristics identification, but also reduces processing flow, which largely promotes the processing efficiency of DPI application.
- Complete network information log report enables the host to get holographic network access behavior information without capturing and processing data packet.
- Simple programming interface which shortens the development of user software.
Specification
| Dimensions | L*H (170.58*68.51mm) PCIe Card |
| Processor | OCTEON-II CN6645, 10-coure, frequency 1.1 GHZ |
| Serial Interface | 1 * RS232 interface |
| Network Interface | 2 * 10 GE Ethernet port, SFP+ |
| Host Interface | 4 * PCIe 2.0 |
| Power Consumption | <40W |
| Environment | Operating Temperature:0~40℃ |
| Storage Temperature: -5℃~70℃ | |
| Humidity:5%~90% |
Order Information
| CNIC20G | CNIC20G DPI acceleration card with card-carrier DPI application processing software, PCIe 2.0 (x4), 2*10 GE Ethernet port (SFP+), module needs to be ordered according to actual requirements. |
