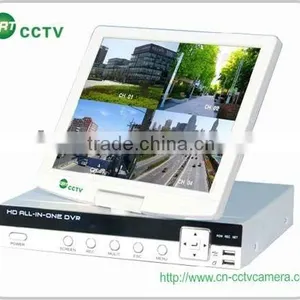

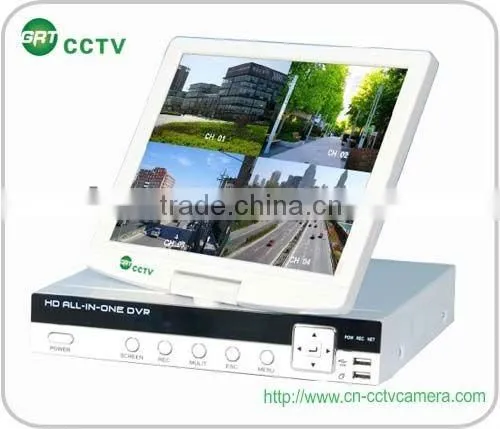

4CH HD All in One DVR With 10.5" LCD (GRT-D6004MH)

US$ 270 - 290 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

GRT

Model Number:

GRT-D6004MH

Shenzhen Wu He Tian Chen Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name GRT

Model Number GRT-D6004MH

Specifications

1. 10.5" LCD all-in-one DVR
2. 1D1+3IF
3. 3G mobile phone surveillance
4. Daul stream
5. OEM accepted, 2 years warranty

4CH ALL-IN-ONE H.264 Standalone DVR Built in 10.5” LCD: GRT-D6004MH

Function Feature:

Creative all-in-one design, screen panel control 270 degrees revolving and 180 degrees turn over.
Integrate 10.5 inch digital LCD, the resolution is 1024X768.
H.264 compression format.
Support mobile phone surveillance
Support languages: English, German, French, Spanish, Italian, Russian, Portuguese…
Video and audio real time recording and playback at the same time.
Support HD VGA output, the resolution is high to 1280X1024.
Searching modes: time / data searching, event searching, recording group searching.
Backup modes: network backup, USB 2.0 backup.
Support RS-485 PTZ control (speed dome camera), and preset positions operation.
Support USB mouse and infrared remote controller operation.
Multiplex operation: Live, record, playback, network can be operated at the same time.

Specification:

Model	GRT-D6004MH	GRT-D6008MH
Operation System	Embedded Linux Operation System
Operation Interface	GUI, support mouse, pane, remote control operation
Video Standard	PAL, NTSC
System Resources	Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.
Video Compression	H.264
Audio Compression	ADPCM
Recording Mode	Manual, Timing, Alarm, Motion detection
Search Mode	By time, event, channel, log
Backup Mode	Network download, USB backup
Video Input	4ch BNC	8ch BNC
Video Output	LCD:10.5 inch (Resolution:1024X768)	CVBS	VGA Resolution: 1280X1024
Audio Input	4ch RCA	8ch RCA
Audio Output	1ch RCA
Voice Talkback	1ch RCA
Live Video Resolution	PAL: 720x576(D1 ); NTSC: 720x480(D1)
Playback Resolution	PAL: 352x288(CIF); NTSC: 352x240(CIF)
Image Control	1-6 level are selectable
Remove Detection	Each channel can set independent detection zones and multilevel sensitivity
Video Display	1/4 multiple display	1/4/8 multiple display
Recording Frame Rate	PAL: 25f/s(Adjustable) NTSC: 30f/s(Adjustable)
Recording Storage	Local HDD, Network
Local Playback	1--8 channel playback at same time
Alarm Input	4ch	4ch
Alarm Output	1ch output
PTZ Control	RS485
HD Interface	1 SATA Ports
Network Interface	RJ45 10M/100M Adaptable Ethernet Connection
Mobile Phone View	Support iPhone, blackberry, Windows Mobile, Android, Symbian
USB Interface	2 USB2.0 High-speed Port
Power Supply	12V 4A
