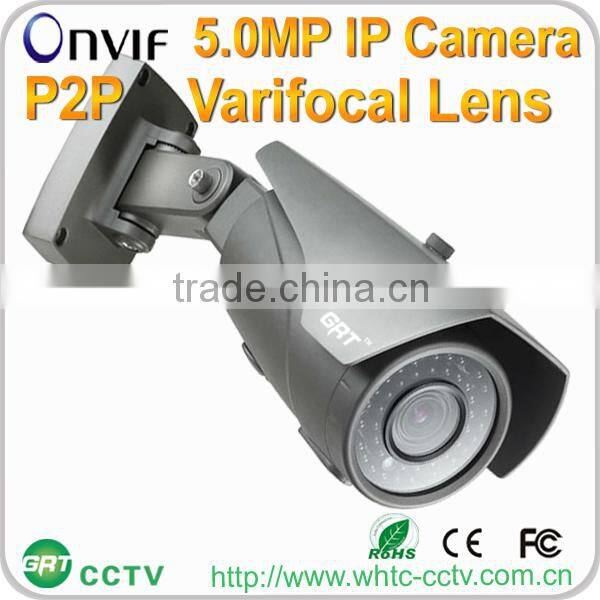

Facotry Price POE P2P 1920p 2.8-12mm varifocal lens support onvif2.0 5MP Waterproof high resolution outdoor ip camera

Model

HW1180KE

HW118AKL

HW2280KE

HW238AKW

HW258AKD

Type

Basic version

Functional

Basic version

D-WDR 120db

Low Lux

Max. Pixels

1.3 Megapixel

1.3 Megapixel

2 Megapixel

3 Megapixel

5 Megapixel

Imaging sensor

1/3″ Aptina CMOS

1/2.5″Aptina CMOS

Processor

TI DaVinci DM365

TI DaVinci DM368

Video coding rate (Adjustable)

1MP@ 25fps/30fps

1MP@ 25fps/30fps

1MP@ 25fps/30fps

1MP@ 25fps/30fps

/

2MP@ 25fps/30fps

2MP@ 25fps/30fps

2MP@ 25fps/30fps

/

/

3MP@ 15fps/20fps

3MP@ 15fps/20fps

/

/

/

5MP@ 10fps

BNC Analog Output

Support 1CH BNC video output

Audio I/O

/

1CH RCA

/

1CH RCA

1CH RCA

Audio Function

G.711 format, 64Kbps

Audio broadcast, recording, two-way talkback

Optional Functions (require extra charges)

POE

POE

POE

POE

POE

/

SD Card Slot

/

SD Card slot

SD Card slot

/

WiFi

/

WiFi

WiFi

Min. Illumination

Color: 0.4Lux, B/W:0.1Lux

Color: 0.6Lux;B/W:0.08Lux

Color: 0.1Lux;B/W:0.01Lux

Color: 0.6Lux;B/W:0.08Lux

Black & White: 0Lux

S/N Ratio

≥ 50dB

Infrared LED

42 IR LEDs,   IR range 30-40M

Lens

Default lens: 4-9mm varifocal lens,   Optional: 2.8-12mm (not suitable for 5MP model)

Shutter Speed

1/60 ~ 1/100,000 second

Noise redection

3DNR

AGC&WB&Exposure

Auto Gain Control, Auto White Balance, Auto Exposure

Interface standard

Onvif V2.0

Network Protocol

PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS;

Stream type

Video Stream  or  Video&Audio Stream (settable)

H.264 Compression format,   CBR / VBR

Dual Strem:  Main Stream 1~8Mbps ,  Sub Stream 0.5~2Mbps (adjustable)

System Maintenance

Upgrade via Network, Power Timer, Manually restore to default

System Management

Password Protection

System authority

Permission level: Administrator / Common User

E-Zoom

Picture can be zoomed by mouse

Alarm Event

Motion Detect, Video Tampering, Network Abnormal

Alarm Responses

Snapshot, Email Alert, Start to Record , FTP Upload

Recording modes

Manual, Schedule, Motion Detect, Network Abnormal

Image Capture

JPEG format (picture definition is same with video)

Network

10M/100M RJ45 self-adaptive

Storage methods

Upload to FTP Server, Built-in Micro SD Card, NVR, NAS, PC Hard disk

Installation type

Ceiling mount / Wall mount

Access methods

PC Software, IE Browser, Mobile Phone APP (IOS, Android)

Bracket

3-axis manual rotatable bracket, cable is hidden

Waterproof rate

IP67

Working temperature

-10°C ~ +60°C

(Built-in heater can be added Only if POE/Wi-Fi/SD Card Slot Modules are all cancelled)

Camera temperature

 25°C~35°C

Working Humidity

< 90%

Power Consumption

DC Female Interface,  DC12V±5%,IR ON :8W

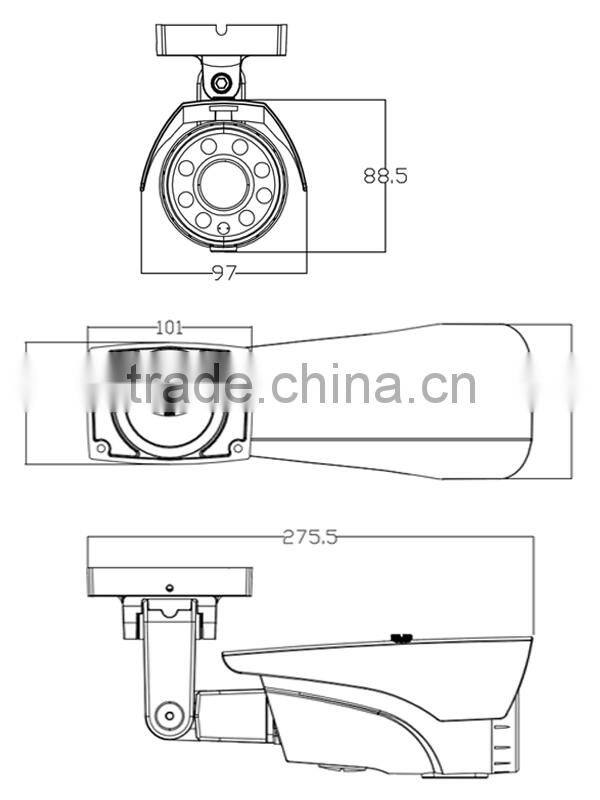

SIZE(mm)

Unit packing:285 x 176 x 138mm   Carton size: 610 x 430 x 400mm(14pcs/ CTN)

Weight(Kg)

Unit Weight: 1.63kg~1.75 kg       Carton Weight: 23.1kg~24.5kg
