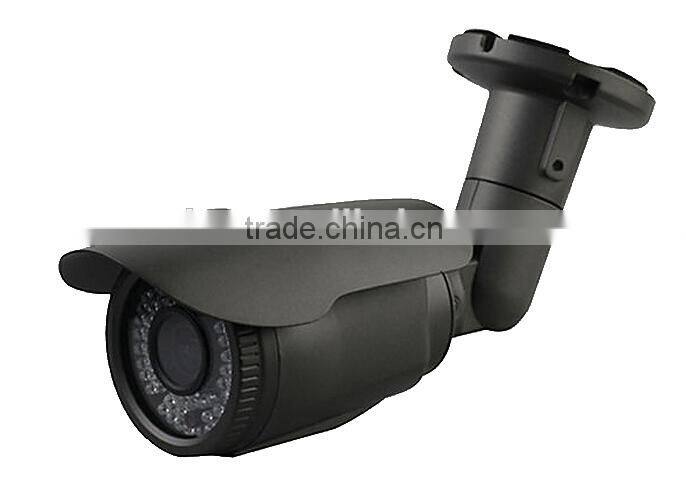

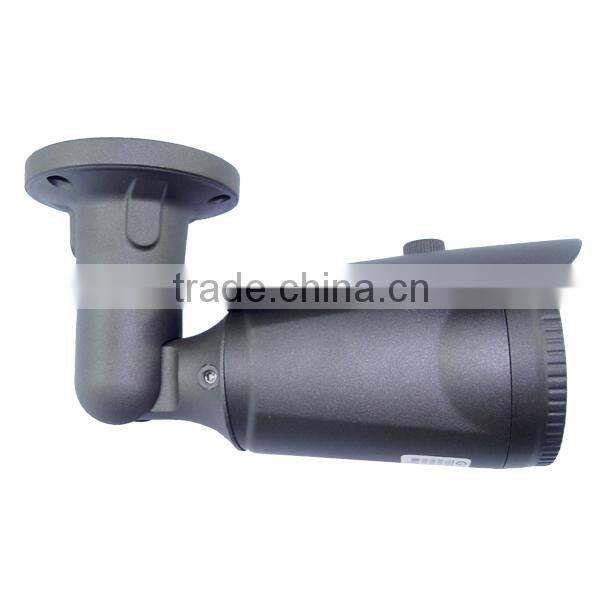

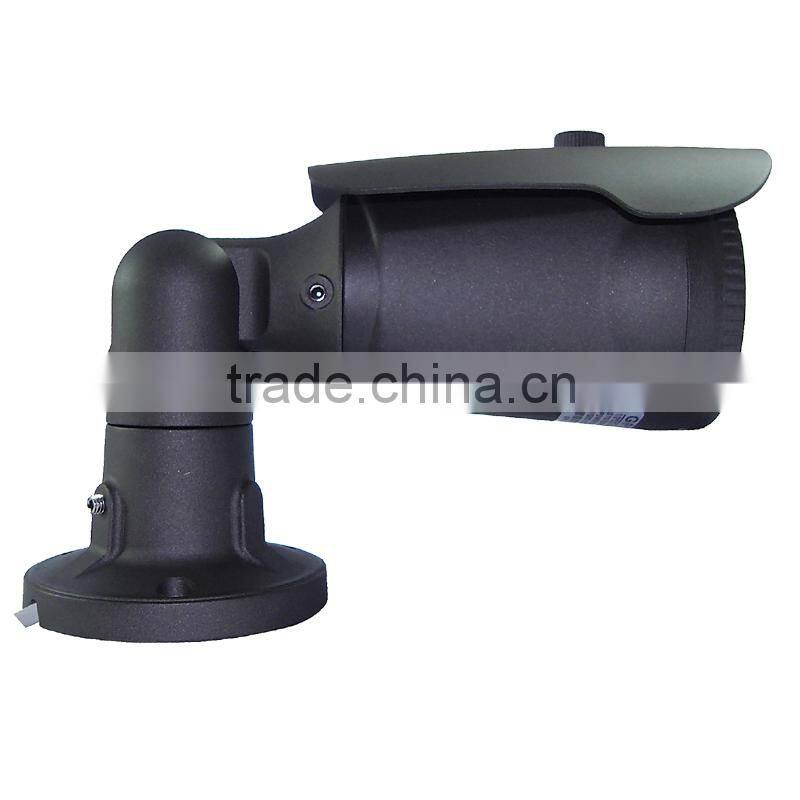

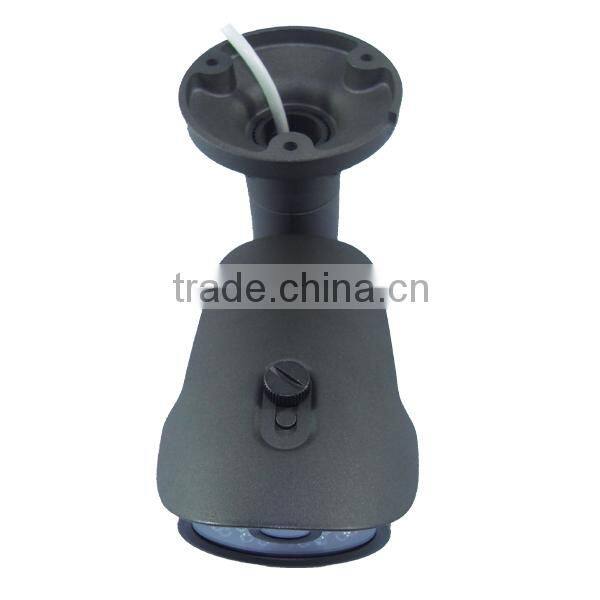

AHD CCTV system Outdoor Waterproof Varifocal 2.8-12mm 1MP IR lens 720p Ahd Bullet Camera

Specifications

AHD CCTV system Outdoor Waterproof Varifocal 2.8-12mm 1MP IR lens 720p Ahd Bullet Camera
1.1/4'' cmos 1.0mp 720p Camera
2.

AHD CCTV system Outdoor Waterproof Varifocal 2.8-12mm 1MP IR lens 720p Ahd Bullet Camera



Features:

1. 1/4" 1.0mp 720P high resolution AHD camera

2. By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;
3. Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not partial color distortion;
4. Analog HD AHD-L@AHD video output;
5. Support for OSD menu options, can be freely adjusted image, function;
6. The transmission distance is 500 meters;
7. Waterproof design IP66, reliability;
8. Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;
9. Easy installation & operation, as same as analog CCTV system
10. More acceptable, lower price than analog surveilance system
11. NO Delay, Real time Display

12. With cable managed bracket

13. UTC OSD Function Optional(Add:$2usd)

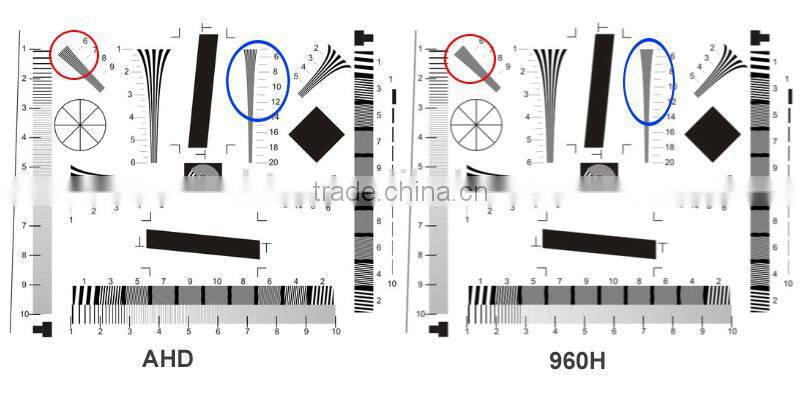

AHD camera and CCD camera 960 test results contrast.





OSD functions (Optional)

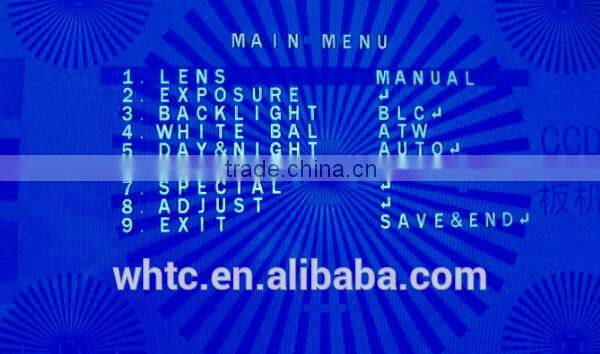

Main Menu Functions

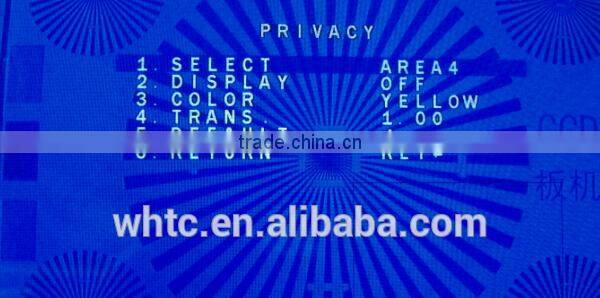

Privacy Functions

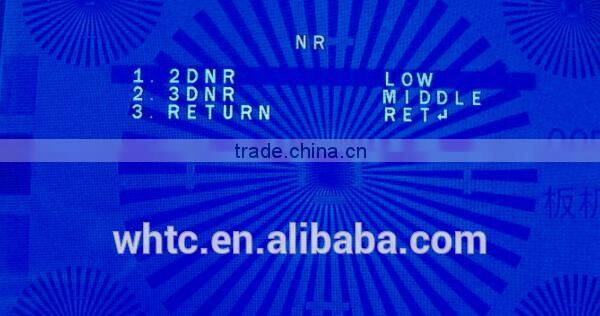

2D/3DNR Functions

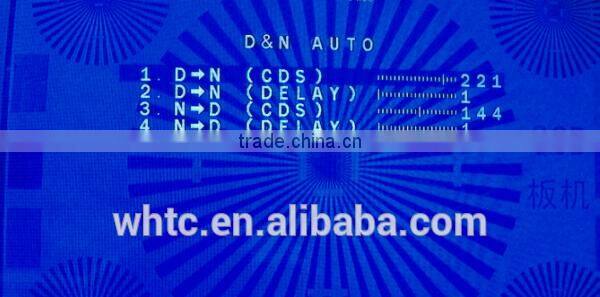

DAY & NIGHT  Functions(Auto, EXT, B/W, COLOR  Mode   )

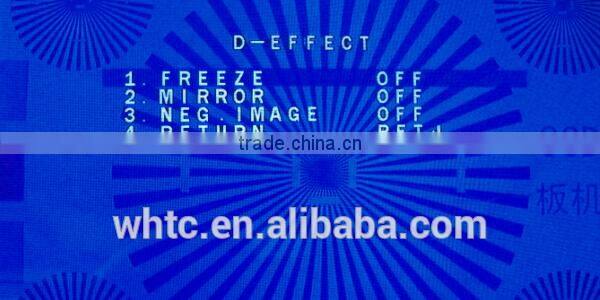

Special Functions

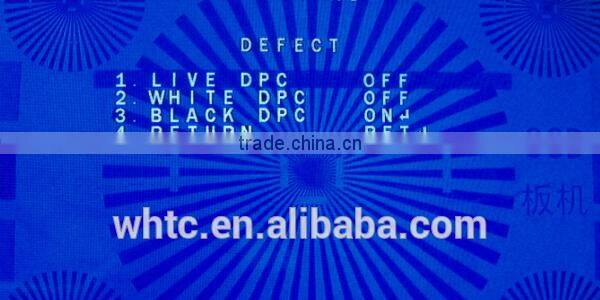

DEFECT Functions





Specifications:



Model	GIZ36L5-AHD1
Camera
Image Sensor	1/4" 1.3Megapixel CMOS   (OV9712+NVP2431H)
Effective Pixels	1280(H)×720(V)
Electronic Shutter	1/50s~1/100,000s   /  1/60~1/100,000s
Video Frame Rate	960,25 fps             /     960,30 fps
Synchronization	Internal
Min. Illumination	0.01Lux/F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length	30M, Smart IR
IR LED	36pcs IR LEDs
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	2D
Lens
Focal length	2.8-12mm 1.3MP Lens(4-9mm optional)
Mount Type	MT12
General
Power Supply	DC12V±10%
Power Consumption	Max 3.5W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66
Dimensions(W×D×H)	70mm x83mm x260mm
Weight	1kg
Others	Default: bracket included











FACTORY REAL LANDSCAPE:









Quality Assurance:

1. Input Quality Control

2. Aging test for main raw material

3. Production in factory

4. 48 hours aging test for finished products

5. QA inspect samples



Our Service:

1. OEM, private labeling and distributorships are accepted

2. Your designated market area, idea of design and all private information are protected

3. Well-trained and experienced staffs will answer all enquiries and questions within 24hours

4. Providing free online technical support

5. 2-years warranty support

Others about quotation:

1. Discounts are accepted based on order quantities, and more discounts will provide if work longer

2. Shipping freight will be quoted to you for compare





Business Terms:

1. MOQ: 1pcs

2. Delivery terms: EX work, FOB, CFR, CIF etc.

3. Delivery time: Sample: within 3 working days

               100~200pcs: 5 working days

               201~800pcs: 10 working days

4. Payment terms: T/T before deliver, L/C, Western Union, MoneyGram
