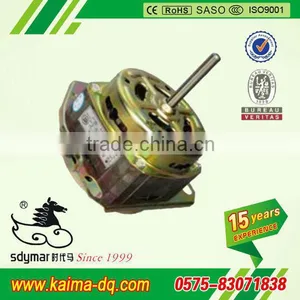

Manufactorer Motor for Washing Machine

Name: Manufactorer Motor for Washing Machine
Brand: kunli
SKU: 123930239
Availability: InStock

US$ 3 - 9 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

kunli

Model Number:

XDT series

Zhejiang Shidaima Electrical Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name kunli

Model Number XDT series

Specifications

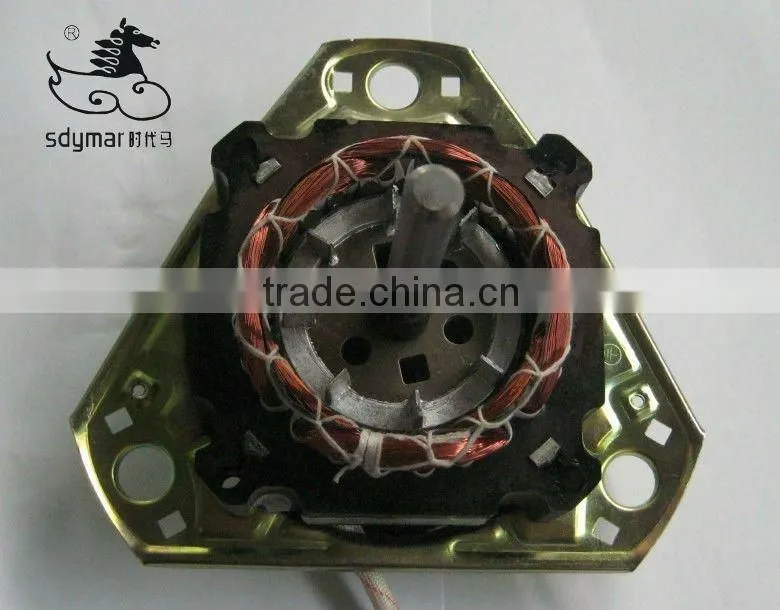

ac washing machine motor
1)220v 50hz 120W 1350rpm
2)copper wire,shaft 12mm
3)delivery in 20 days

WASHING MACHINE MOTOR

Characteristics(Fuly Automatic Washing Machine Motor Series):
Rated Power	60W	70W	90W	100W	120W	135W	150W	180W
Rated Voltage	220-240V
Rated Frequency	50/60Hz
Rated Current	0.7A	0.85A	1.0A	1.05A	1.15A	1.35A	1.45A	1.70A
Capacitance	5uF	7uF	8uF	9uF	10uF	12uF	13uF	14uF
Rated Voltage	110V
Rated Frequency	60Hz
Rated Current	1.40A	1.70A	1.90A	2.10A	2.30A	2.70A	2.90A	3.35A
Capacitance	20uF	28uF	32uF	35uF	40uF	45uF	50uF	58uF
Insulation Grade	B or E Class
Number of Poles	4 Class
Noise	<=48db
Character of Service	S1
Ambient Temperature	0-40°C
Altitude	<=1000m
Specifications	1-Shaft diameter or length can be any as customers request 2-Stator height can be any from 10mm to 50mm. 3-Mounting holes size and distance can be any as customers needs 4-Brackets can be either metal or aluminum. Its height can be changed. 5-Motor rotation direction can be CW or CCW. 6-The motors can be customized according to the different voltages, frequencies and rotation speed.

Delivery Information:
Sample days	Nearby 3-5 days,distance 5-7 days
MOQ	1000pcs/model
Production time	15-30 days(depends on the Qty) after deposit received
Packing details	Fit to exported standard, safe and strong,in cartons or in pallets
	1) in cartons (4pcs/ctn) Qty/20GP: 8600pcs (2100 cartons) about 20tons
	2) in pallets(180pcs/plt) Qty/40GP: 7200pcs (40 pallets) about 20tons
	3) in pallets (216pcs/plt) Qty/40HQ: 8640pcs (40 pallets) about 24tons
Payment terms	L/C at sight or T/T 30% deposit,and balance 70% paid against B/L copy
Payment terms
Shipping	By sea
OEM	Welcome, we can produce very same with your drawing and request
