HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function

HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function thumbnail-1
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function thumbnail-2
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function thumbnail-3
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function thumbnail-4
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function thumbnail-5
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function photo-1
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function photo-2
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function photo-3
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function photo-4
HYDX A1 U/v Portable Two Way Radio Low Price Woki Toki Keypad Function photo-5
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
HYDX
Model Number:
A1
Contact Supplier Request Quote Chat Now
Fujian Juston Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name HYDX
Model Number A1
Type Handheld
Dimensions 112.5*59*37mm
Frequency Range 136-174MHz/400-520MHz/245MHz
Storage Channel 256
Talk Range 5-10km

HYDX A1 u/v portable two way radio low price woki toki with keypad



Product Description



What's the details of HYDX walkie talkie?



Main Functions



  • VFO/MR/CH Working Modes
  • Power PasswordnSetting
  • Dual Display And Standby
  • DTMF Encode/Decode
  • Key Lock Function
  • Lower Power Alert
  • Reverse Frequency/Offset
  • BCLO
  • Scan/Priority Scan
  • Emergency Alert
  • PTT ID/ANI
  • Tail Elimination
  • VOX/IVOX
  • TOT
  • CTCSS 50/DCS 105 Support Non-standard

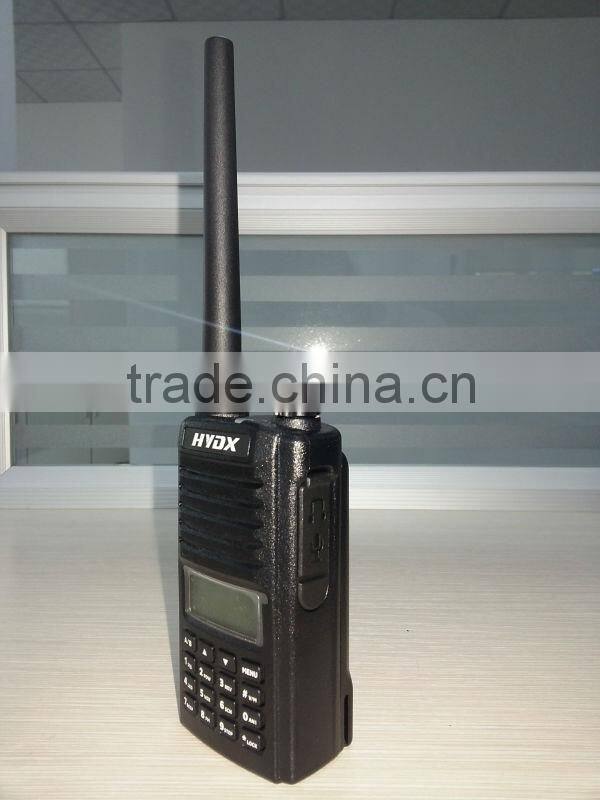

HYDX A1 u/v portable two way radio low price woki toki keypad functionHYDX A1 u/v portable two way radio low price woki toki keypad function



HYDX A1 u/v portable two way radio low price woki toki keypad function



What's the specification of HYDX walkie talkie?





Model NO.

A1

Frequency Range

136-174MHz/400-520MHz/245MHz

Channel

256 Channels

RF Output Power

HI Power≤5W     Low Power≤2W

Channel Spacing

Wide:25Khz   Narrow:12.5Khz

Antenna Impedance

50Ω

Operating Temperature

-30℃~+60℃

Operation Voltage

DC7.4V

Battery Type

1600mAh Li-on

Battery Lifespan (5/5/90)

14 Hours

Dimension (excluding antenna)

112.5(H)*59(W)37(D)mm

Weight (Battery, Antenna Included)

About 230g

Transmitter

Output Power

High≤5W     Low≤2W

Modulation

F3E

Spurious and Harmonics

≤ -65db

FM Noise

≤-45dB

Adjacent Channel Power

 ≤ -65dBm

Audio Distortion

≤5%

Receiver

Sensitivity

≤-123dbm(25k)



Selectivity

-65dB

Inter-modulation

≤-60dB

Block

≥84dB

Rated Output Power

750mW(16Ω)

Rated Audio Distortion

≤5%





What' s the uses of HYDX walkie talkie?



HYDX handheld wireless two-way radio systems, also called walky-talky radios, offer maximum mobility, ruggedness, and all-weather operation to allow the users to be instantly connected at the touch of a button, under most demanding conditions and geographies.


HYDX handheld two-way wireless radio systems are widely used for communication in sectors such as industries, mining, construction, ports, petrochemical refineries, offshore oil rigs and platforms, airline ground operations, public and private security, irrigation projects, infrastructure projects, municipal corporations and public utilities such as electricity boards, gas distribution networks, waste management, emergency services, etc.



Certifications

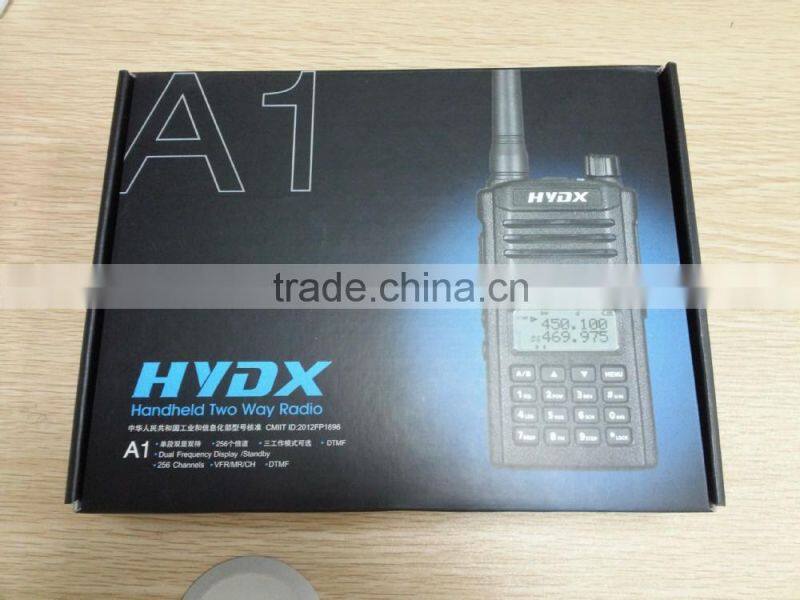

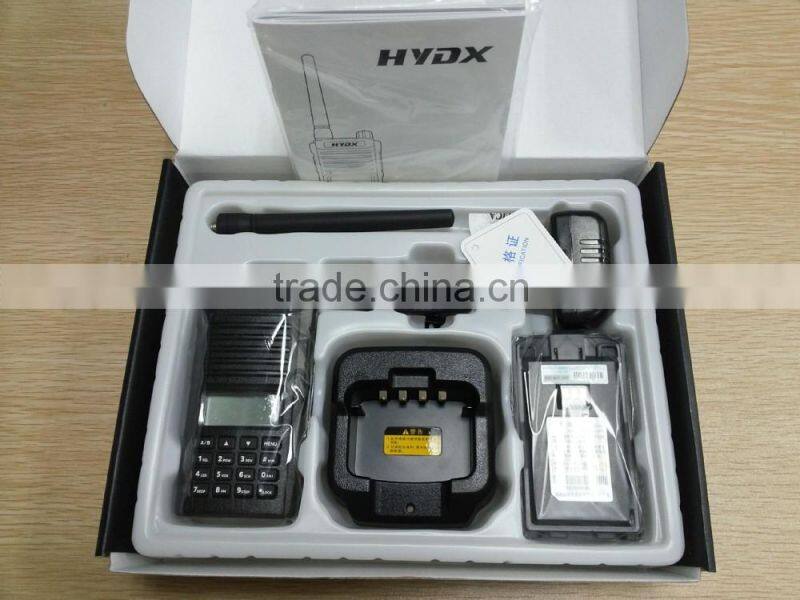

Packaging & Shipping

HYDX A1 Analog walkie talkie uhf/vhf Ham tiny two way radio

Set in a Gift Box, 10 pcs /Carton.        Carton Size: 37*28.5*26.5cm.

HYDX A1 u/v portable two way radio low price woki toki keypad function

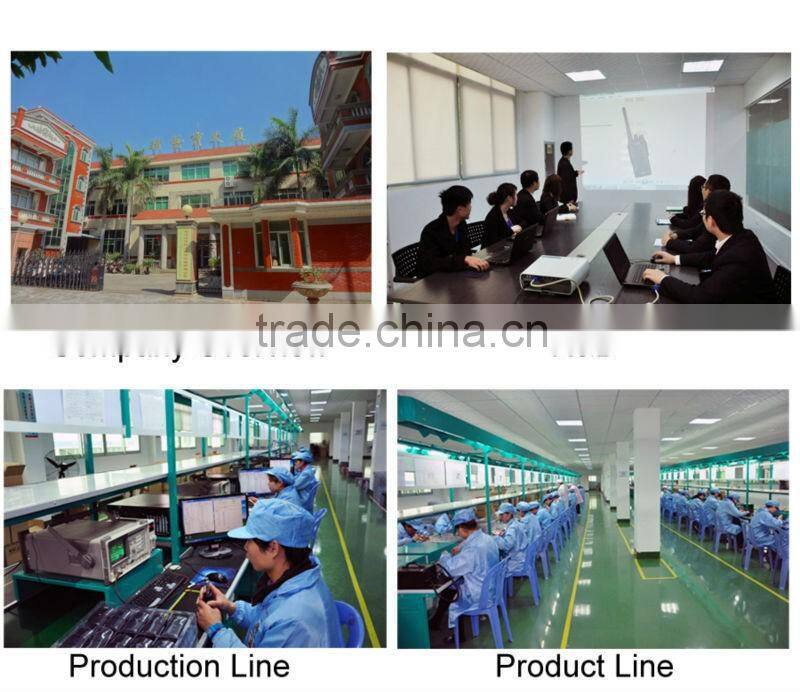

Company Information

Fujian Juston Electronic Equipment Co.,Ltd . belongs to Huayuan telecommunications group, is located in Quanzhou city Licheng District of South Road South Industrial park. Huayuan Electric was founded in 1983, to vigorously support, Juston has been gradually developed into the industry a top ODM and OEM suppliers.

HYDX A1 u/v portable two way radio low price woki toki keypad functionHYDX A1 u/v portable two way radio low price woki toki keypad function

HYDX A1 u/v portable two way radio low price woki toki keypad function



Our Services



1.Reply your inquiry in 24 working hours.

 2.Well trained experienced staff reply all your questions.

 3.Customized design is available, OEM and ODM care welcomed.

 4.Fast delivery to customers all over the world after deposit.

 5.100% QC inspection before shipment.

 6.One year warranty for radios, six month for accessories.

 7.Excellent after-sales service.
