Specifications
Packing Machine1.automatic alarm system;
2.uses the transparent PC plate,
Packing Machine

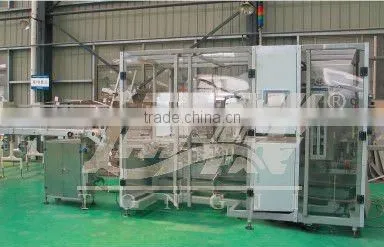

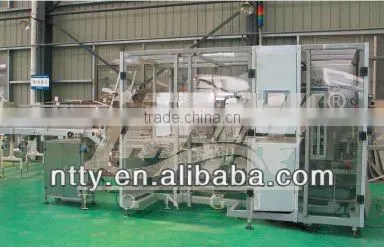

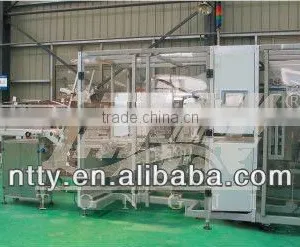

YZX series fully automatic case packer is mainly used in the end of toothpaste, soap, cosmetic, medical, food and shoeshine production lines to complete the automatic case packing and sealing of carton shape products. This machine uses PLC, servomotor, VFD and touch screen etc. advances technology, which can accurately control the movement of machine and it is convenient to operate to meet different requirement.
The products come out from the carton packing machine, and enter the high speed case packer via the conveyer belt. In the case packer, the machine via carry & pull, Z carriage, X impelling, Y impelling & case packing, big-tucker, small-tucker, sealing and 90 degree rotation etc working processes. All the processes are automatic.
Type |
YZX10 |
YZX20 |
Speed(cases/min) |
8-10 |
18-20 |
Power(kW) |
7 |
9 |
Product Size(mm) |
(120-200) x (190--240) x (70--150) |
|
Product Size(mm) |
(310-550) x (160-320) x (220-250) |
|
Sealing |
Tape top and bottom automatic sealing |
|
Air(MPa) |
0.6 |
|
Machine Size(mm) |
5800x2300x2500 |
|
Weight(kg) |
3500 |
|
