UHF DMR Solution Repeater Duplexer Built-in D8000

Name: UHF DMR Solution Repeater Duplexer Built-in D8000
Brand: HYDX
SKU: 123923709

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

HYDX

Model Number:

HYDX-D8000

Fujian Juston Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name HYDX

Model Number HYDX-D8000

Type Vehicle Mouted

Dimensions 133mm*483mm*330mm

Frequency Range 136-174MHz 400-470MHz

Storage Channel 100

Talk Range 25-30KM

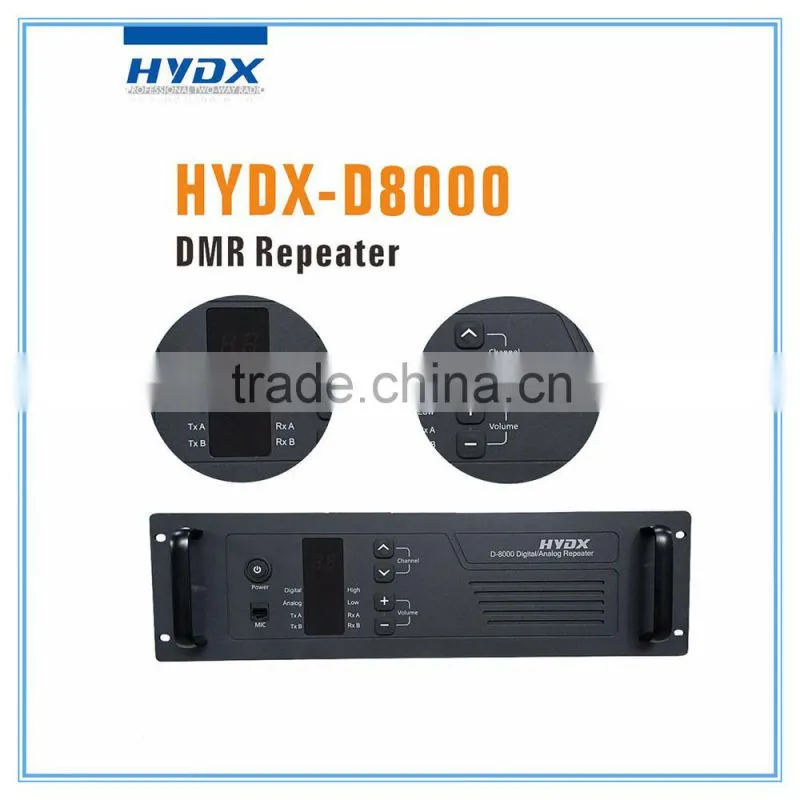

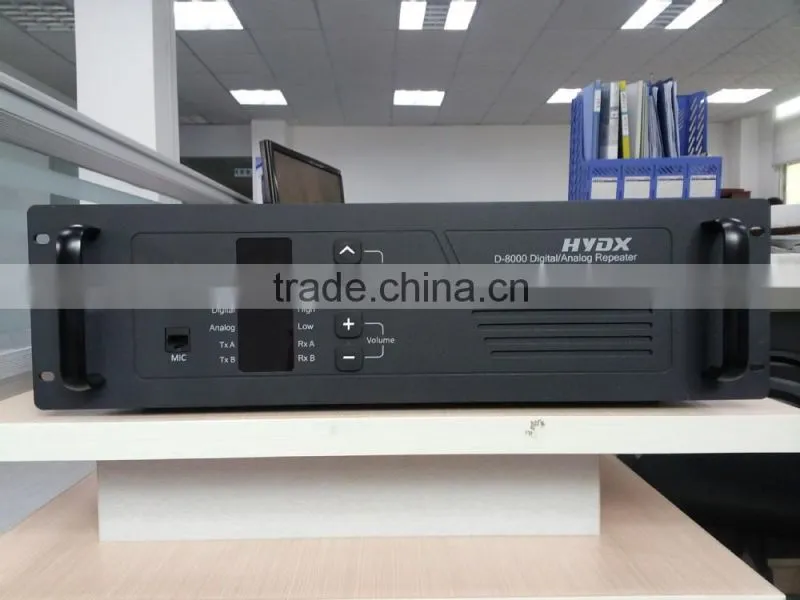

HYDX-D8000 DMR Repeater

Main Features :

* TDMA Mode With 2 Slots

* Integrated Heat Sink and Back Panel Fan

* Smart Detection Digital & Analog Signals in Single Channel

* Sharing A Channel With Multiple Groups

* Brightly LED Indication

* Automatic Voltage and Temperature Protection

* Support Third Party Diplexer Built-in

Genearl Specifications
Frequency Range	400-470MHz/136-174MHz
Channel Capacity	100 Channels
Frequency Stablity	+- 0.5PPM
Operating Temperature	-30 °C-+60 °C
Operating Voltage	220V/110V(50Hz) AC +- 15% 13.8V DC+- 15%
Dimension(HWD)	133483330mm
Weight	16KG
Receiver
Sensitivity	0.25uV @12dB SINAD
Adjacent Channel Selectivity	60dB (12.5KHz)/70dB(25KHz)
Inter-modulation	≥60dB/≥70dB
Spurious Response Anti-interference	≥70dB
Audio Response	+1-3dB
Audio Distortion	<5%
FM Noise	≥45dB(25KHz)/ ≥40dB(12.5KHz)

Transmitter
Output power	25W
Transmission Current	≤11A(13.8V)
Standby Current	≤0.8A(13.8V)
Modulation	11K(F3E)/16K(F3E)
Modulation Distortion	<5%
FM Noise	≥40dB(25KHz)/ ≥35dB(12.5KHz)
Adjacent Channel Power	≥60dB(12.5KHz)/ ≥70dB (25KHz)
DMR Protocol	ETSI-TS102 361 -1-2-3
