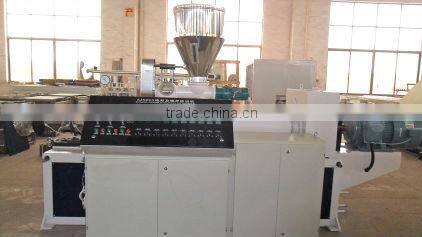

75-110mm PPR Pipe Extruder

Specifications

Producing pipe diameter is 75-110mm. Total machine power is 80KW. Total length is 28m.

The whole production line:

1. 70 single screw high speed extruder,

Name: single-screw extruder           1 set
Model: SJ70/32
Screw Dim.: φ70mm    L-D ratio: 30:1
Screw and machine barrel material: 38CrMoALA
Main motor power: 45KW; inverter-controlled
Heating section:5 section
Heating power:22KW
Cooling method: Air-cooled
Gear box with hard gear side











2. high speed Pipe machine head,

      High speed extruder die head GM110     1set
      Includes: 1 set basic moulds
      Entrance die and core mould (φ75,φ90,φ110)3 specifications,
      pressure class is SDR11 1set/ each one.
      (Other specifications are based on customers' needs)

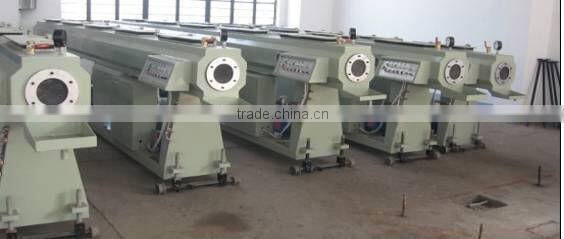

3. vacuum setting machine,



4. Immersion Cooling tank,

5. III Type traction machine,

6. φ110 chadless cutting machine,

7. piling bin.





Producing pipe diameter is φ75-φ110. Total machine power is 80KW. Total length is 28m.



The machine barrel of the extruder adopt grooved barrel in the feed zone. It obviously improve the capacity. For making sure the plasticize quality, the screw adopt the separated screw. In that case, the fused material pass the backlash of the screw thread pair to liquid phase zone from the soild material. We make sure that only the fused material can pass the backlash of the screw thread pair. So it also ensure only fused materail can get into the head of screw. Meanwhile, there is exhaust valve pin to make the materail uniform and Obviously reduce the Radial difference in temperature, Lower the material temperature.

The machine head adopt spiral head, it can improve the pipe  strength

The Vacuum tank and spray tank material is Stainless steel and engineering plastic
