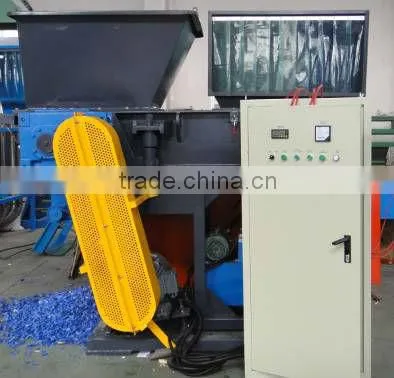

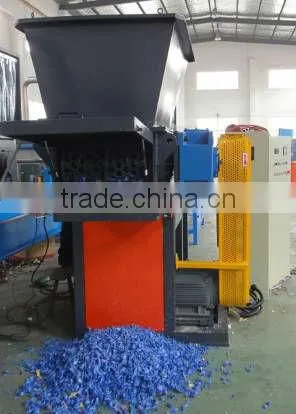

Help CenterSingle Shaft Shredder
Related Products
Specifications
The Single-Shaft Shredders are new designed for crushing the film in rolls or in bales, first-coming extrusion material.The Single-Shaft Shredders are new designed especially for crushing the film in rolls or in bales, first-coming extrusion materials, large and hard blocks and lumps, pipes after cutting and so on. The shredders have the characteristics of strong crushing ability and contrarotation with the structure of close-lined rotary knives in single direction. The motor can be protected effectively with the contrarotation characteristic.
Features of Single-shaft shredder:
1. Movable blade, dismounting convenience, easy for cleaning and maintenance.
2. Each rotary blade has four cutting edge, can be used again after rotating 90° .
3. Hvaing reducer with spindle, smooth operation, low noise, large rotating torque.
4. PLC control system, positive and negative turn automatically, running machine more safety.
5. Backfire treament after weldinging tank, dissolve weld stress.
6. Blade position apply precision machining, making sure the same space between each rotary knife and fixed knife.
7. Rotary blade position adopts embedded with high-strength screw connected to blade spindle, can prevent the phenomenon that welding blade drop by long-term
Remark:
*Hydraulic pusher, an independent power system, the structure solid, smooth running, a big chunk of the large
bundle of plastic can tear up, feed easily, large capacity.
*Spindle from the gear box drive, smooth running, low noise, large torque
*PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment,
safe and reliable running of the machine

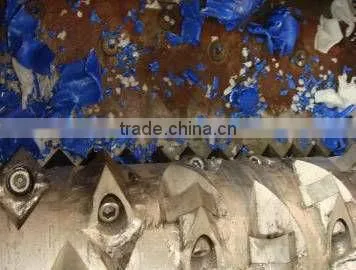

*Blade material: Cr12MoV (Japanese Brand: SKD-11, U.S. Brand: D2); knife with "V" shaped
installation, so that the blade material cutting across the work evenly, reducing energy consumption,
reduce noise; each of the knife has four cutting edges,
wear and tear can be rotated 90 ° after the continued use; each to have two cutting edges set, wear can be
rotated 180 ° after the continued use; rotor blade removable, easy to clean, maintain, maintenance.
*Electrical control panel: Programmable controller, (PLC: SIEMENS) PLC automatic control system,
counter-rotating and stop automatically are realizable; SIEMENS AC contactor; The working state of
every part of the machinery will be show on the panel. There is emergency stop switch on the panel.
| MODEL | SS40120(500) | SS40125(600) | SS40150(800) | SS401000(1000) | SS401200(1200) |
| MOTOR POWER | 15KW | 22KW | 37.5KW | 45KW | 55KW |
| ROTARY BLADES QTY. | 20PCS | 26PCS | 34PCS | 42PCS | 54PCS |
| FIXED BLADES QTY. | 1PCS | 2PCS | 4PCS | 2PCS | 4PCS |
| BLADES MATERIAL | SKD-II | ||||
| MAIN SHAFT SPEED | 80R/MIN | 80R/MIN | 80R/MIN | 80R/MIN | 80R/MIN |
| FEEDING SIZE | 500*780MM | 620*1160MM | 810*1360MM | 1010*1360MM | 1210* 1360MM |
| OUTPUT (KGS/HOUR) | 200-400 | 300-500 | 400-750 | 700-800 | 800-1200kg/h |
| DEMENSION (MM) | 1800*1215*1850 | 1800*1215*1850 | 2700*1700*2350 | 2700*2000*2850 | 2700*2300*3250 |
| WEIGHT (KGS) | 17000 | 2000 | 3200 | 3800 | 4500 |
