Optical Fiber Arc Fujikura Fusion Splicing Machine FSM 60S

Optical Fiber Arc fujikura fusion splicing machine FSM 60S

Description:

The FSM-60S Fusion Splicer sets the standard for core alignment fusion splicing.

The new rugged construction adds improved reliability by resisting shock, dust, and rain, and can withstand a 30" drop test.

The FSM-60S splices a fiber in 9 seconds and heats a 60mm splice sleeve in 30 seconds, for a total cycle time of only 39 seconds.

New features:

Automatic tube heater operation, user-selectable clamping method (sheath clamp or fiber holder system), Automated monitor image orientation, and battery charge capability during splicer operation provide the end user a productivity tool they can count on.

New software included provides the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.

Model: FSM-60S Fusion Splicer for Single fiber

Producing Area: Made in Japan

Key Features:

1, Splice time 9 seconds(Typical)

2, Dual monitor position with automatic image orientation

3, Automatic arc calibration and fiber identification

4, User-selectable fiber clamping method ¨C sheath clamp or fiber holders

5, Auto-start tube heater feature

6, Color LCD display with anti-reflective coating for excellentvisibility in bright sunlight

7, Simultaneous battery charge and splicer operation

8, Long life battery (up to 160 splice/heat cycles per charge)

9, Detachable work table incorporated into the transit case

10, Data and video download software and splicer upgrade software included;

11, Software upgrades through PC application via the internet.

12, Green friendly ¨C RoHS & WEEE compliant

FSM-60S Fujikura Fusion Splicer

Fujikura Ribbon Fiber Arc Fusion Splicer, FMS-60R

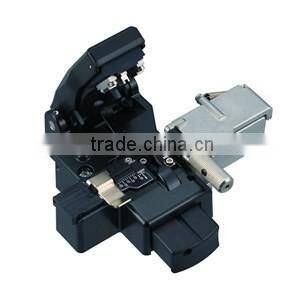

Fujikura High Precision Cleaver, CT-06
