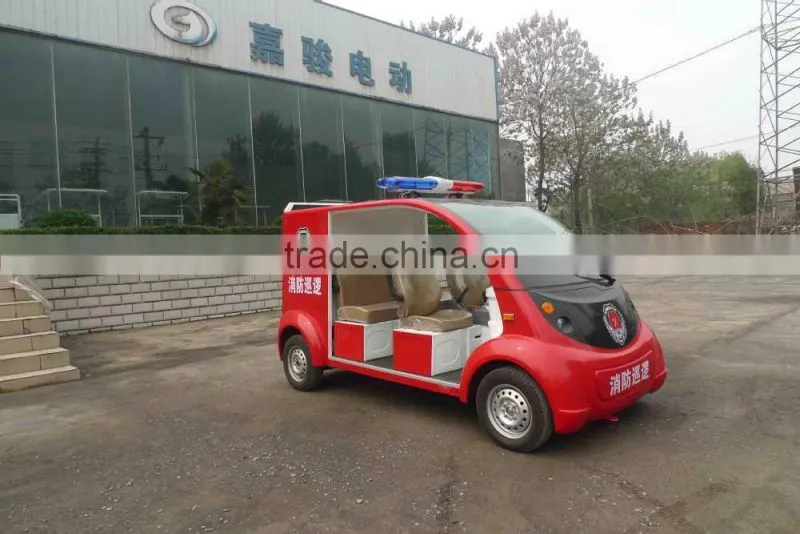

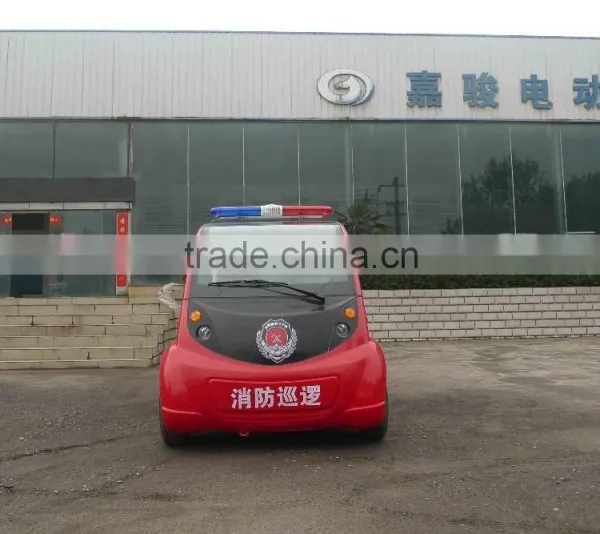

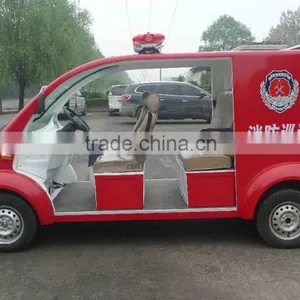

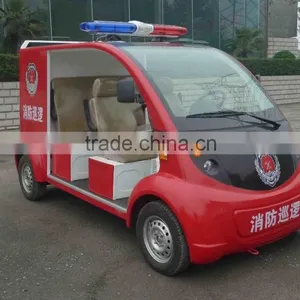

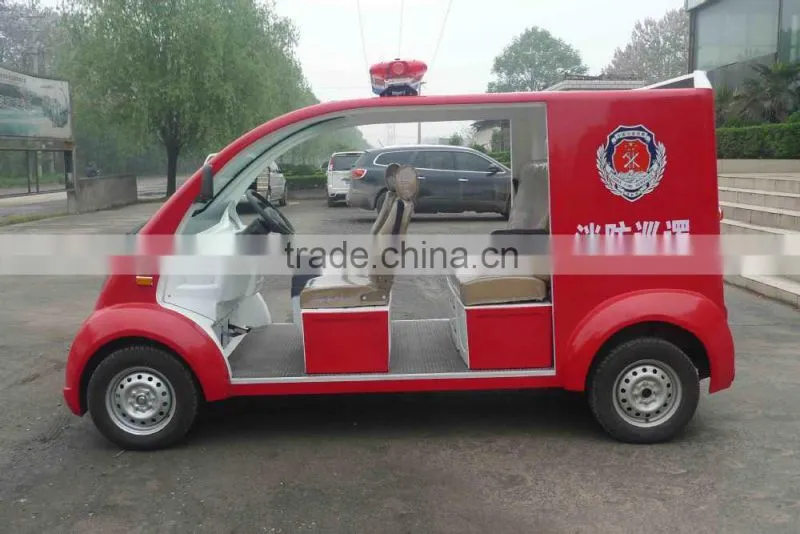

Help CenterDurable, Acidproof Fire Truck for Sale With Verified Quality!! Your Best Choice!!
Related Products
-
China Hot Sale , Elegant Appearance, Intelligent Control Mobile Food Cart With Double Circuit Hydraulic BrakingUS$ 10,733 - 18,433MOQ: 1 Unit -
High Cost-performance Ratio, Easy-to-operate Mobile Dining Car With Special ChassisUS$ 10,733 - 18,433MOQ: 1 Unit
-
Excellent Quality Electric Sightseeing Car!!! Anti-skidding Black Rubber FlooringUS$ 10,733 - 18,433MOQ: 1 Unit
-
China Sightseeing Car!!! Wearproof and Anti-skidding Black Rubber FlooringUS$ 10,733 - 18,433MOQ: 1 Unit
-
China Cheap Price Electric Sightseeing Car!!! Wearproof and Anti-skidding Black Rubber FlooringUS$ 10,733 - 18,433MOQ: 1 Unit
Specifications
fire truck for sale1. CE certificate
2. Superior material
3. HIgh technologies involved
4. Full facilities
Mobile Dining Car
Main technical parameters:

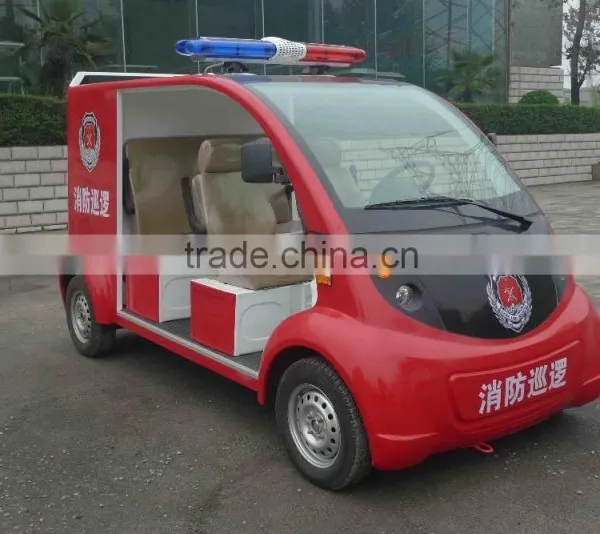

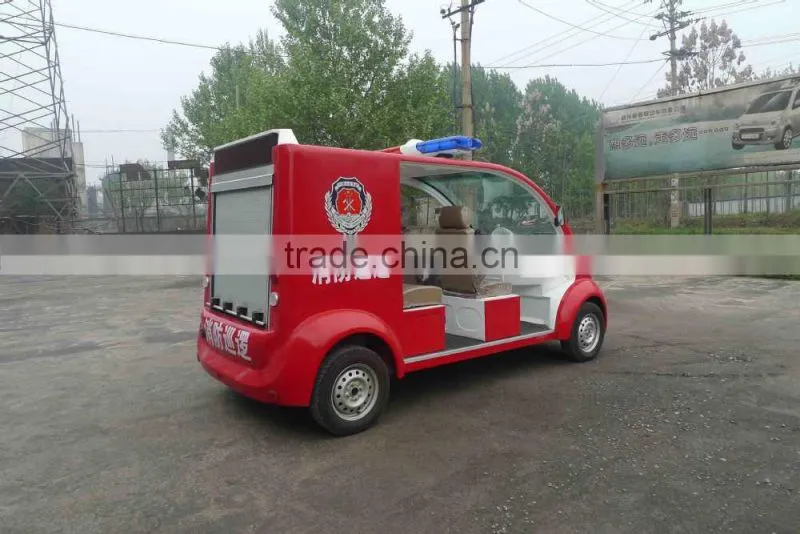

| Model# | ZJ6053XF( Fire truck) |
| Main products | Patrol car, patrol bus, sightseeing car & bus, dining car(buffet car), short-range free shuttle bus/car, pick-up truck etc....... |
| Applications | Police security patrolling and moveable office, hospital free shuttle bus, tourist sightseeing, street moveable dining tool, golf course etc........ |
| Rated passengers | 5 |
| External Size(L*W*H)mm | 3560×1640×1980(customization) |
| Min.distance to floor(mm) | 150 |
| Max. driving range(km) | 80 |
| Max.speed(km/h) | 30 |
| Braking length | ≤4.5m |
| Max.gradeability(full load) | 20% |
| Min. turning radius(m) | 4.6 |
| Weight of truck | 1060kg |
| Rated load weight | 400kg |
| Company | Zhengzhou Ailence Machinery Co.,Ltd |
| No of Employees | 100-500 |
| Address | Jinyuan Park, the cross of Jianshe Road & Qinlin Road, Zhengzhou City, Henan Province. |
| Contact | Sally Zheng |
| Phone: | 86-371-67103223 |
| Delivery term | EXW, FOB, CFR, CIF. |
| Payment term | TT, L/C. |
Chassis Composition
1. Chassis:the specialized chassis for the patrol car.
2.Front axle: Independent suspension, spiral spring.
3. Rear axle: Complete rear axle with main speed-reducer, differential mechanism, spring suspended steel panel and cylindrical hydraulic shock-absorber.
4. Braking system: front and back drum-type double circuit hydraulic braking, manual braking mechanism.
5. Wheels:165/70R13 Vacuum high-loaded radial ply tire.
6. Speed control system: infinitely variable speeds.
Electrical System
1. Electrical control: 48v Intelligent controlling device.
2. Battery: Plumbic acid power battery of tube type---8pcs of 48v
3. Motor: Series machine of 4KW
4. Battery Charger: 48V Intelligent numerical control impulse type.
5. Instruments: Liquid crystal combined meters and switches.
6. Lighting and signals: 12V lighting system, headlamp, front and back steering lamps, combined rear lamp, klaxon and back-up alarm.
7. Stereo system: multi-function radio, loudspeaker.
8. Heating system:Defrosting and heating combined together, PTC ceramic heater, big calorific value, stable power, long life-span, high reliability, automatic thermostat.
9. Police facilities: 48V, big and long LED alarm lamp, alertor of DC48V and 7 kinds of sounds and 2 rows of lamps controller.
10.Charging time: 6-8hours( discharge rate: 80%)
Inside and outside decoration
1. Body: One-time punch forming by the metal numerical control molds.
2. Doors: Top grade aluminum alloy, dismountable to allow ventilation and heat dissipation in summer.
2. Front windshield: bilayer laminated glass of high strength
3. Instrument desk: Steel sheet stamped high-accuracy instrument desk of tempering glass.
4. Seats: Sponge and leather
5. Floor: wearproof and anti-skidding black rubber plastic flooring.
6. Rearview mirror: two at right and left.
7. Electron screening: 960*160 single color screen at back.
Welcome your enquiry, your success is our ultimate goal!
