Built-in Wifi Wireless Rear View Reverse Camera HD 7" Monitor for Truck Trailer No Interference Guarantee
*WIFI transmission, good data security
*Wireless, easy installation within minutes
*One second startup, no signal delay, safer driving
*No interference, good performance among other wireless devices.
Wifi Video Camera
| TV System | NTSC/PAL(Factory Fixed) |
| Transfer Range | 120m(open side) |
| Startup Time | About one second |
| Transfer Resolution | 640x480(VGA) up to 30fps |
| Video Compression | MJPEG |
| RF Frequency | 2.4GHz ISM Band |
| Wireless Standard | WiFi 802.11b/g/n |
| Data Transfer Rate | 1,2,5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps |
| Modulation Method | BPSK/QPSK/16-QAM/64-QAM |
| Spread Spectrum | IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) |
| IEEE 802.11g/n: OFDM(Orthogonal Frequency Division Multiplexing) | |
| Video Input/Output | 1Vp-p Composite |
| Operating Current | 120mA@w/o IR; Max 300mA@w/i IR on; |
| Connectors | TBD, Ext ANT |
| Transimitting Power | 18dBm@11b, 15dBm@11g, 13dBm@11n. |
| Sensor image | 1/4" CMOS ASX340 |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~ +85℃ |
| Operating Humidity | 10% ~ 90%Rh |
| Input Voltage | DC 9V-36V |

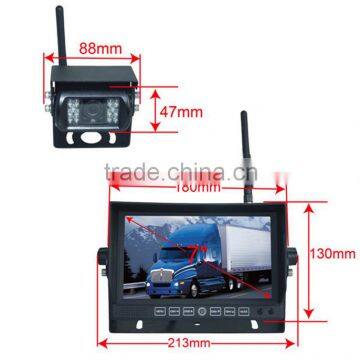

| Dimensions | W:40mm, H:6mm, L:70mm |
7inch Wifi Monitor
| Screen Size | 7.0 inch digital TFT panel |
| Display Resolution | 800*R.G.B*480 |
| Display Mode | 16:9 |
| Contrast | 350:1 |
| Multi languages | English,Chinese |
| TV System | NTSC/PAL(Factory Fixed) |
| Transfer Range | 120m(open side) |
| Startup Time | About one second |
| Transfer Resolution | 640x480(VGA) up to 30fps |
| Video Compression | MJPEG |
| RF Frequency | 2.4GHz ISM Band |
| Wireless Standard | WiFi 802.11b/g/n |
| Data Transfer Rate | 1,2,5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps |
| Sensitivity | 11Mbps -83dBm@8%, 54Mbps -73dBm@10%, 130Mbps -64dBm@10% |
| Modulation Method | BPSK/QPSK/16-QAM/64-QAM |
| Spread Spectrum | IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) |
| IEEE 802.11g/n: OFDM(Orthogonal Frequency Division Multiplexing) | |
| Video Input/Output | 1Vp-p Composite |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~ +85℃ |
| Operating Humidity | 10% ~ 90%Rh |
| Input Voltage | DC 6V-24V |
| Operating Current | 110mA |
| Dimensions | W:120mm, H:25mm, L:180mm. |
1) Efficient after-sales service within 24 hours;
2) OEM&ODM
3) Protection of your design & product info;
4) CE, FCC
Shenzhen Windrunner Technology Co. Ltd. is a pioneer in Wifi Wireless Vehicle backup system with DVR, GPS Navigation, Radar detector, Bluetooth etc.
"Fashion, cutting-edge, practical and convenient" is our goal.
We are fortunate to develop a series of “shocking the industry” products, such as wifi wireless car DVR rearview mirror (with GPS navigation), wireless reverse monitor with built-in wifi etc.
Your satisfaction inspires us to continue our innovation in the Wifi Wireless Car Cameras, and we will continue to launch more surprising products for you!
1.What about the warranty?
12 months.
2.How to use the car rearview mirror?
This is innovative product based on WIFI transmission; wire free, very easy to install and operate.
Please follow the instruction & maintenance guidelines.
3.What's the payment and the delivery time?
- Mastercard, TT, Paypal, Western Union, Escrow, LC are acceptable;
- Normally, a lead time of 3-7 business days (based on quantity); DHL, Fedex, UPS, TNT.
