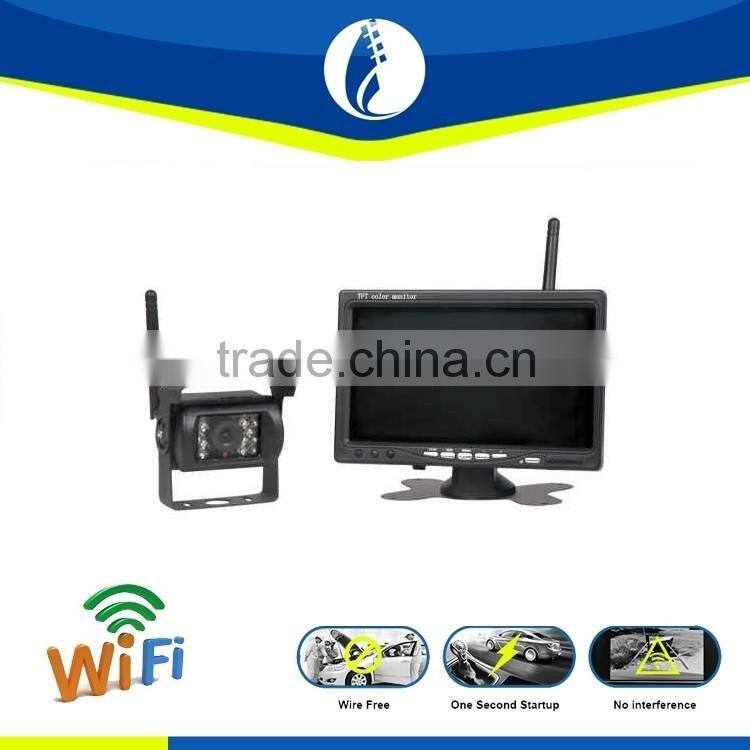

no interference 7 inch truck trailer Wireless wifi transceiver Backup Camera Vehicle Reverse kit
why choose wireless rearview backup camera monitor?
*WIFI transmission, good data security
*Wire free, wireless, easily install it by yourself,save installation cost and fee
*One second startup, no delay, fast response, provide better protection for your driving life
*No interference, never be bothered by other wireless equipment.
*Many kinds of professional qualitied camera lens for options.
| TV System | NTSC/PAL(Factory Fixed) |
| Transfer Range | 120m(open side) |
| Startup Time | About one second |
| Transfer Resolution | 640x480(VGA) up to 30fps |
| Video Compression | MJPEG |
| RF Frequency | 2.4GHz ISM Band |
| Wireless Standard | WiFi 802.11b/g/n |
| Data Transfer Rate | 1,2,5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps |
| Modulation Method | BPSK/QPSK/16-QAM/64-QAM |
| Spread Spectrum | IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) |
| IEEE 802.11g/n: OFDM(Orthogonal Frequency Division Multiplexing) | |
| Video Input/Output | 1Vp-p Composite |
| Operating Current | 120mA@w/o IR; Max 300mA@w/i IR on; |
| Connectors | TBD, Ext ANT |
| Transimitting Power | 18dBm@11b, 15dBm@11g, 13dBm@11n. |
| Sensor image | 1/4" CMOS ASX340 |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~ +85℃ |
| Operating Humidity | 10% ~ 90%Rh |
| Input Voltage | DC 9V-36V |
| Dimensions | W:40mm, H:6mm, L:70mm |
| Screen Size | 7.0 inch digital TFT panel |
| Display Resolution | 800*R.G.B*480 |
| Display Mode | 16:9 |
| Contrast | 350:1 |
| Multi languages | English,Chinese |
| TV System | NTSC/PAL(Factory Fixed) |
| Transfer Range | 120m(open side) |
| Startup Time | About one second |
| Transfer Resolution | 640x480(VGA) up to 30fps |
| Video Compression | MJPEG |
| RF Frequency | 2.4GHz ISM Band |
| Wireless Standard | WiFi 802.11b/g/n |
| Data Transfer Rate | 1,2,5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps |
| Sensitivity | 11Mbps -83dBm@8%, 54Mbps -73dBm@10%, 130Mbps -64dBm@10% |
| Modulation Method | BPSK/QPSK/16-QAM/64-QAM |
| Spread Spectrum | IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) |
| IEEE 802.11g/n: OFDM(Orthogonal Frequency Division Multiplexing) | |
| Video Input/Output | 1Vp-p Composite |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~ +85℃ |
| Operating Humidity | 10% ~ 90%Rh |
| Input Voltage | DC 6V-24V |
| Operating Current | 110mA |
| Dimensions | W:120mm, H:25mm, L:180mm. |
Many kinds of camera lens for options:
1) Efficient after-sales service, provide solutions for your problems within 24 hours
2) OEM&ODM: we can help you to produce all customized products;
3) Protection of your design and all your private information;
4) Quality stability, we can provide certificates of products such as CE, FCC;
5) Convenient payment methods: Paypal, bank-in, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 3-7 working days.
Shenzhen Windrunner Technology Co. Ltd. is a high-tech enterprise specializing in automotive electronics product development, production and export.
"Fashion, cutting-edge, practical and convenient" is the enterprise development objective.
We have developed a series of “shocked the industry” and impressed the times high-tech products such as car wireless rearview system, wireless GPS navigator, wireless vehicle mounted camera, wireless vehicle monitor etc. Depending on our powerful technical team, we can provide customized designs, a full range of ODM and OEM services and technical support to customers.
1.What about the warranty?
Answer: The warranty period is 12 months.
2.How to use the car rearview mirror?
Answer: Our product is new type, WIFI transmission, wire free, very easy to install and operate by yourself .
Please follow the instruction of the model, there are installation process, the usual maintenance guidelines etc.
3.What's the payment and the delivery time?
Answer: For payment terms, Mastercard, TT, Paypal,Western Union,Escrow, LC are acceptable;
For the delivery time, it bases on the quantity and the order is OEM/ODM or not, normally, we are providing a lead time of 3-7 business days, DHL, Fedex, UPS, TNT international express would insure the products arrived in your address as soon as possible.
