40X4 character LCD for medical facilities
- 1000000 Piece / Pieces per Month
- shenzhen or guangzhou
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Eton | Model Number: | ET-2017M |
Type: | COB |
Packaging Details
Foam boxes and paper cartons, standard package
Product Description
Product Description
LCD Type | STN, |
POLARIZER | TRANSFLECTIVE/Positive/ |
Display type | 40characters x4lines |
Module size | 190x54x14.5MM |
Viewing Area | 147x29mm |
Supply Voltage | 10V |
Driver | s6a0069 |
BACKLIGHT | YELLOW GREEN |
View Angle | 6:00 |
DOTS SIZE | 0.5X0.56MM |
operating temperature | -20-70C |
Storage temperature | -30-80C |
character size | 2.78x4.97mm |

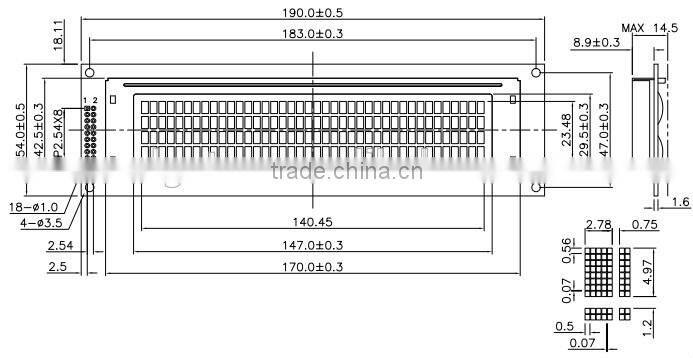

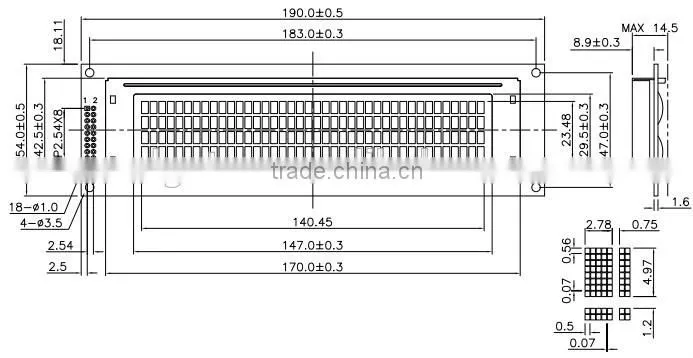

LCD Drawing
Interface
PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7-14 | 15 | 16 | 17 | 18 | ||||||||
Symbol | VSS | VDD | V0 | RS | R/W | E | DB0-DB7 | PSB | /RST | LEDK | LEDA |
Our services
We are professional LCD&LCM manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
LCD Thickness | 1.7mm, 2.0mm,2.8mm |
LCD Display Type | COB ,COG ,TAB |
Polarizer | Reflective , Transmissive,Transflective, Transparent |
Range of operating temperature | -40C-90C |
Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
LCD color | Grey ,YELLOW-Green, Green, Black |
Driving | 1/1 duty to 1/240 duty |
Packaging & Shipping
Company Information
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
Company Profile
Dongguan Eton electronics Co.LTD Is a professional development, manufacture , sale of liquid crystal display (LCD) and supporting modules (LCM) production enterprises. Product types include : TN, HTN, STN, FSTN, black mold LCD and complement the COB, COG, COF, TAB modules. The company has a full set of advanced automatic production lines and precision production equipment , focus on a number of high-tech , high-quality talent , with a strong R & D capabilities and production capacity. Extensive R & D and manufacturing...
