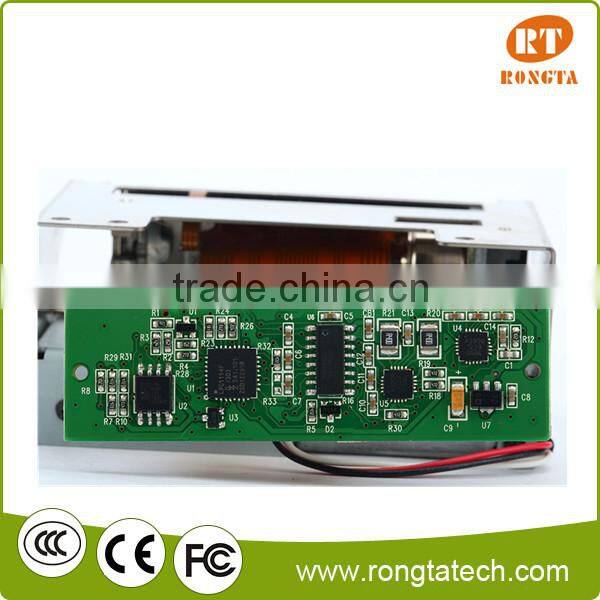

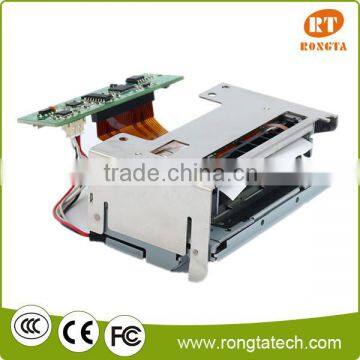

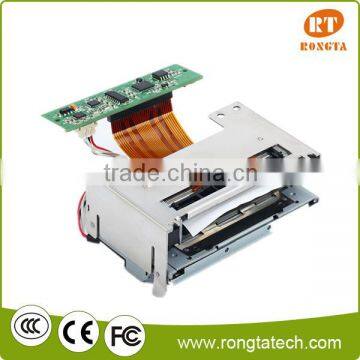

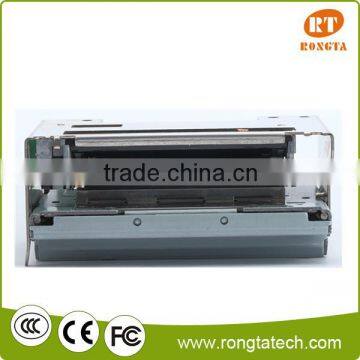

2inch kiosk printer PM628
1.Printing Method:thermal line(thermal mechanism RT628)
2.Paper width:58mm
3.Cutter:Guillotine(life:1,000,000cuts)
4.Printing speed:90mm/s
5.various function
| Specification: | ||
| Printing method | Thermal-line dot method | |
| Printing speed | 90mm/second (max.) | |
| Dot structure | 384 dots/line | |
| Resolution | 8 dots/mm | |
| Dot pitch (Horizontal) | 0.125 mm (8 dots/mm)—Dot density | |
| Dot pitch (Vertical) | 0.125 mm (8 dots/mm)—Line feed pitch | |
| Effective printing area | 48 mm | |
| Number of columns | ANK 32 columns/line (maximum 12 x 24 dot font) | |
| Paper width | 57 mm | |
| Paper thickness | 60 to 85 μ m (some paper in this range may not be used because of paper characteristics) | |
| Power supply | For print head | 4.2 - 8.5 VDC ,average current 1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V) |
| For motor | 4.2 - 8.5 VDC,Maximum 0.46A | |
| For cutter motor | 5-9 VDC,Maximum 1A | |
| For logic | 2.7 - 5.25 VDC,Maximum 0.01A | |
| For Module | 5V-8.5VDC,Maximum 5A Rated Voltage:7V. | |
| Dimensions | Module | 84×36×52.5mm (W×D×H) |
| Weight | Module | 0.23KG |
| Life | Head | 100million pulses or more(print ratio=12.5%) |
| Cutter | 1,000,000 cuts | |
| Operating environment | Operating temperature | 0° C to 50° C |
| Operating humidity | 20 to 85% RH (no condensation) | |
| Storage temperature | -25° C to 70° C | |
| Storage humidity | 5 to 95% RH (no condensation) | |
| Detection function | Head temperature detection |
Via thermistor |
| Head-up detection | Via photo interrupter | |
| Out-off-paper detection | Via photo interrupter | |
1, We are the top 2 of receipt printer manufacturers in China, winning good reputation among not only our domestic printer manufacturing companies, but also the customers overseas.
2, Our company owns professional & experienced teams: R&D team, sourcing team, producing team, shipping team and customer service team. This guarantee all the orders process in smoothly and efficiently, also depends on our service team, it guarantees all the customers’ feedback and technical issues get settled within 1~2 days.
3, Our printers failure rate is below 0.5% in latest 5 years. It will help customers to expand markets in a better way and help make your clients with more confidence.
4, By the scientific& efficient management system, we promise the orders be shipping out within 1 week after order get confirmed.
How do we ensure the high quality?
First, we own the advanced production facilities for manufacturing printers.
Second, our company employee the skill-full workers, almost service in our company for over 5 years.
Third, we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test, printer-head test... finished printer test and so on.
Four, our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
1, Q: Are you a factory or trading company?
Rongtatech: we are a manufacturer, owning the professional design group, skill-full staffs and quality inspection team, located in Gaoqi Hi-tech Industry Area, Xiamen city, China.
2, Q: We would like to have our own brand, is that ok?
Rongtatech: Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Rongtatech: Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux, Oppos operation systems.
4, Q: How can I get a sample?
Rongtatech: It is our honor to supply sample for your evaluation. Please contact the salesperson by informing the model# and your requirements, then we will send the sample by such DHL, Fedex, after your sample order get confirmed.
5, Q: What sale after service do you offer?
Rongtatech: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
We will offer technical supports or helps in your daily use for lifetime and offer latest software for your updating.
