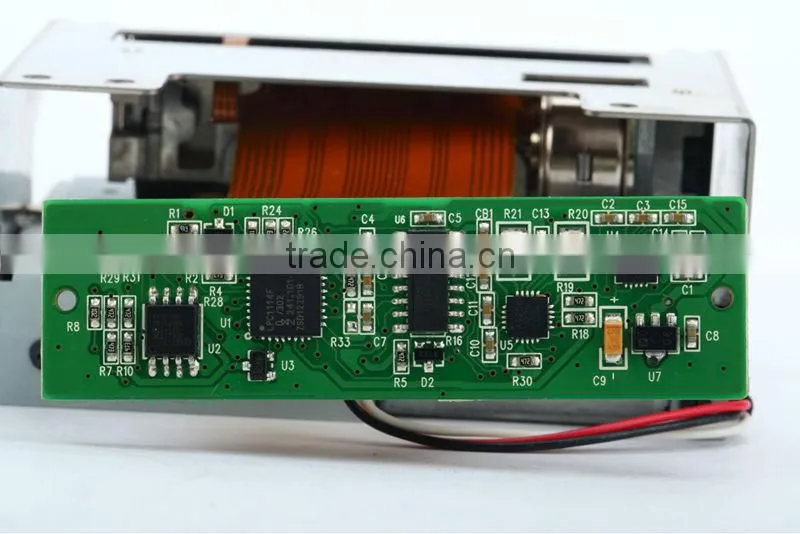

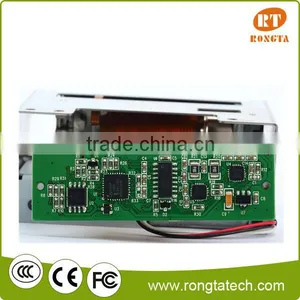

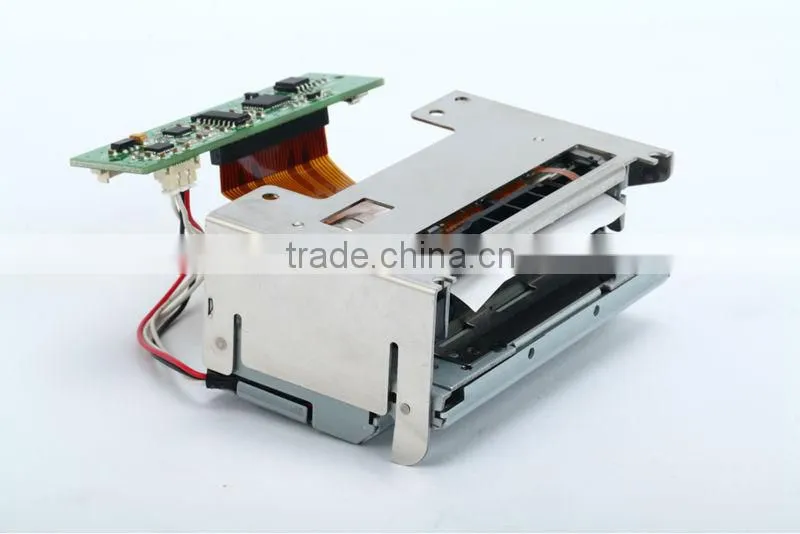

PM628 58mm thermal line dot receipt printer module kiosk printer
main advantages:
1.Printing Method:thermal line(thermal mechanism RT628)
2.Paper width:58mm
3.Cutter:Guillotine(life:1,000,000cuts)
4.Printing speed:90mm/s
5.various function
detailed specification:
| Specification: | ||
| Printing method | Thermal-line dot method | |
| Printing speed | 90mm/second (max.) | |
| Dot structure | 384 dots/line | |
| Resolution | 8 dots/mm | |
| Dot pitch (Horizontal) | 0.125 mm (8 dots/mm)—Dot density | |
| Dot pitch (Vertical) | 0.125 mm (8 dots/mm)—Line feed pitch | |
| Effective printing area | 48 mm | |
| Number of columns | ANK 32 columns/line (maximum 12 x 24 dot font) | |
| Paper width | 57 mm | |
| Paper thickness | 60 to 85 μ m (some paper in this range may not be used because of paper characteristics) | |
| Power supply | For print head | 4.2 - 8.5 VDC ,average current 1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V) |
| For motor | 4.2 - 8.5 VDC,Maximum 0.46A | |
| For cutter motor | 5-9 VDC,Maximum 1A | |
| For logic | 2.7 - 5.25 VDC,Maximum 0.01A | |
| For Module | 5V-8.5VDC,Maximum 5A Rated Voltage:7V. | |
| Dimensions | Module | 84×36×52.5mm (W×D×H) |
| Weight | Module | 0.23KG |
| Life | Head | 100million pulses or more(print ratio=12.5%) |
| Cutter | 1,000,000 cuts | |
| Operating environment | Operating temperature | 0° C to 50° C |
| Operating humidity | 20 to 85% RH (no condensation) | |
| Storage temperature | -25° C to 70° C | |
| Storage humidity | 5 to 95% RH (no condensation) | |
| Detection function | Head temperature detection |
Via thermistor |
| Head-up detection | Via photo interrupter | |
| Out-off-paper detection | Via photo interrupter | |

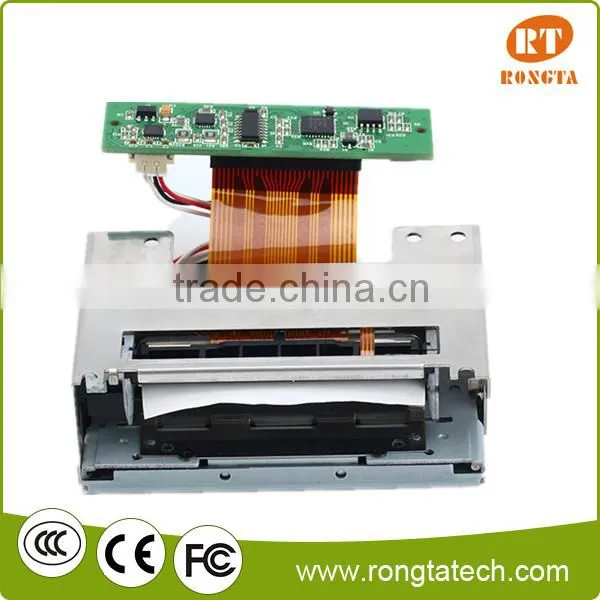

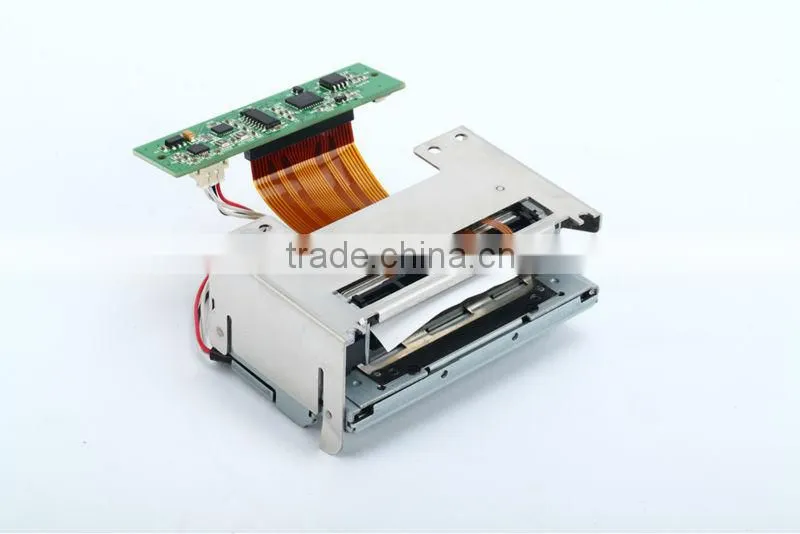

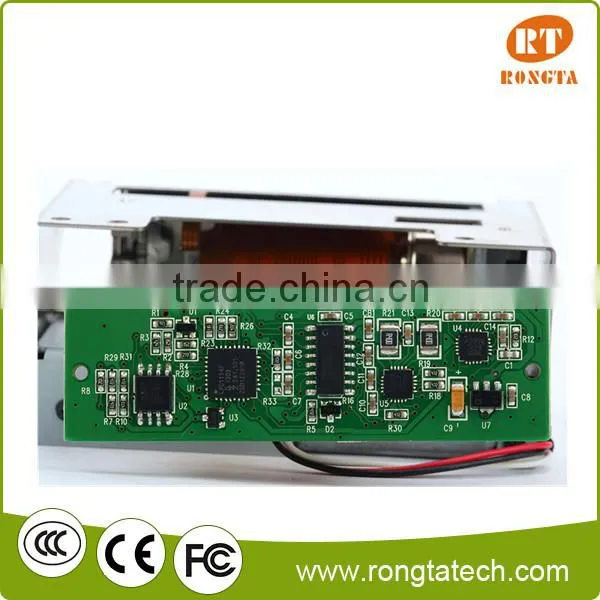

products show:
why RONGTA?
1.We are manufacturer specilized in the POS printer,Receipt printer,printer mechanism,Kiosk and other peripherals.
2.High quality with competitive price
3.Fast delivery time (Within a week,we keep enough safety stock to supply quickly)
4.Strong & Beautiful package (Brown carton inner and 3- layer streching film outer.The printers are well protected against dampness,moisture,and shock.
5.Professional sales team.
RONGTA sales company:

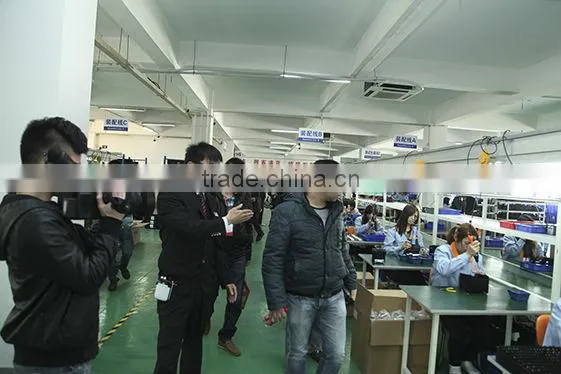

RONGTA factory:
2014 HK electrics exhibition:
2014 TAIPEI computex exhibition:
2014 GERMANY cebit exhibition:
2014 FRANCE quipmag exhibition:
