Specifications
1. API Standard2. OD:4 1/2"~13 3/8"
3. Standard connections on casing scraper are API Reg, Box and Pin

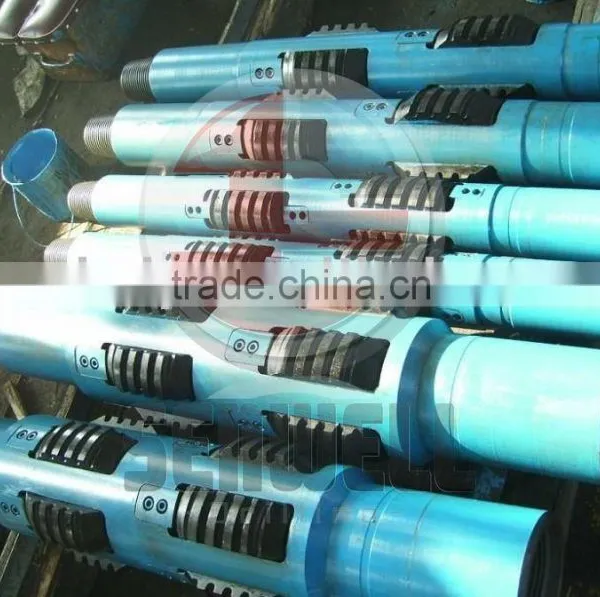

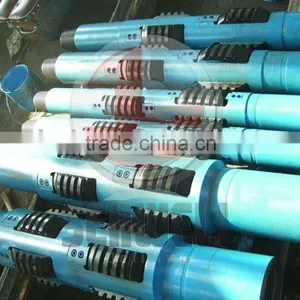

Casing scraper is used to removal of the dirties which may be left over inside wall of casing, such as cement scale, sandy soil, embedded bullets, score mark, hard wax, various salt crystals or deposits, perforation burrs and iron oxide resulted from rusting, so as to keep the wall of casing clean and to lay down all downhole tools freely. Likewise, packers and other similar tools must have a clean junction surface.
Detail Specification:
Technical specifications and parameters for Casing scraper | |||||
Casing Size |
Connection |
Body O.D. |
Length L |
Body I.D. |
Qty Of Blades |
4-1/2 (92-112) |
2-3/8REG |
3-5/8(92) |
35-1/2(895) |
3/4(20) |
2×3 |
5 (95-118) |
NC26 |
3-5/7(94) |
35-1/2(895) |
3/4(20) |
2×3 |
5-1/2 (110-133) |
NC31 |
4-3/8(110) |
39-5/8(1010) |
1(25) |
2×3 |
6-5/8 (136-162) |
3-1/2REG |
5-3/8(136) |
39-5/8(1010) |
1-3/16(30) |
2×3 |
7 (142-168) |
3-1/2REG |
5-3/8(136) |
39-5/8(1010) |
1-3/16(30) |
2×3 |
9-5/8 (209-235) |
4-1/2REG |
8(203) |
47-3/4(1212) |
2-1/4(57) |
2×5 |
10-3/4 (260-240) |
6-5/8REG |
9(228) |
59(1500) |
2-1/4(57) |
2×5 |
13-3/8 (290-330) |
6-5/8REG |
11-1/4(286) |
54(1372) |
2-7/7(71) |
2×7 |
