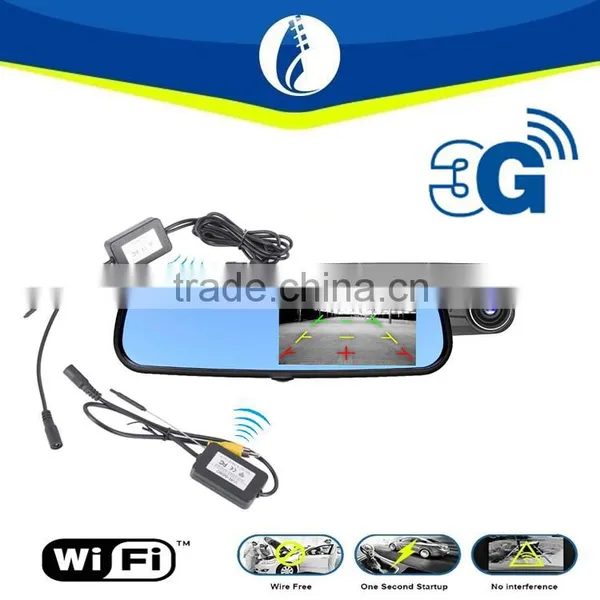

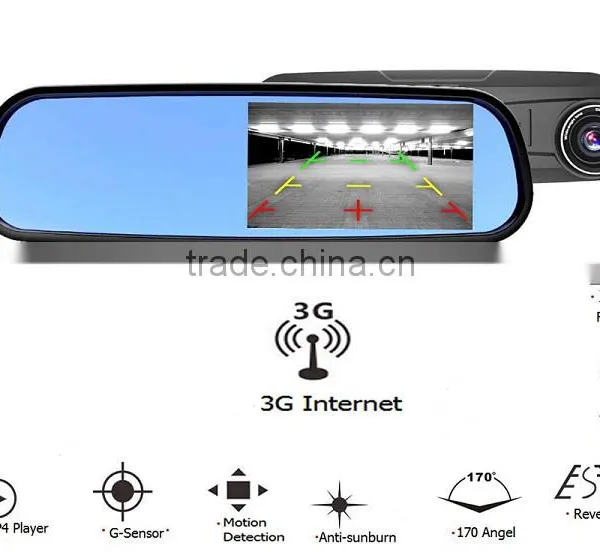

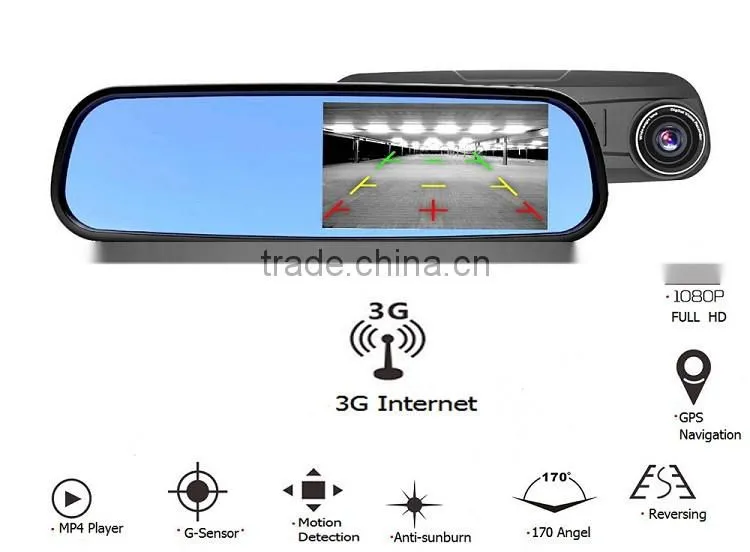

3G Wiring free Wifi Wireless No Interference WIFI 5.0 Inch Smart 1080P GPS Android 4.4 3G Rearview Mirror Bluetooth Car DVR
*WIFI transmission, good data security
*Wire free, easily install it by yourself
*One second startup, no delay, provide better protection for your driving life
*No interference, never be bothered by other wireless equipment.
*Many kinds of professional qualitied camera lens for options.
| Model No. | Specification | ||
|
WIFI Wireless WR-GR9520 |
WIFI Video Transceiver |
Protocal |
Access to the data Link Layer of standard WIFI and comply with 2.4G Adaptive -FHSS |
| Video format | MJEPG | ||
| Data Rate | Up to 150MHz | ||
| TX Power | 14~18dBm | ||
| RX sensitivity | -68dBm@MSC7 | ||
| Output formal | CVBS | ||
| Startup time | 1s | ||
| Delivery Time | ≤100ms | ||
| TV system | PAL/NTSC | ||
| Camera type | CMOS | ||
| Transfer Distance | 100m ( open space ) | ||
| Input voltage | DC12V | ||
| Output voltage | DC12V,5V,3.3V | ||
| Output current | max 2A (5V) | ||
Basic Parameter |
OS | Android 4.4+ UI style | |
| CPU | MTK 8382V/X Quad-Core Cortex-A7 1.3Ghz | ||
| GPU | MT6582 chipset | ||
| Ram | 1GB | ||
| Flash Memory | 4GB/8GB/16GB | ||
| Extend Memory | double T card, max. 32GB TF card | ||
| LCD Size | 5.0" large full touchscreen | ||
| LCD Display Resolution | 480*854 display,540 * 960 | ||
| G-Sensor | BMA 250/250E | ||
| Car DVR | DVR |
1080p 25/fps wide angle 120 degree, opposit angle 170 degree |
|
| Voice Recorder | Support MP3,AMR,3GPP format | ||
| Video Decoder | Support 1080P | ||
| Voice Format |
WAV,MP3,MP2,AAC,AMR,AWB,MIDI ,OGG,Vorbis,APE |
||
| Picture Format | JPG,PNG,BMP,GIF | ||
| Text Format | WORD,EXCEL,POWERPOINT,PDF,TXT | ||
| 3G | GSM | 850/900/1800/1900 MHZ | |
| 3G | Band 1/ Band 2 /Band 5/ Band8 | ||
| GPS Navigation | GPS | Support | |
| Map | Google, iGo | ||
| FM Transmitter | FM | 87.5MHZ-108MHZ | |
| Bluetooth | Bluetooth | Bluetooth v4.0,BT hands free calling support | |
| Other | Angle | level angle 130 degree,opposit angle 170 degree | |
| Camera Px | Max 1280(H) * 720(V) | ||
| Frame Rate | 25 fps 1080P output | ||
| Automatic reversing visual | Support | ||
| Flash Light | N/A | ||
| AV IN Camera Display | 648*488 30fps | ||
| WIFI | Wi-Fi802.11 b/g/n | ||
| USB Port | Mini USB 2.0 | ||
| Adapter | 5V 2A | ||
| Battery Capacity | 320mAh | ||
| Languages | English /Chinese | ||

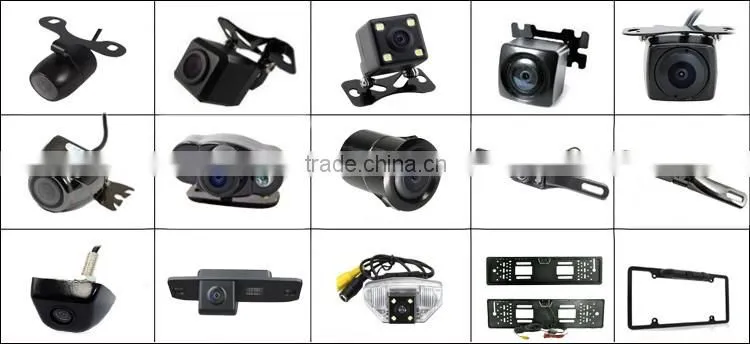

Various lens for your option

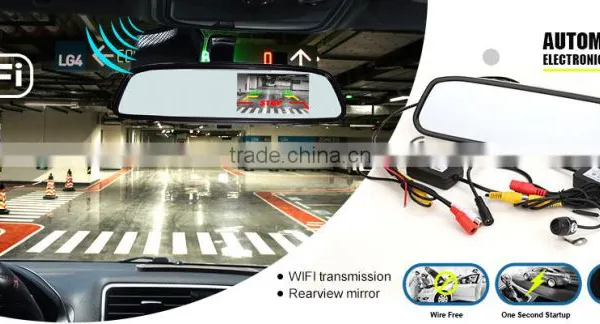

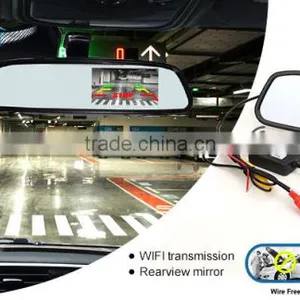

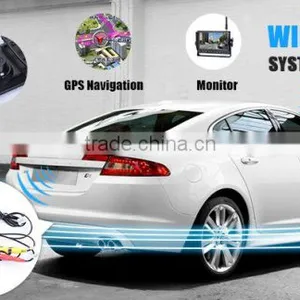

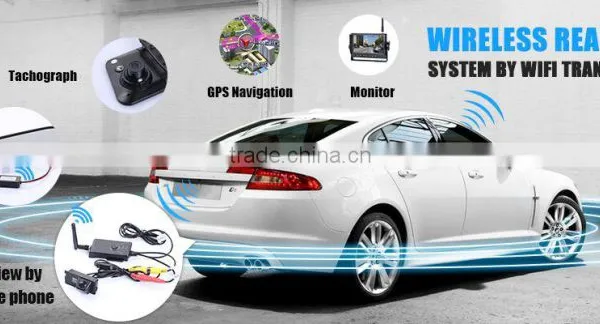

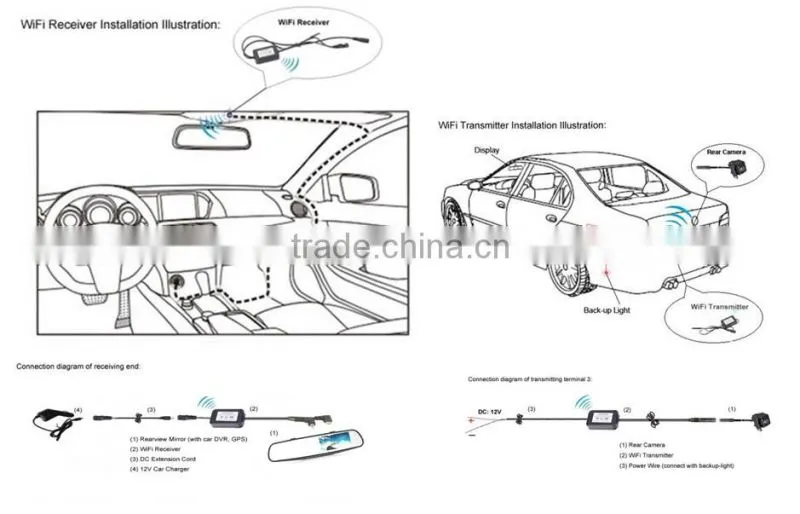

Installation Diagram
1) Efficient after-sales service, provide solutions for your problems within 24 hours
2) OEM&ODM: we can help you to produce all customized products;
3) Protection of your design and all your private information;
4) Quality stability, we can provide certificates of products such as CE, FCC;
5) Convenient payment methods: Paypal, bank-in, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 3-7 working days.
Shenzhen Windrunner Technology Co. Ltd. is a high-tech enterprise specializing in automotive electronics product development, production and export.
"Fashion, cutting-edge, practical and convenient" is the enterprise development objective.
We have developed a series of “shocked the industry” and impressed the times high-tech products such as car wireless rearview system, wireless GPS navigator, wireless vehicle mounted camera, wireless vehicle monitor etc. Depending on our powerful technical team, we can provide customized designs, a full range of ODM and OEM services and technical support to customers.
1.What about the warranty?
Answer: The warranty period is 12 months.
2.How to use the car rearview mirror?
Answer: Our product is new type, WIFI transmission, wire free, very easy to install and operate by yourself .
Please follow the instruction of the model, there are installation process, the usual maintenance guidelines etc.
3.What's the payment and the delivery time?
Answer: For payment terms, Mastercard, TT, Paypal,Western Union,Escrow, LC are acceptable;
For the delivery time, it bases on the quantity and the order is OEM/ODM or not, normally, we are providing a lead time of 3-7 business days, DHL, Fedex, UPS, TNT international express would insure the products arrived in your address as soon as possible.
