China made high quality CE certified small plastic grinder crusher QL-300
QL series of powerful crushers is a powerful crusher with multiple applications. Its main function is to crush all kinds of hard and soft plastics, grind block or strip shaped and outlet plastic into granules. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.
It can be installed beside the main machine to crush recycled materials during the operation of the main machine. It can also be used to crush centralized materials collected from a production line.
Features of small plastic grinder crusher
1) Strong structure, easy to operate, low electricity consumption & durable
2) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.
3) The blades can be grinded for many times and can be used repeatedly
4) Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable
5) With flat type, claw type and cross type blade and screen with different hole size for chose to suit various demand.
6) With double reduce noise layer design to reduce noise output.
7) Has protection system with the power supply to ensure the equipment safe
8) Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.
9) Necessary for the plastic extrusion machines and other plastic recycling industry.

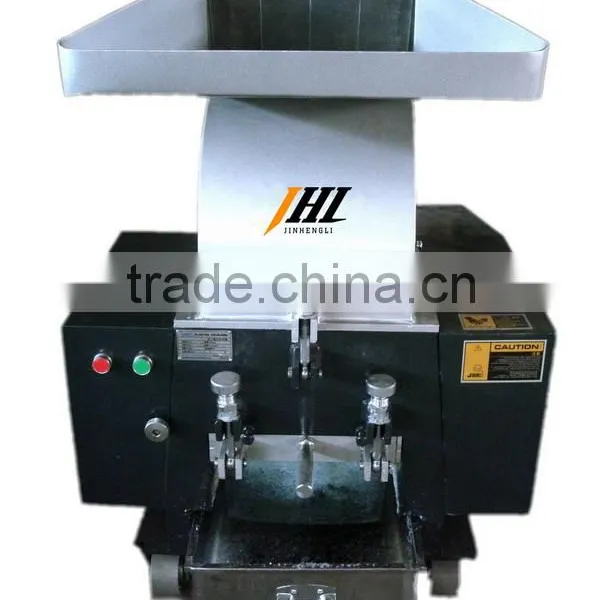

Pictures of small plastic grinder crusher
Specifications
| QL series Plastic Granulator | ||||||||
| Model | QL-300A (B) | QL-400A (B) | QL-500A (B) | QL-600A (B) | QL-700 | QL-800 | QL-1000 | |
| Power | Kw | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Hp | 7 | 10 | 15 | 20 | 30 | 40 | 50 | |
| Rotating Speed (r/min) |
610 | 580 | 600 | 506 | 493 | 440 | 440 | |
| Rotating Φ Dia (mm) |
213 | 243 | 247 | 292 | 360 | 400 | 400 | |
| Spindle Φ Dia (mm) |
72 | 72 | 78 | 82 | 110 | 110 | 120 | |
| Moving blades (pcs) |
9 | 12 | 15 | 18 | 21 | 24 | 6 | |
| Fixed blades (pcs) |
2 | 2 | 2 | 4 | 4 | 4 | 4 | |
| Crushing ability (kg/h) | 150-200 | 250-400 | 300-500 | 500-600 | 600-700 | 700-800 | 900-1000 | |
| Feeding inlet (mm) |
300x200 | 400x245 | 500x285 | 600x315 | 685x430 | 800x450 | 1000x500 | |
| Screen net Φ (mm) | 8 | 10 | 10 | 12 | 12 | 12 | 14 | |
| Net Weight - kg (without motor) |
300 | 430 | 550 | 800 | 1325 | 1800 | 2000 | |
| Machine size ( LxWxH m) |
1.07x0.72x1.08 | 1.29x0.86x1.18 | 1.37x1.00x1.39 | 1.54x1.15x1.66 | 1.75x1.25x1.96 | 1.95x1.37x2.18 | 2.25x1.60x2.40 | |
| NOTE: (Difference) Model A :Upper box be with iron sheet liner. Model B :Upper box be with stainless iron liner. | ||||||||

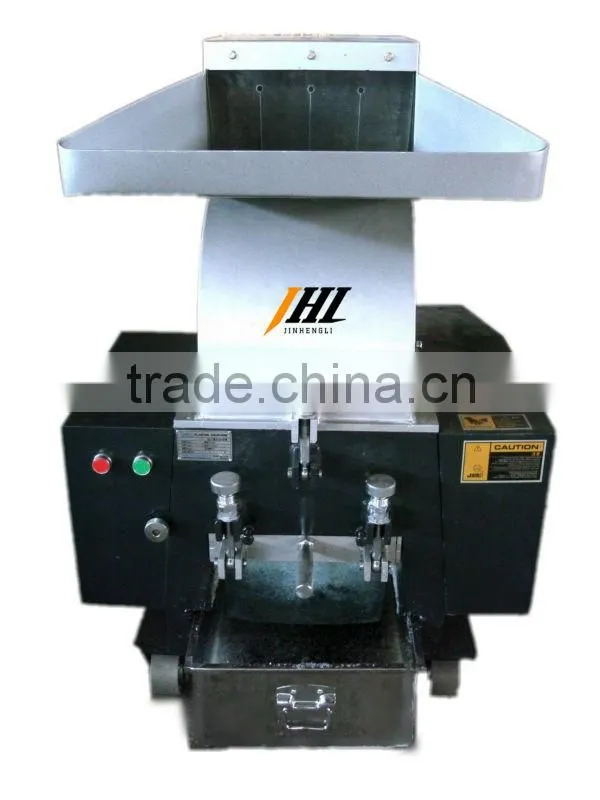

Below is plastic granulating crushing machine QL series base machine.

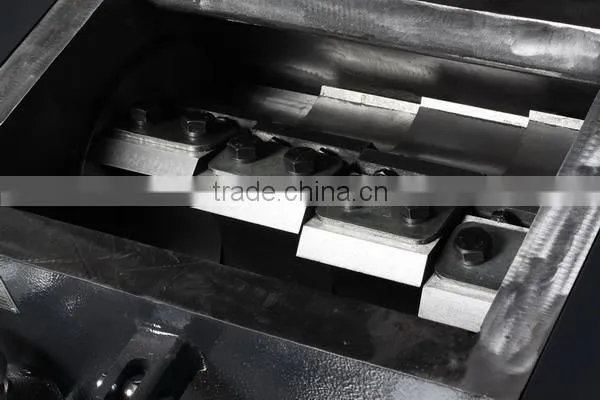

Claw blades type:

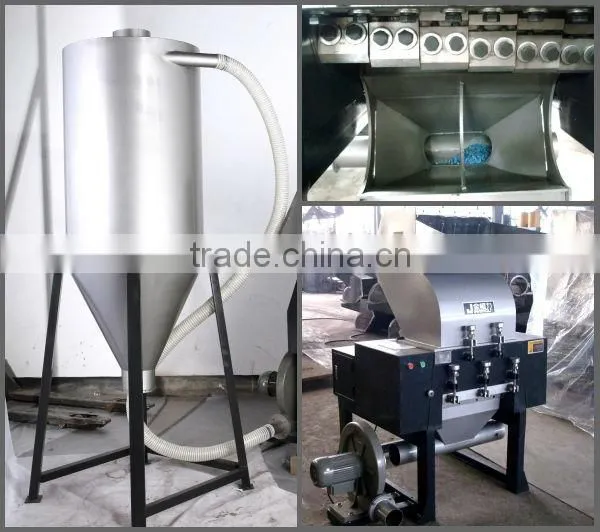

Below is plastic granulating crushing machine QL series optional with
blower & cyclone silo.
QL-400 testing video:
Crushing Rubber undersoles
Crushing plastic strapping band
Crushing label paper
QL-500 testing video:
Crushing thick wall paper
Crushing wood
/v_show/id_XMTMwMzUyNTUxMg==.html
QL-600 testing video:
Crushing pvc pu raincoat
QL crusher blades running video:
