Specifications
API Spec 4F standardFeatures:

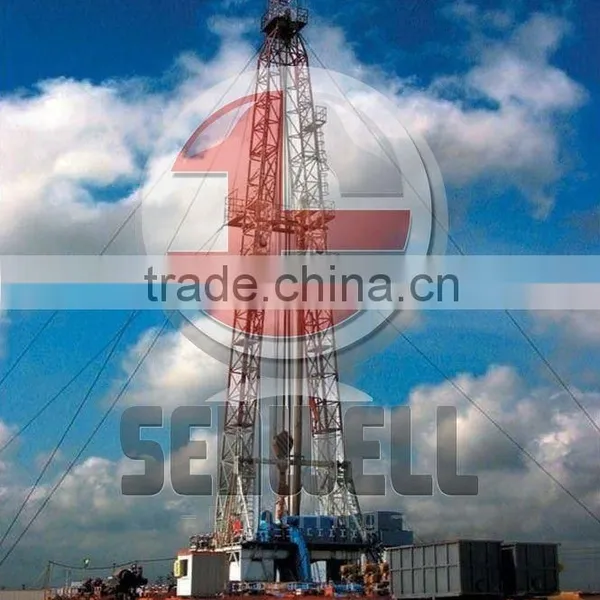

Section of Derrick is k-shaped, namely front-opening type.
1. Derrick is installed at low position and lifted completely. Derrick is divided into several sections which are connected in plane, and double conic pin is inserted into holes so as to connect sections tightly and properly.
2. Main body of Derrick is laminar structure which is easy to assemble & disassemble and transport.
3. Major stressed parts of Derrick such as legs and A-frame are made from H-steel.
4. Adjustment of center of well: its left and right direction is adjusted by adding/reducing pads under bracket of Derrick and front/ rear direction is adjusted by eccentric wheel at rear bracket of A-frame (however, if bracket of derrick’s leg is below sub-structure, it is adjusted on the floor).
Standard: API Spec 4F standard
Technical specifications and parameters for Derrick | |||||||||
Model | JJ 135 /31.5 | JJ 225 /43 | JJ 315 /43-II | JJ 315 /43 | JJ 450 /45 | JJ 450 /45S | JJ 450 /45K | JJ 585 /45 | |
Maximum static load | 1350 | 2250 | 3150 | 3150 | 4500 | 4500 | 4500 | 5850 | |
Working height(m) | 31.5 | 43 | 43 | 45 | 45 | 45 | 45 | 45 | |
Top span distance(m) | 1.7 | 1.8 | 1.8 | 1.8 | 2.1 | Facad: 2.1 | 2.1 | 2.4 | |
Bottom span distance(m) | 6 | 7.5 | 8 | 9 | 9 | 9 | 9 | 9 | |
Working height of racking platform | 17.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | |
Setback capacity | 2500 | 4000 | 5000 | 6050 | 6500 | 7280 | 7280 | 9200 | |
Height of A-frame(m) | 5 | 7.565 | 7.2 | 7.5 | 7.9 | 9.4 | 9.4 | 8.0 | |
Anti-wind capacity | Non-working state (no setback & hooking load) | 172 | 180 | 180 | 180 | 170 | 172 | 172 | 172 |
Non-working state | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | |
Lift and release mast KM/h | 30 | 30 | 20 | 20 | 30 | 30 | 30 | 30 | |
Weight(Kg) | 25640 | 36963 | 37420 | 47193 | 51540 | 72967 | 93440 | 120150 | |
