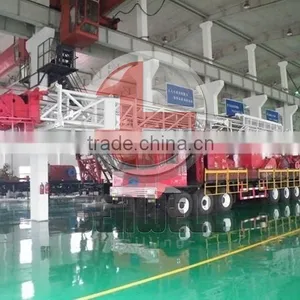

Help CenterXJ90Z-3 Workover Rig
Related Products
Specifications
Workover rigs without guyl ine are designed for small-scale and fast workover operationsXJ90Z-3 workover rig is a new efficient and reliable equipment, which is used for workover treatment of oil, gas and water well,
The features as follow
1.) The driving system makes use of hydraulic torque converter and machinery driving with wide variable speed range and high synthetical efficiency.
2.) The traveler system makes use of large scale and cross-country bridge tire of construction machinery, with wheel-drive type 4 × 4, which can adapt various roads, such as tidal-flat zone, swamp, miriness etc.
3.) The pattern of imbark adopt truck and machine merging and integrative bodywork, which can enhance the stability of travelling and workover.
4.) The control system is pneumatic and hydraulic, which makes the gears-change, turning, brake, and winch handling agile and reliable.
5.) The derrick has double sections and shaped extended structure by hydraulic cylinder, carrying large base of derrick, with facility operation and better adaptability.
6.) It has transmission shaft (ZP100) with workover platform, which adapts to the operations of various drilling poles.
7.) It has process protection devices and anti-twist release device, which can prevent the drilling pole being broken and being safe to release after transforming during well service operation.
Detail Specification:
Technical specifications and parameters for XJ90Z-3 Workover rig | |
Type |
XJ90Z-3 |
Workover Depth |
4000M |
Rated Hook Load |
600kN |
Max. Hook Load |
900kN |
Speed of the Hook |
0.08~1.30m/s |
Derrick Height |
22M |
Driving type |
4 × 4 |
Model of the Motor |
WD615-67A |
Power of the Motor |
206Kw |
Max. Climbing Gradient |
30% |
Max. Speed |
36km/h |
Min. Turning Radius |
11.9M |
Min. Road Clearance |
480mm |
Travel System |
4 × 5 |
Overall Dimension(L×W×H) |
13965×3080×4000mm |
Weight |
32000kg |
