Specifications
transducers for injection, clamping, ejectorLow pressure molding protection
Automatic mold adjustment and resin replace
injection moulding machine prices

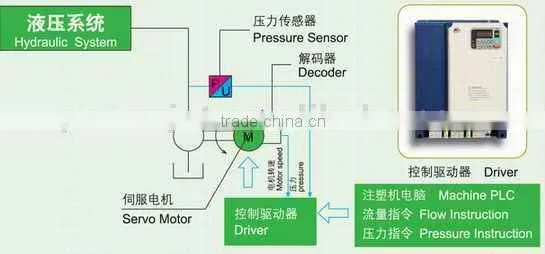

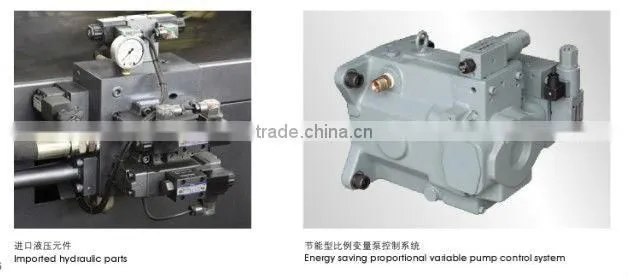

1. Hydraulic System
• Close-loop control.
• Increase injection pressure / speed resolution rate
• High accuracy measurement control. Reduce the standard deviation to 1/3.
• High-pressured ratio of the injection pressure. Max increase 20%
• Increase response rate
• Sustantially improve the stable control of mold opening & clamping.
2. Clamping Unit
• Five pivots double toggle mould clamping mechanism.

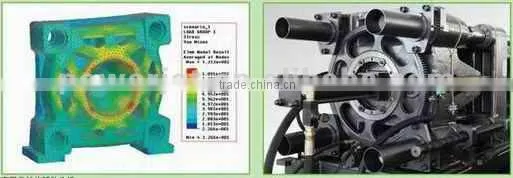

• Finite element analysis on structure, the mould board is more logical, stronger and higher fatigue resistance.
• Low pressure protection function greatly prolongs the service life of the mould.
• High precision electron meter is used to control position, the control precision is 0.1 mm.
• Mechanical, electric and hydraulic (optional) safety protection are equipped
3. Injection Unit

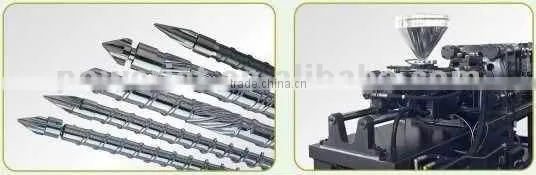

• Superior and efficient separating screw and high mixing screw increase the range of material used, and guarantee molten material to be uniform and stable.
• Machine above BJ400 adopts double injection shift devices to prevent injection nozzle displacement and avoid material leakage.
4. Controller
• It can store injection material information for 120 setsof moulds
• Fuzzy temperature control is use. High and low temperature deviation alarm and thermocouple disconnection inspection functions are available.
• Function to prevent cold material start-up.
• Times of forming can be matched with automatic stop function for convenient production management.
• Computer controlled automatic lubrication devices.
• Automatic mould adjustion function.

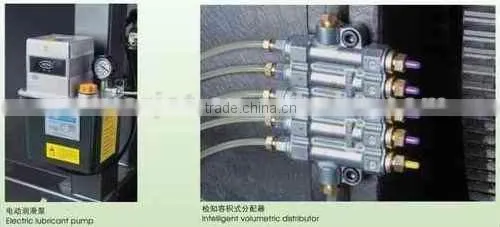

5. Lubrication System
• Major friction parts are equipped with lubrication points. Central oil supply system is used for hinges.
• Intelligent volumetric centralized lubricating system, controlled by computer, sends quantitatively lubricating oil to wearing points.

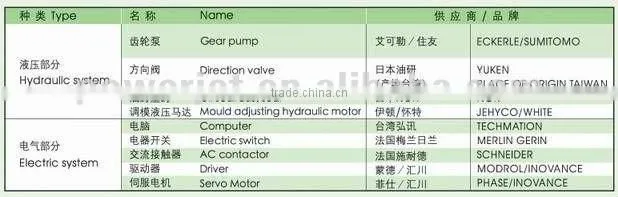

6. Major components
7. Parameter
| DESCRIPTION | UNIT | BJ288S5 |
| CLAMPING UNIT | ||
| Clamping force | KN | 2880 |
| Opening stroke | mm | 550 |
| Max.daylight | mm | 1160 |
| Platen size | mm×mm | 850×850 |
| Space between Bars(H*V) | mm×mm | 610×610 |
| Max. Mold Height | mm | 610 |
| Min. Mold Height | mm | 280 |
| Ejector Stoke | mm | 145 |
| Ejector Force | KN | 77 |
| INJECTION UNIT | ||
| Screw Diameter | mm | 52 60 68 |
| Screw L/D Ratio | 24 21 18.5 | |
| Injection Pressure | MPa | 226 169 132 |
| Shot Volume | cm³ | 594 792 1017 |
| Shot Weight(PS) | g | 558 744 956 |
| OZ | 20 26.2 33.7 | |
| Injection Rate | g/sec | 179 238 267 |
| Plasticizing capacity | mm/sec | 39 50 64 |
| Screw Stroke | mm | 280 |
| Screw Speed | RPM | 148 |
| POWER UNIT | ||
| Hydraulic system pressure | MPa | 16 |
| Pump motor power | KW | 23 |
| Heater power | KW | 13.8 |
| GENERAL | ||
| Oil tank capacity | L | 420 |
| Machine weight | Ton | 8.2 |
| Machine dimensions(l×w×h) | m×m×m | 6.16×1.50×2.2 |
