Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Casing Drift

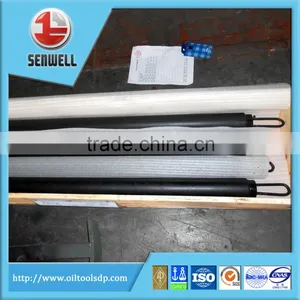

Casing Drift

Name: Casing Drift
Brand: Senwell
SKU: 123845705
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Senwell

Model Number:

Size

Contact Supplier Request Quote Chat Now

Shaanxi Senwell Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Senwell

Model Number Size

Type Other, drift

Machine Type Drilling Tool

Certification AISI

Material Stainless Steel

Processing Type Forging

Use Well Drilling

Api casing drift

Driftis a simple and general tools designed to measure inside size of casing, tubing, drill pipe and other pipe. Drift are available in casing drift and tubing drift.

Detail Specification:

Technical specifications and parameters for Drift
Casing drift(in)	4 1/2	5	5 1/2	5 3/4	6 5/8	7
O.D.(mm)	92-95	102-107	114-118	119-128	136-148	146-158
Length(mm)	500	500	500	500	500	500
Up Conn.	NC26 2 3/8TBG	NC26 2 7/8TBG	NC31 2 7/8TBG	NC31 2 7/8TBG	NC31 2 7/8TBG	NC38 3 1/2TBG
Down Conn.	NC26 2 3/8TBG	NC26 2 7/8TBG	NC31 2 7/8TBG	NC31 2 7/8TBG	NC31 2 7/8TBG	NC38 3 1/2TBG

Technical specifications and parameters for Drift
Tubing drift(in)	1 1/2	2	2 1/2	3	3 1/2	4
O.D.(mm)	38	48	59	73	84	95
Length(mm)	500	500	500	500	500	500

Pipe type	Specification(in)	Drift size
Pipe type	Specification(in)	Length(mm)	Min. diameter(mm)
Casing	≤ 8 5/8”	150	3.18
	9 1/8”~13 3/8”	305	3.97
	≥16”	305	4.76
Tubing	≤ 2 7/8”	1067	2.38
Tubing	≥3 1/2”	1067	3.18
