NC40 FH Drill Pipe Tool Joint / AISI 4137 Tool Joint/ / 2 13/16" E75 Tool Joint
US$ 1 - 500
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Senwell
Model Number:
sw036
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 1/2" IF Drill Pipe Tool Joint / 2 11/16" Grade E75 Tool JointUS$ 1 - 500MOQ: 10 Pieces -
Package Frame for Drill Pipe & Drill CollarNegotiableMOQ: 10 Sets
-
Plastic & Metal Composite Material Made Drill Pipe & Drill Collar Wrap Frames/ Packing FramesNegotiableMOQ: 10 Sets
-
API Standard Heavy Duty Plastic Thread Protector for Drill PipeUS$ 1 - 15MOQ: 10 Pieces
-
China Manufacturer API Standard 3-1/2" IF Heavy Duty Plastic Thread Protector for Drill Pipe in Oil Drilling InsdustryUS$ 1 - 15MOQ: 10 Pairs
Place of Origin
China
Brand Name
Senwell
Model Number
sw036
Type
Other, tool joint
Machine Type
Drilling Tool
Certification
API
Material
High Manganese Steel
Processing Type
Forging
Use
Well Drilling
Product Description

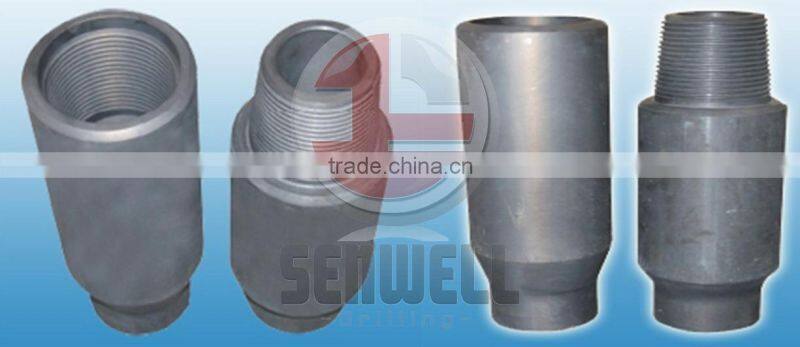

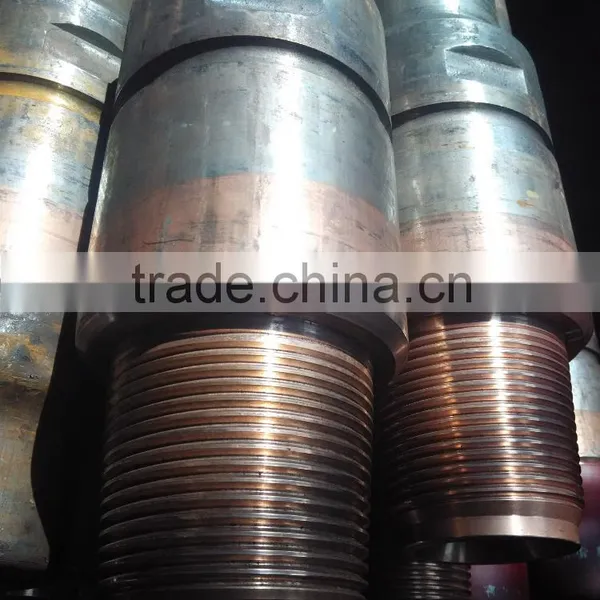

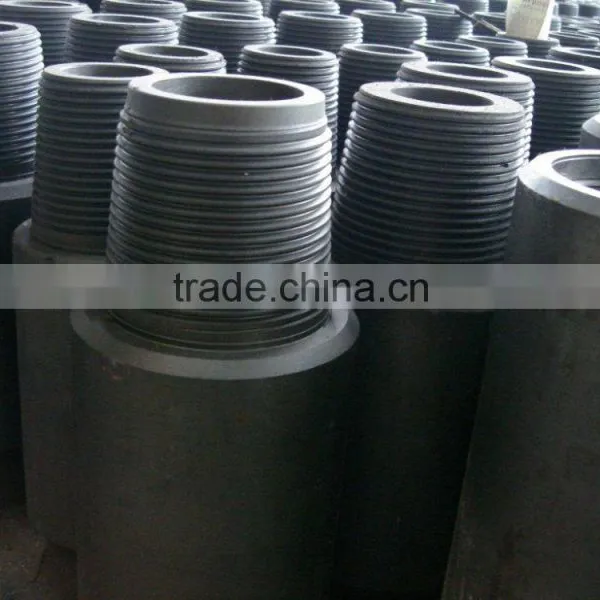

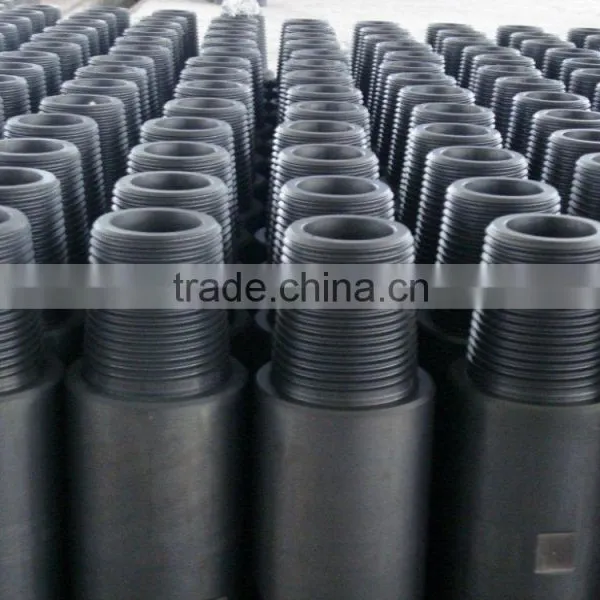

Tool Joint
Tool joint are made of AISI 4137 premium alloy steel fully and machined by CNC lathes. All connections are phosphatized, coated with lubricant and provided with thread protectors. All tool joints should be inspected at full length by fluorescence magnetic particle and ultrasonic method. Tool joints are for pipes from 2 3/8" to 6 5/8", grade is E 75, G 105 and S 135; upset style is EU, IEU or IU.
Detail Specification:
Technical specification and parameters for Tool Joint | |||||||
Tool joint connection | DP nominal weight lb/ft | Steel grade | O.D.(in) | I.D.(in) | Pin tong space(in) | Box tong space(in) | Pin/Box bevel diameter(in) |
NC31 | 10.4 | G105 | 4 1/8 | 2 | 7 | 9 | 3 61/64 |
S135 | 4 3/8 | 1 5/8 | 7 | 9 | 3 61/64 | ||
NC38 | 13.3 | G105 | 5 | 2 7/16 | 8 | 10 1/2 | 4 37/64 |
S135 | 5 | 2 1/8 | 8 | 10 1/2 | 4 37/64 | ||
NC46 | 16.6 | X95 | 6 1/4 | 3 | 7 | 10 | 5 23/32 |
G105 | 6 1/4 | 3 | 7 | 10 | 5 23/32 | ||
S135 | 6 1/4 | 2 3/4 | 7 | 10 | 5 23/32 | ||
NC50 | 19.5 | X95 | 6 5/8 | 3 1/4 | 7 | 10 | 6 1/16 |
G105 | 6 5/8 | 3 1/4 | 7 | 10 | 6 1/16 | ||
S135 | 6 5/8 | 2 3/4 | 7 | 10 | 6 1/16 | ||
