DZS12-ME32 Din Rail Mounted Motor Starter 11kW,380V

DZS12-ME32 Din Rail Mounted Motor Starter 11kW,380V thumbnail-1
DZS12-ME32 Din Rail Mounted Motor Starter 11kW,380V photo-1
US$ 12 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aoelec
Model Number:
DZS12-ME32
Contact Supplier Request Quote Chat Now
Wenzhou Aoelec Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Aoelec
Model Number DZS12-ME32

Specifications

Motor Starter 11kW,380V
1.Current:Up to 80A
2.Vast of OEM experince
3.Conform to IEC standard
4.Voltage:up to 690V

Function and Feature:

1.Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor

2.Motor protection provided by thermal-magnetic devices built into the circuit-breaker

3.No live parts are accessible to direct finger contact

4.The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost

5.The addition of a shunt trip enables remote control of tripping

6.The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks

7.Connectors: spring terminal, screw clamp


Benefits:

1.Complete protection concentrated in a single product

2.Compact and simple to select, TeSys GV2 motor circuit-breakers are only 45 mm wide and are categorised
according to their level of performance and functions: type of control, breaking capacity, motor protection and accessories.

Applications:

1.Industry, infrastructure, building, etc:
2.Motor control and protection, in accordance with standards IEC 947-2 and IEC 947-4-1.
3.Easily inserted in any configuration by screw or clip-fixing onto mounting rails.



Technical Data:

Rated insulation voltage Ui(V):690

Rated work voltage Ue(V):230/240,400/415,440,500,690

Rated frequency(Hz):50/60

Rated Current

In(A)

 The adjusting range of commuting current The cutting capacity for rated limit short circuit(Icu),the cutting capacity for rated work short circuit(Ics) The distance of arcs(mm)
230/240V 400/415V 440V 550V 690V
Icu(kA) Ics(kA) Icu(kA) Ics(kA) Icu(kA) Ics(kA) Icu(kA) Ics(kA) Icu(kA) Ics(kA)
0.16 0.10~0.16 100 100 100 100 100 100 100 100 100 100 40
0.25 0.16~0.25 100 100 100 100 100 100 100 100 100 100 40
0.4 0.25~0.4 100 100 100 100 100 100 100 100 100 100 40
0.63 0.4~0.63 100 100 100 100 100 100 100 100 100 100 40
1 0.63~1 100 100 100 100 100 100 100 100 100 100 40
1.65 1~1.6 100 100 100 100 100 100 100 100 100 100 40
2.5 1.6~2.5 100 100 100 100 100 100 100 100 3 2.25 40
4 2.5~4 100 100 100 100 100 100 100 100 3 2.25 40
6.3 4~6.3 100 100 100 100 50 50 50 50 3 2.25 40
10 6~10 100 100 100 100 15 15 10 10 3 2.25 40
14 9~14 100 100 15 7.5 8 4 6 4.5 3 2.25 40
18 13~18 100 100 15 7.5 8 4 6 4.5 3 2.25 40
23 17~23 50 50 15 6 6 3 4 3 3 2.25 40
25 20~25 50 50 15 6 6 3 4 3 3 2.25 40
32 24~32 50 50 10 5 6 3 4 3 3 2.25 40

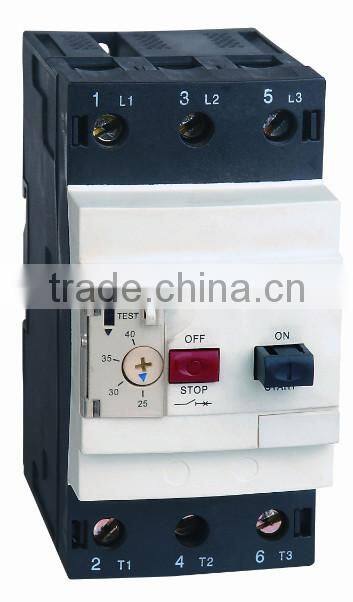

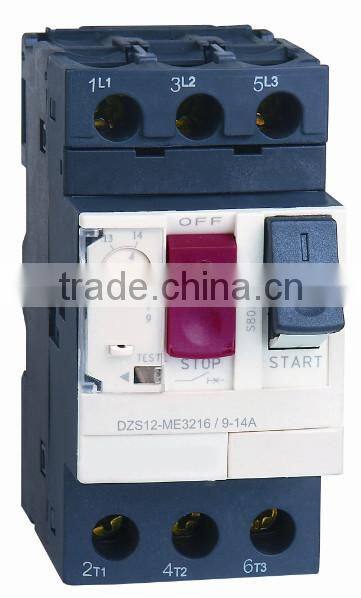

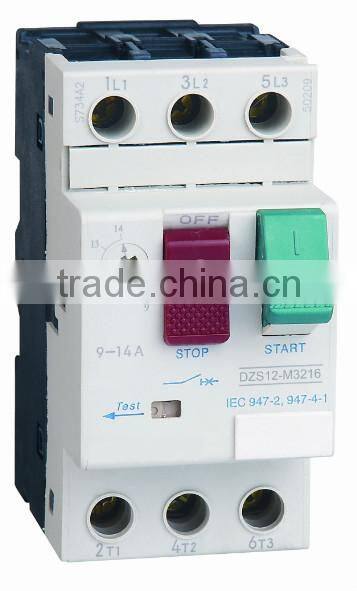

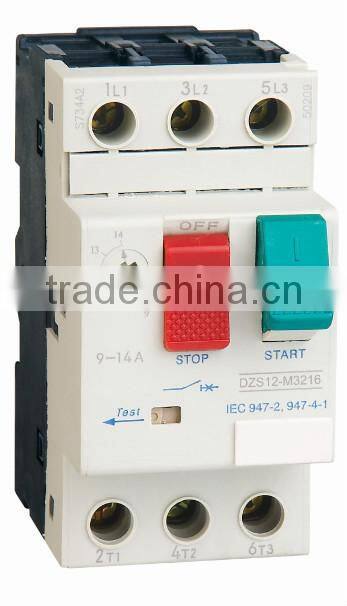

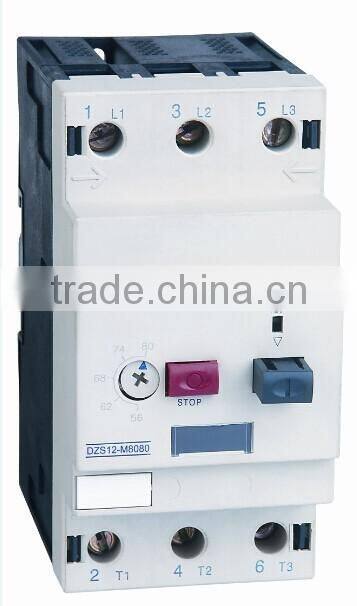

 DZS12-ME32 Din Rail mounted Motor Starter 11kW,380VDZS12-ME32 Din Rail mounted Motor Starter 11kW,380VDZS12-ME32 Din Rail mounted Motor Starter 11kW,380VDZS12-ME32 Din Rail mounted Motor Starter 11kW,380VDZS12-ME32 Din Rail mounted Motor Starter 11kW,380VDZS12-ME32 Din Rail mounted Motor Starter 11kW,380V

About us:

DZS12-ME32 Din Rail mounted Motor Starter 11kW,380V

Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
