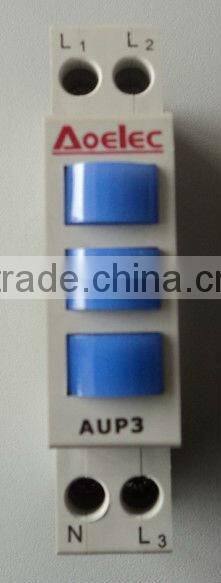

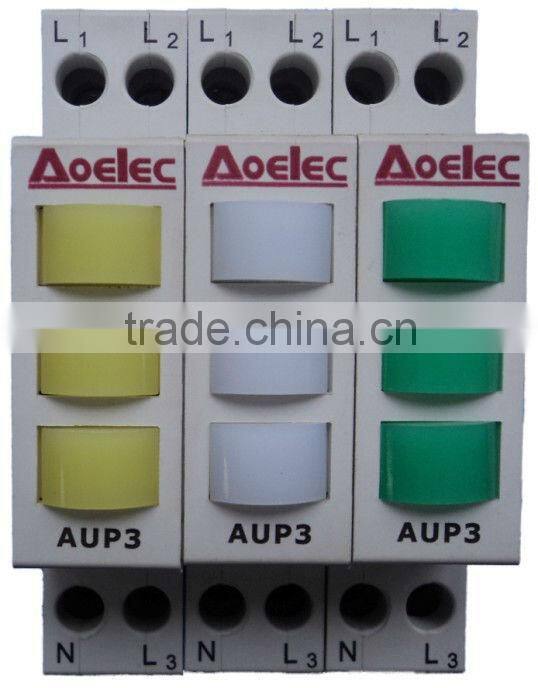

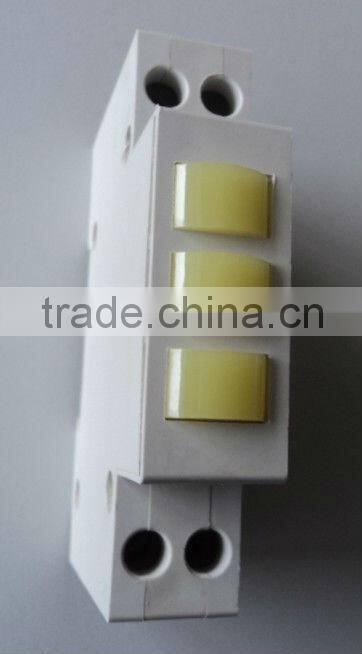

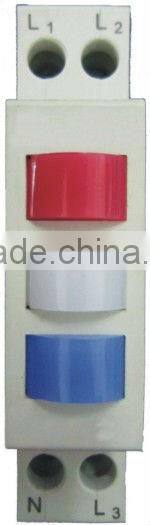

AUP3 CE Certificate Three Phase Led Voltage Indicator
- Ningbo/shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aoelec | |
| Model Number | AUP3 |
Product Description
Function and Feature:
Applicable to circuit with rated voltage 230V~and frequency 50/60Hz for visual indication and warning
Three phase LED lamp in one module.
Obviously indication phase with three different colors.
Technical Data:
Rated Voltage(Un):24/48/110/230VAC
24/48/110/230VDC
Rated frequency:50/60Hz
Number of poles:1P
Light source:LED diode
Rated insulation voltage(Ui):500V
Light Source capacity:0.8W
Colors:red/green/blue/yellow/transparent
Terminals:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 60947-5-1
Catalog NO. CTN Size:46.5X24X17.5CM
| Model | Description | QTY/Box | QTY/CTN |
| AUP3-24 | 24VAC | 12 | 120 |
| AUP3-48 | 48VAC | 12 | 120 |
| AUP3-110 | 110VAC | 12 | 120 |
| AUP3-230 | 230VAC | 12 | 120 |
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
