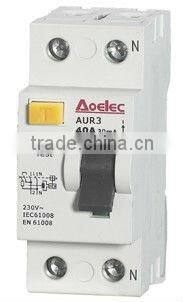

Help CenterAUR3 Modular Electrical 2 Pole Earth Leakage Circuit Breaker/ELCB
Related Products
-
AUR3 Modular Electrical 4 Pole Earth Leakage Circuit Breaker/ELCBUS$ 9 - 13MOQ: 200 Pieces -
AUR2 CE Certificate 4P Earth Current Circuit BreakerUS$ 9 - 12MOQ: 120 Pieces
-
AUR3 4P KEMA Certificate With High Breaking Capacity RCCBUS$ 7 - 10MOQ: 200 Pieces
-
AUR3 Modular Electrical KEMA Certificate RCCBUS$ 7 - 10MOQ: 120 Pieces
-
AUR3 With Semko Certificate Circuit Breaker Rccb Type aUS$ 7 - 9MOQ: 200 Pieces
Function and Feature:
Protection against earth/leakage current and residual current,fuction of isolation
Protection against fire hazard caused by insullation faults
Residual fault current indication
10kA high breaking capacity
Pin/fork type busbar terminal connection
Fire resistant plastic parts withstand abnormal heating and strong impact
Automatically disconnect the circuit when earth/leakage current occurs
or exceeds the rated sensitivity
Independent of power supply and line voltage,and free from external interference
Voltage fulctuation
35mm DIN rail mounting
Technical Data:
Rated current(In):16,20,25,32,40,63,80A
Rated voltage(Un):230/240VAC,400/415VAC
Rated residual current:10mA,30mA,100mA,300mA
Number of poles:1P+N(2P),3P+N(4P)
Electrical endurance:10000cycles
Mechnical endurance:20000cycles
Terminals:pillar type
Cable termination:35mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 61008-1
Catalog No. CTN Size:47.5x25.6x17.5cm
| In(A) | 30mA | 100mA | 300mA | QTY/Box | QTY/CTN |
| Model No. | Model No. | Model No. | PCS | PCS | |
| 16A | AUR3 1P+N 16A | AUR3 1P+N 16A | AUR3 1P+N 16A | 1 | 60 |
| 25A | AUR3 1P+N 20A | AUR3 1P+N 20A | AUR3 1P+N 20A | 1 | 60 |
| 32A | AUR3 1P+N 32A | AUR3 1P+N 32A | AUR3 1P+N 32A | 1 | 60 |
| 40A | AUR3 1P+N 40A | AUR3 1P+N 40A | AUR3 1P+N 40A | 1 | 60 |
| 63A | AUR3 1P+N 63A | AUR3 1P+N 63A | AUR3 1P+N 63A | 1 | 60 |
| 80A | AUR3 1P+N 80A | AUR3 1P+N 80A | AUR3 1P+N 80A | 1 | 60 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our 2 pole earth leakage circuit breaker have KEMA,TUV,SEMKO,CB and CE certificates.
