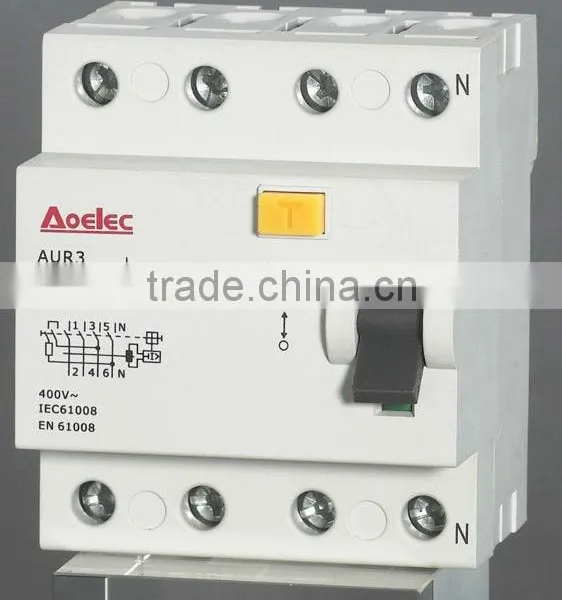

AUR3 KEMA certificate with high breaking capacity 30mA RCCB

Function and Feature:

Protection against earth/leakage current and residual current,fuction of isolation

Protection against fire hazard caused by insullation faults

Residual fault current indication

6kA high breaking capacity

Pin/fork type busbar terminal connection

Fire resistant plastic parts withstand abnormal heating and strong impact

Automatically disconnect the circuit when earth/leakage current occurs

or exceeds the rated sensitivity

Independent of power supply and line voltage,and free from external interference

Voltage fulctuation

35mm DIN rail mounting

Technical Data:

Rated current(In):16,20,25,32,40,63,80A

Rated voltage(Un):230/240VAC,400/415VAC

Rated residual current:10mA,30mA,100mA,300mA

Number of poles:1P+N(2P),3P+N(4P)

Electrical endurance:10000cycles

Mechnical endurance:20000cycles

Terminals:pillar type

Cable termination:35mm²

Torque of screw:2.5Nm

IP degree:IP20

Standards:IEC/EN 61008-1

Catalog No.                                                                                                            CTN Size:47.5x25.6x17.5cm
