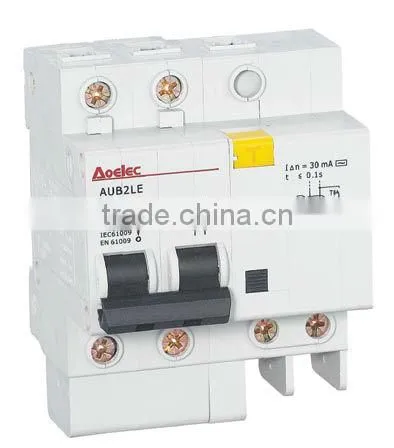

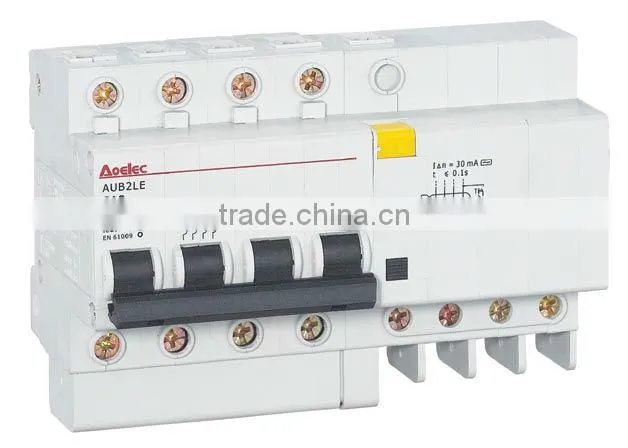

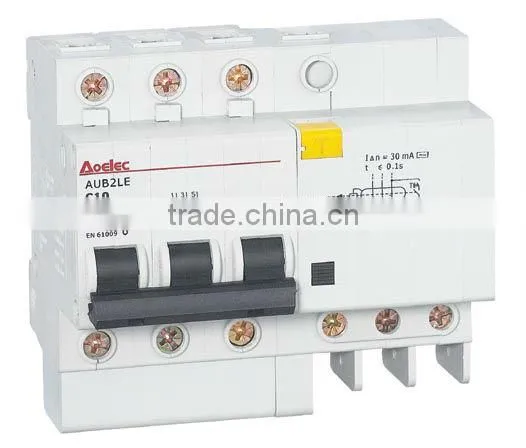

Help CenterAUB2LE Modular Electronic RCD/MCB Combined Device
Related Products
-
AUB2LE CCC Certificate With 3ka Earth Leakage Circuit BreakerUS$ 3 - 6MOQ: 100 Pieces -
AUB2LE Electronics Combined RCD and MCBUS$ 5 - 8MOQ: 1000 Pieces
-
AUB2LE With CE Mark RCBO Electrical ProductsUS$ 5 - 6MOQ: 100 Pieces
-
AUB1R With Semko Certificate RCBO 6kAUS$ 5 - 10MOQ: 120 Pieces
-
AUB3L Electronics RCD/MCB Combined DeviceUS$ 3 - 10MOQ: 200 Pieces
Function and Feature:
Provides protection against earth fault/leakage current,short circuit,overload,function of isolation
Provides complementary protection agaginst direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection for household and commercial distribution systems
Handle can be locked with pad-lock prevent unwanted operation for safety
Technical Data:
Rated current(In):6,10,16,20,25,32,40,50,63A
Rated voltage(Un):230/240VAC
Breaking capacity(Icn):6kA
Rated frequency:50/60Hz
Rated residual current:30mA,100mA,300mA
Tripping characteristics:B,C
Number of poles:1P+N
Electrical endurance:4000 cycles
Mechanical endurance:10000cycles
Terminals:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP 20
Standards:IEC/EN 61009-1
Catalog No. CTN Size:48x26x18cm
| In(A) | 30mA | 100mA | 300mA | QTY/Box | QTY/CTN |
| Model No. | Model No. | Model No. | PCS | PCS | |
| 6A | AUB2LE 3P 6A | AUB2LE 3P 6A | AUB2LE 3P 6A | 1 | 40 |
| 10A | AUB2LE 3P 10A | AUB2LE 3P 10A | AUB2LE 3P 10A | 1 | 40 |
| 15A | AUB2LE 3P 15A | AUB2LE 3P 15A | AUB2LE 3P 15A | 1 | 40 |
| 16A | AUB2LE 3P 16A | AUB2LE 3P 16A | AUB2LE 3P 16A | 1 | 40 |
| 20A | AUB2LE 3P 20A | AUB2LE 3P 20A | AUB2LE 3P 20A | 1 | 40 |
| 25A | AUB2LE 3P 25A | AUB2LE 3P 25A | AUB2LE 3P 25A | 1 | 40 |
| 32A | AUB2LE 3P 32A | AUB2LE 3P 32A | AUB2LE 3P 32A | 1 | 40 |
| 40A | AUB2LE 3P 40A | AUB2LE 3P 40A | AUB2LE 3P 40A | 1 | 40 |
| 50A | AUB2LE 3P 50A | AUB2LE 3P 50A | AUB2LE 3P 50A | 1 | 40 |
| 63A | AUB2LE 3P 63A | AUB2LE 3P 63A | AUB2LE 3P 63A | 1 | 40 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
