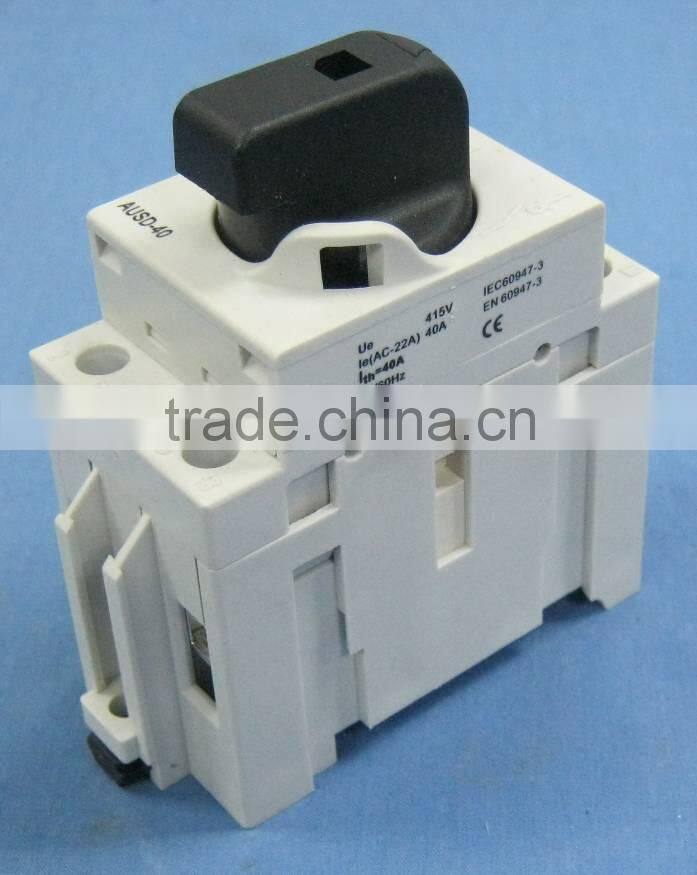

Help CenterAUSD-40 up to 40A Electrical Semko Certificate Switch Disconnector
Related Products
-
AUSD-40 up to 40A CE Certificate Switch DisconnectorUS$ 4 - 7MOQ: 200 Pieces -
AUSD-125 up to 125A Electrical Rotary SwitchesUS$ 4 - 6MOQ: 200 Pieces
-
AUSD-40 up to 40A Electrical Rotary SwitchesUS$ 4 - 6MOQ: 200 Pieces
-
AUSD up to 40A Three Phase Rotary SwitchUS$ 4 - 6MOQ: 200 Pieces
-
AUSD up to 40A Electrical Din Rail Rotary SwitchesUS$ 4 - 6MOQ: 200 Pieces
Function and Feature:
AUSD switch disconnector allow breaking of equipment loads up to 600VAC
It's used for the following purposes:
main switch
switch for motors
saftey switch
disconnecton
Technical Date:
Rated current: 16, 25, 32 and 40A
Rated insulation voltage(Ui):800V
Rated thermal current at 40 °C (Ith):16,20,25,40A
Rated frequency:50/60Hz
Number of poles:3 poles
Utilization category:AC 21 A,AC, 22A,AC 23A
High electrical and mechanical endurance
Double break contacts
Mounting;35 DIN rail mounting,panel mounting,screw mounting
Cable termination:10mm2
protection: IP20
Standard: IEC60947-3
Catalog No. CTN Size:44.5x23.5x119cm
| Model | Rated Current | QTY/Box | QTY/CTN |
| AUSD-16 | 16A | 6 | 60 |
| AUSD-20 | 20A | 6 | 60 |
| AUSD-25 | 25A | 6 | 60 |
| AUSD-40 | 40A | 6 | 60 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our Switch Disconnector havs SEMKO,CB and CE certificates.
