Home > Products > AC Contactor > LC1-D09 with Semko certificate Contactor

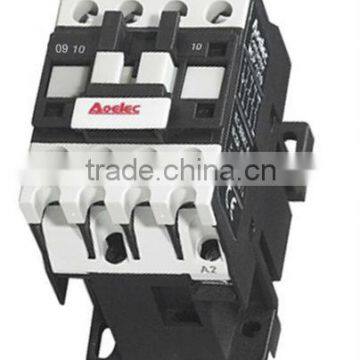

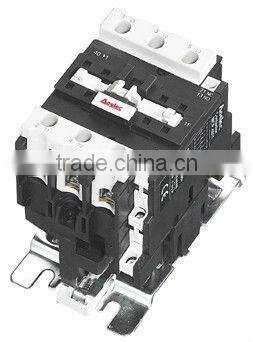

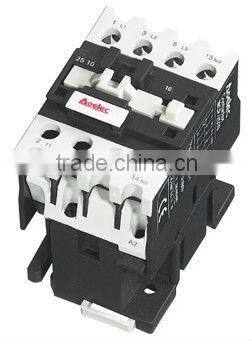

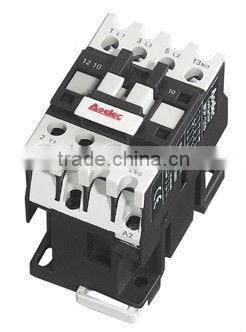

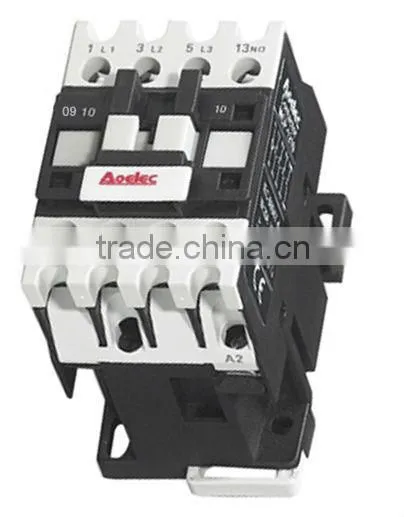

LC1-D09 with Semko certificate Contactor
- 50000 Piece / Pieces per Month
- Ningbo/shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | AOELEC | Model Number: | MCP-09 |
Electricity Type: | AC | Number of Pole: | 3 | Phase: | 3 |
Main Circuit Rating Voltage: | 380v | Main Circuit Rating Current: | 400a |
Product Description
Specifications
1.AC contactors for industry use2.CB&CE&SEMKO certificates
3.retarding materials enclosure
4.LC1-D09 contactor
Application:
MCP AC Contactor is suitable for using in the circuits of AC 50Hz or 60Hz,rated insulating voltage 660V,rated operating voltage up to 690V,rated operating voltage 380/400V in AC-3 type,rated operating current up to 95A,for marketing,breaking,frequently starting & controlling the AC motor.Combined with the auxiliary contact block,timer delay & mechnical interlocking device etc.it becomes the delay contactor,mechnical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC60947-4.The product is Semko certified by INTERTEK.
Technical Data:
Rated operating current(A):9A, 400V, AC-3
3.5A, 400V, AC-4
6.6A, 600V, AC-3
1.5A, 600V, AC-4
Rated working voltage(Ue):400V AC,660V AC
Rated operational power at AC3:230V,2.2kw
400V,4.0kw
660V,5.5kw
Conventional thermal current(Ith):20A(Main contacts)
10A(coil)
Rated control voltage:24V,48V,110V,230V,400V
Electrical endurance:1000000 times,AC3
200000 times,AC4
Mechnical endurance:10000000 times
Protection degree:IP20
Number of pole:3P,4P
Number of auxiliary:1NO or 1NC,3P
2NO+2NC or 4NO,4P
Standards:IEC60947-4-1,EN60947-4-1
Catalog No. CTN size:42x26x20CM
Model | QTY/Box | QTY/CTN | N.T(g) |
MCP0910-24V 3P | 1 | 50 | 332 |
MCP0910-48V 3P | 1 | 50 | 332 |
MCP0910-110V 3P | 1 | 50 | 332 |
MCP0910-230V 3P | 1 | 50 | 332 |
MCP0910-400V 3P | 1 | 50 | 332 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
