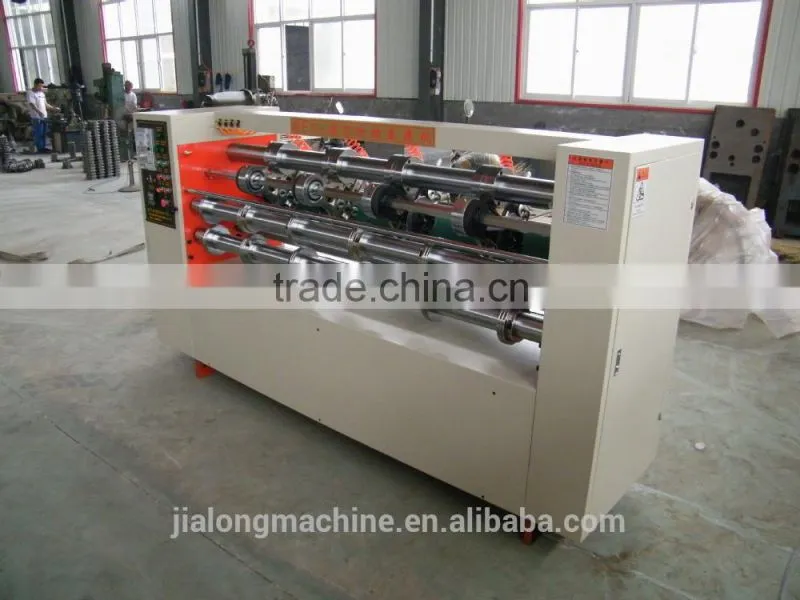

Help CenterBFY Series Carton Thin Blade Slitter Scorer Machine,carton Box Making Machine
Related Products
-
Carton Box Making Machine ,thin Blade Slitter Scorer MachineUS$ 2,000 - 2,000MOQ: 1 Carton -
Full Automatic NC Computer Thin Knife Slitting and Creasing MachineUS$ 2,000 - 2,000MOQ: 1 Carton
-
BFY Thin Blade Slitter Scorer Machine(bottom Can Move Type)US$ 2,000 - 2,000MOQ: 1 Carton
-
BFY Thin Blade Slitter Scorer Machine Electric Adjust Knife TypeUS$ 2,000 - 2,000MOQ: 1 Carton
-
BFY-Thin Blade Slitter Scorer,carton Box Slitter Scorer MachineUS$ 2,000 - 2,000MOQ: 1 Carton
Thin knife cutting part adopt newly type thin blade high-speed cutting machine,cardboard incision level off is smooth without crashing collapsing; Pneumatic sharpening; this part to achieve production process to be automatic and manual sharpening, sharpening time and clearance can be set to ensure the blade, time blade sharp.
The machine is equipped with electric axial displacement device, effective cooperation of paper offset;
Manually adjust the cardboard specifications, simple and practical;
Transmission of the synchronous belt, high accuracy
Machine dimension (mm) |
3200×1100×2200 |
3500×1100×2200 |
3800×1100×2200 |
Power (KW) |
5.5/7.6 |
5.5/7.6 |
5.5/7.6 |
Max slitting width (mm) |
1800 |
2100 |
2300 |
Min slitting width (mm) |
140 |
||
Min scoring width (mm) |
80 |
||
Scoring height (mm) |
0-12 |
||
Blade (mm) |
φ200×122×1.2 |
||
Blade & Scoring Composed Type |
Three blade Four scoring/ Four blade Six Scoring |
||
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
