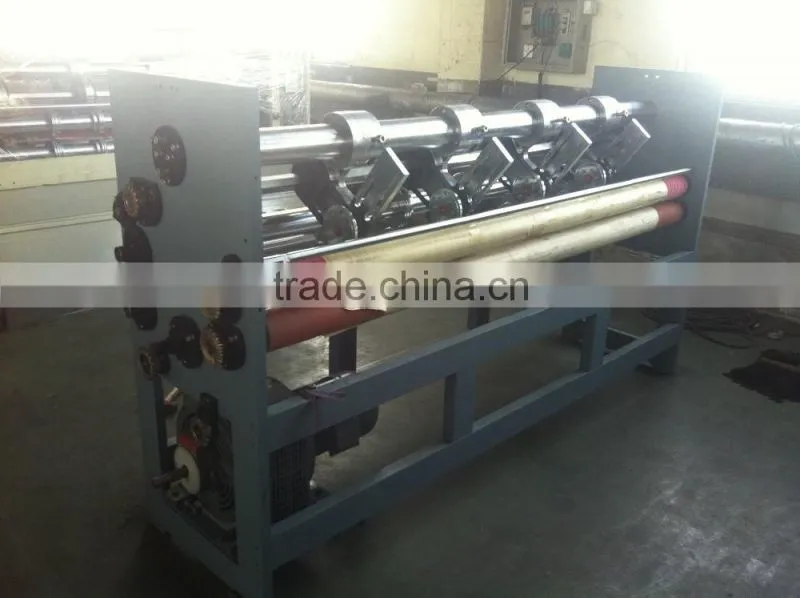

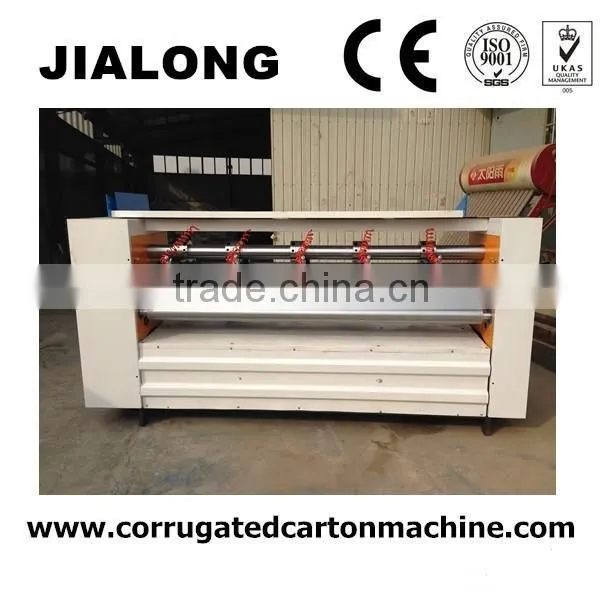

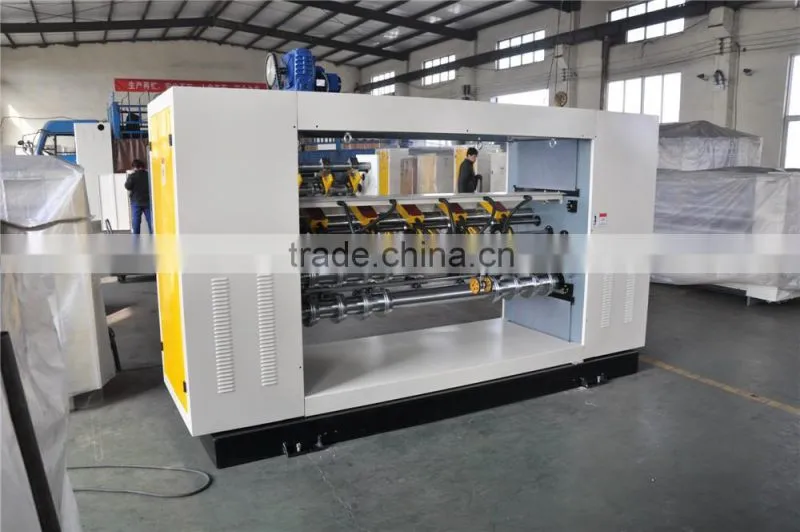

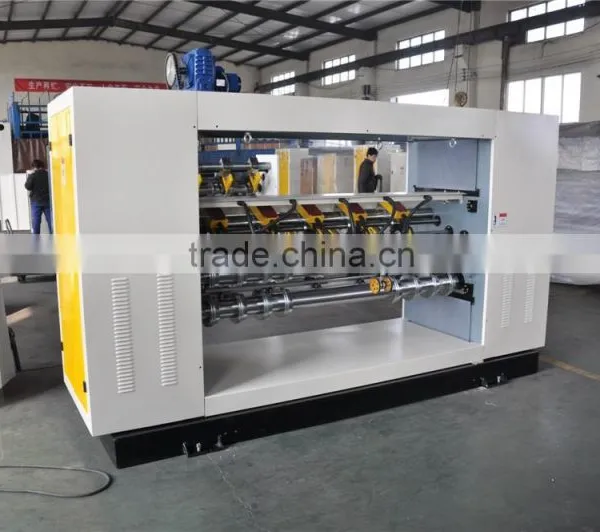

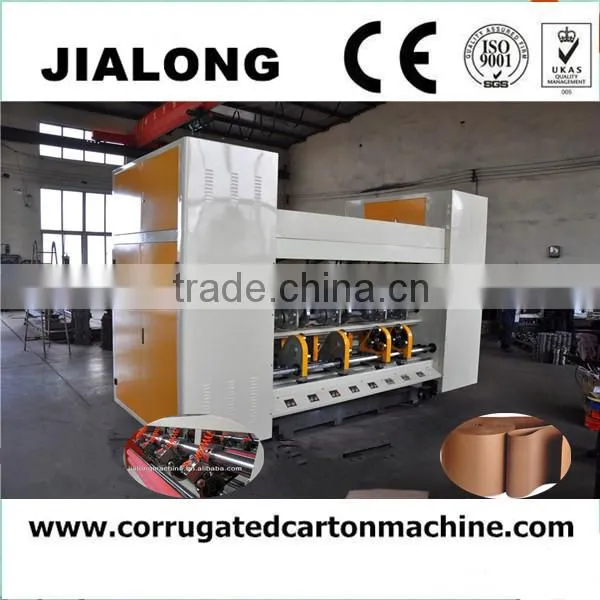

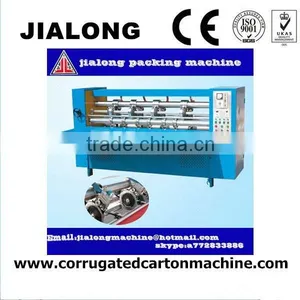

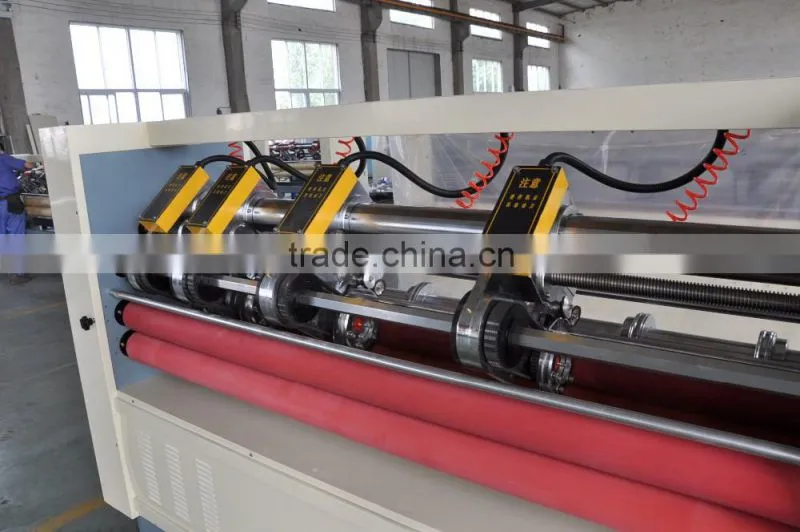

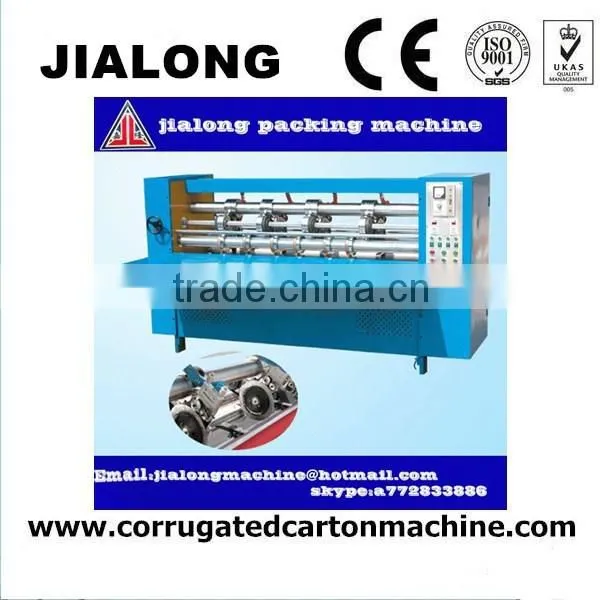

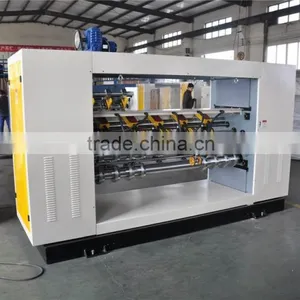

Help CenterJL-1 BFY Cardboard Thin Blade Slitter Scorer Packing Machine
Related Products
-
JL-1 Top Sale BFY Series Thin Blade Slitter Scorer Machine/3/5 Ply Automatic Corrugated Board PlantUS$ 2,000 - 2,000MOQ: 1 Carton -
JL-1 Paperboard Carton Sharpen Blade Machine/BFY Series Thin Blade Slitter Scorer MachineUS$ 2,000 - 2,000MOQ: 1 Carton
-
JL-1 BFY Paperboard Thin Blade Slitter/Corrugated Cardboard Thin Blade Slitter Scorer/Carton Box Manufacturing MachineUS$ 2,000 - 2,000MOQ: 1 Carton
-
JL-1 BFY Corrugated Box Lifting Thin Blade Slitting Machine, Type Knife Slitter Scorer Machine/ Carton Box Forming MachineUS$ 2,000 - 2,000MOQ: 1 Carton
-
JL-1 BFY Thin Blade Slitter Scorer Machine Slitting And Scoring MachineUS$ 2,000 - 2,000MOQ: 1 Carton
Main characteristic:
1, Adopt double pre-scoring when working, then do final scoring, reduce scoring Seam broken, suit for poor quality carton sheet manufacture.

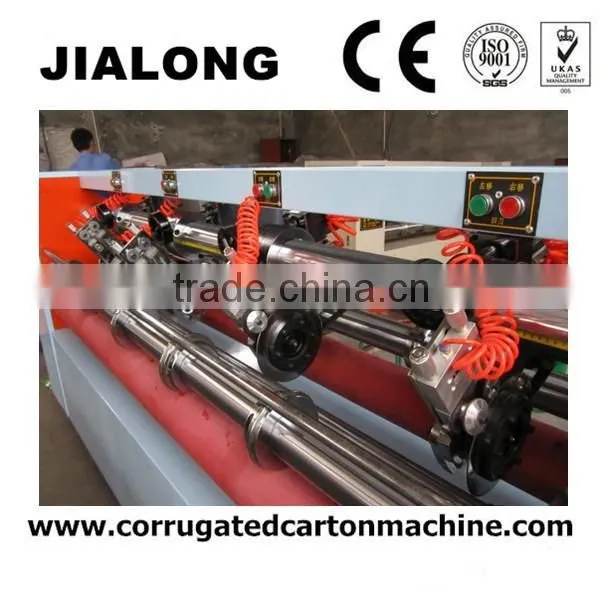

2, Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
3, Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4, Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
5, Adopt China famous brand or imported electric element, dependable performance.
Main Technical Parameter:
Model |
Unit |
1800 |
2200 |
2500 |
3000 |
Inboard width |
mm |
1800 |
2200 |
2500 |
3000 |
verage size |
mm |
1700×3000 |
2100×3000 |
2400×3000 |
2900×3000 |
Min.finish size |
mm |
130×450 |
130×450 |
130×450 |
130×450 |
Processing speed |
sheets/min |
0-60. |
0-60. |
0-60. |
0-60. |
Power of main motor |
kw |
3 |
3 |
3 |
4 |
Weight |
Kg |
800 |
1000 |
1500 |
2000 |
Size for whole machine |
mm |
2400×1400×1500 |
2800×1400×1500 |
3100×1400×1500 |
3600×1400×1500 |
Color |
|
Ivory |
Ivory |
Ivory |
Ivory |
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
After Sales Service
We deeply know that, excellent and effcient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
fessional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipments will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
3.All the equipments are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.Affer the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clinets Complaint: A speacias round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours affer receiving your complaints by phone call or going to site.
