Home > Products > Shoring Prop > Scaffolding Shoring Products For Bulilding
Scaffolding Shoring Products For Bulilding
- 50000 Piece / Pieces per Month
- Nanjing Port
- T/T
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | ORIENTAL | |
Model Number | Scaffolding Parts |
Product Description

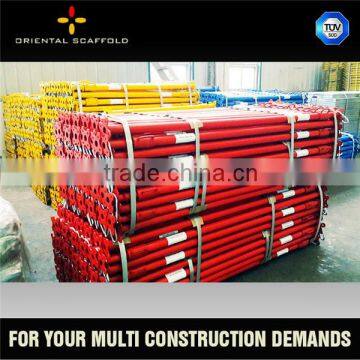

Prop is a main part in Formwork project, A complete set of steel prop consists of an inner tube, an outer tube, a prop nut, a Jack plate and a Base plate. it can be adjusted to any length inside its range.
Material: Q195 - Q235 ERW Pipe or Seamless Pipe.
Loading Capacity For Prop Nut: No less than 65 KN.
Heavy Duty Prop | ||||
Art. | Min (m) | Max (m) | Inner Tube (mm) | Outer Tube (mm) |
OSP-H-320 | 1.80 | 3.20 | 48x2.0 | 60x2.0 |
OSP-H-340 | 2.10 | 3.40 | 48x2.0 | 60x2.0 |
OSP-H-400 | 2.20 | 4.00 | 48x2.0 | 60x2.0 |
OSP-H-390H | 2.40 | 3.90 | 48x2.3 | 60x2.0 |
OSP-H-400H | 3.50 | 4.00 | 48x2.3 | 60x2.0 |
OSP-H-500H | 3.00 | 5.00 | 48x3.5 | 60x3.5 |
Light Duty Spanish Prop | ||||
Art. | Min (m) | Max (m) | Inner Tube (mm) | Outer Tube (mm) |
OSP-H-140S | 0.80 | 1.40 | 40x1.8 | 48x1.8 |
OSP-H-360S | 2.00 | 3.60 | 40x1.8 | 48x1.8 |
OSP-H-400S | 2.20 | 4.00 | 40x1.8 | 48x1.8 |
OSP-H-500S | 3.00 | 5.00 | 40x1.8 | 48x1.8 |
Light Duty Italian Prop | ||||
Art. | Min (m) | Max (m) | Inner Tube (mm) | Outer Tube (mm) |
OSP-H-220i | 1.60 | 2.20 | 48*2.0 | 56*2.0 |
OSP-H-310i | 1.80 | 3.10 | 48*2.0 | 56*2.0 |
OSP-H-360i | 2.00 | 3.60 | 48*2.0 | 56*2.0 |
OSP-H-400i | 2.20 | 4.00 | 48*2.0 | 56*2.0 |
Bridge Leg | |||
Art. | Length (feet) | Weight (Kg) | Detail |
OSP-BL-1 | 8 | 27.50 | |
OSP-BL-2 | 10 | 32.61 | |
OSP-BL-3 | 12 | 37.72 | |
OSP-BL-4 | 14 | 42.83 | |
OSP-BL-5 | 16 | 47.94 | |
OSP-BL-6 | 20 | 58.16 |
Packing Details: Prop Nut will be packed with wooden cases or FIBC bags. Anti-rust Oil will be spraied on black products.
1300 pcs of Prop Nut are packed in one wooden case, 20 cases for one 20' GP.
ETD: 20 days after deposit for the first container, 5 more days for each one more container.
• Your inquiry to our product will be replied within 24hours.
• Experienced sales team are able to answer all your inquiries.
• 10 years experienced tech. team could meet all your demands.
• OEM services could be provided, we are willing to marking logo or paste stickers for you.
• Good after-sale service offered, multiple solutions will be provided for problem.
ORIENTAL METALWORK CO., LTD. was a Scaffolding and Formwork products exporter located in Nanjing, the center of Chinese scaffolding manufacturing and exporting. From 2006 till now, our products has been sent to more than 20 countries from Southeast Asia, North and South America, Europe, Australia and North Africa. With yes of collected experience in oversea sales, we offer a complete product range which fills all needs and enquiries to clients from all area and projects with all conditions. Our main products - Scaffolding systems, stages, fences as well as couplers and other accessories are available in steel, aluminum and fiber glass. With ORIENTAL METALWORK you will always count on our thorough services, professional technical support and high quality products.
