Specifications
- Shaftless mill roll stand
- Multipoint brake system
- Factory price and reliable quality
- Easy operation
- Save labor

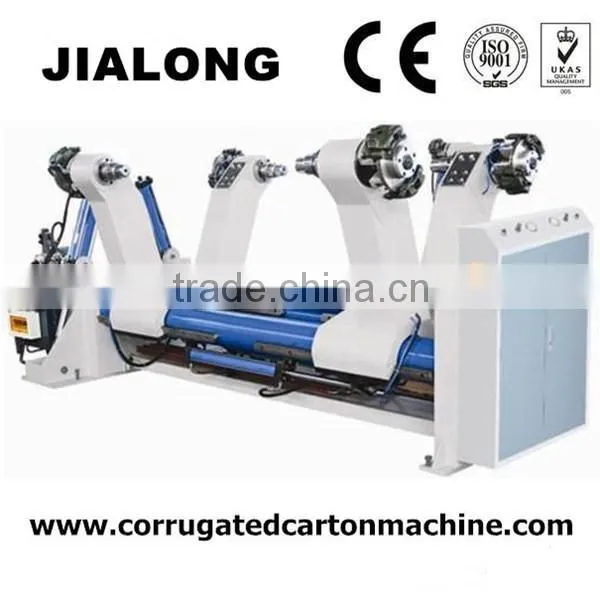

Hydraulic shaftless mill roll stand
- The shaftless mill roll stand is symmetrical structure design, available to load 2 paper roll at the same time on both side and change paper roll without stopping the line.
- All the operation like lifting, clamping, loosening, traverse moving etc. are driven by hydraulic.
- It equips with multipoint brake system so as to adjust web tension conveniently.
| General parameter | |||
| Max width of loading paper | 2000mm | ||
| Dia. of loading paper roll | Φ350 - Φ1500mm | ||
| Loading capacity | 5T/side | ||
| Dia. of main axis | Φ270mm | ||
| Pressure of compressed ail supply | 0.4-0.8Mpa | ||
| Hydraulic system parameter | |||
| Pressure | 16-18Mpa | ||
| Hydraulic lifting cylinder working scope | Φ100mm*440mm | ||
| Traverse moving/hydraulic clamping cylinder working scope | Φ63mm*1300mm | ||
| Driving motor | 4KW | 380V |
50Hz
|
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
