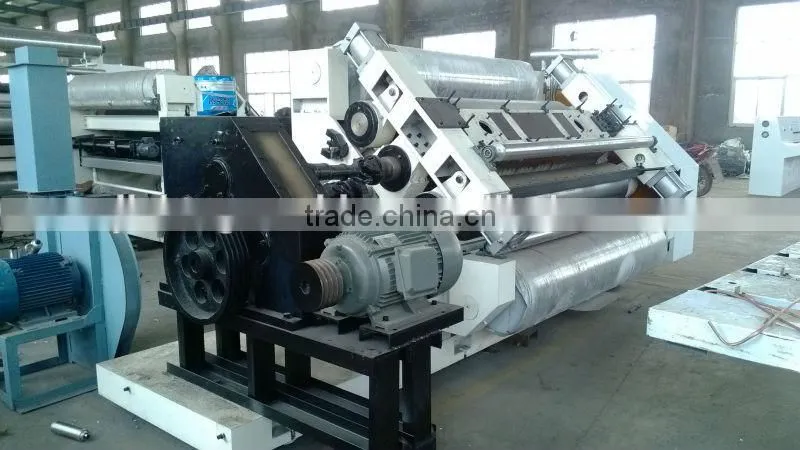

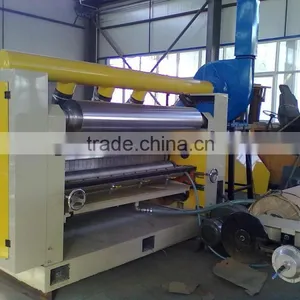

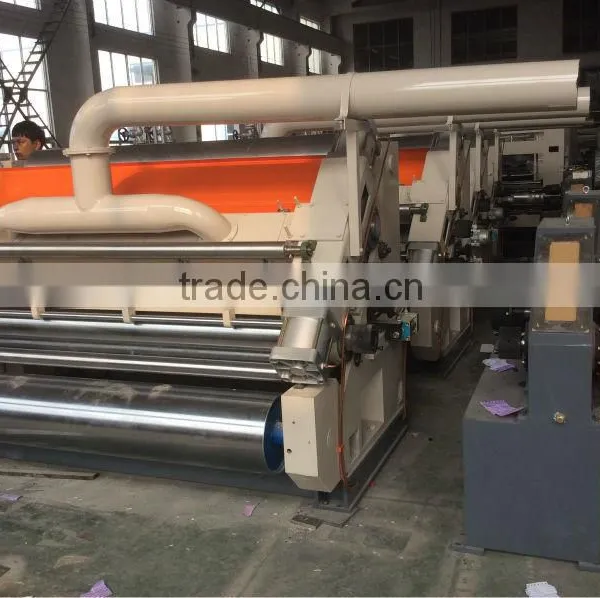

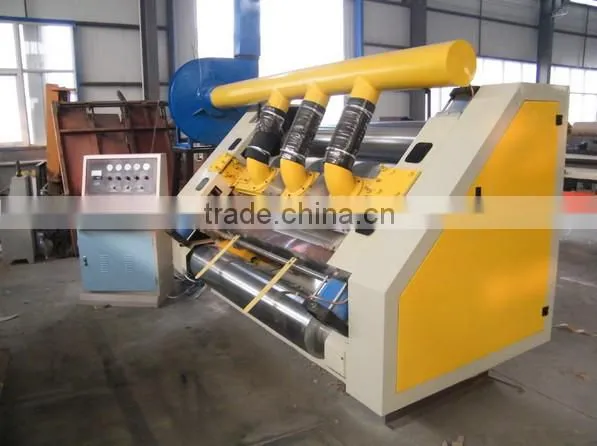

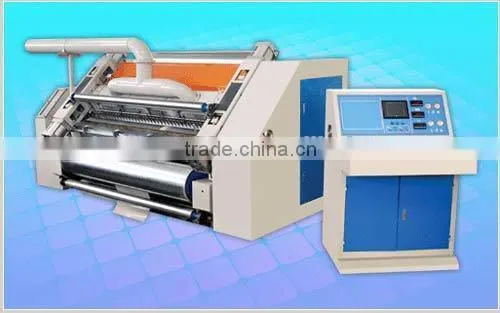

Help CenterGIGA LX 410s Corrugated Box Single Facer Carton Machine
Related Products
-
![[RD-BC-405S-2000] Single Facer Corrugated Box Line for Carton Machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[RD-BC-405S-2000] Single Facer Corrugated Box Line for Carton MachineUS$ 10,000 - 10,000MOQ: 1 Carton -
3/5/7 Layer Corrugated Cardboard Production Line Shaftless Mill Roll Stand Machine in DongGuang HeBei of ChinaUS$ 1,000 - 1,000MOQ: 1 Carton
-
High Efficiency Carton Box Machinery Corrugated Single Facer & Mill Roll Stand & Paper Cutting MachineUS$ 5,000 - 5,000MOQ: 1 Carton
-
Cangzhou Jialong Single Face Mill Roll Stand Sheet Cutter Corrugated Paper Making Group MachineUS$ 1,000 - 1,000MOQ: 1 Carton
-
Carton Machine/Mill Roll Stand/corrugated Cardboard Production Line/carton Box Making Machine Prices (jzy-Z6132)US$ 1,000 - 1,000MOQ: 1 Carton
LH Vaccumm absorb type 320/360 High Speed Finger-less Type Single Facer
Gimbal driver system. Individual gear type drive box
Specification:
Max. machine speed |
120m/min |
Economic speed |
100m/min |
Max. working width |
1600mm |
Max working steam pressure: |
1.0-1.3Mpa |
Steam temperature |
160—210 centigrade |
Power requirements: |
380V, 50Hz |
Diameter of corrugated roller |
320mm |
Diameter of Press roller . |
325mm. |
Diameter of preheater roller |
300mm |
Diameter of Glue roller |
215mm |
Diameter of doctor roller |
105mm |
Machine Introduction:
*Design speed: 120m/min.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.320mm with a drum.
*Press roller: Dia.325mm. with drum.

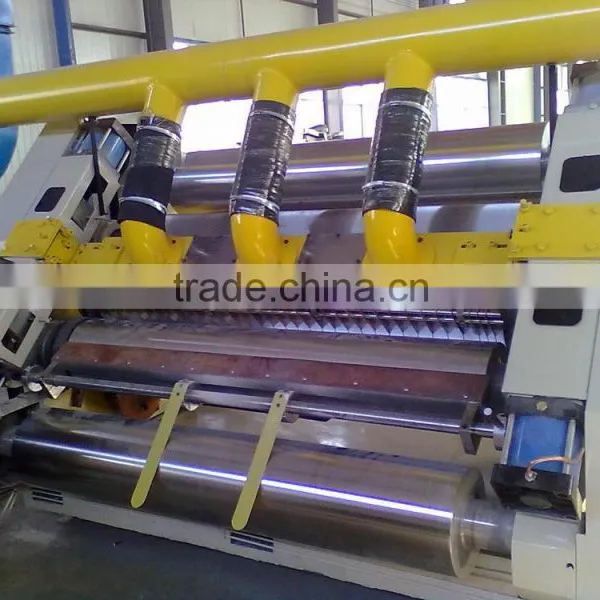

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
*With preheating and preconditioning rollers.
Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic flexo ink printing slotting machine, automatic flexo ink printing die cutting machine, semi-auto flexo ink printing slotting machine, semi-auto water ink printing die cutting machine ,slicing cardboard and pressing line machine, rotary die cutting machine, slotting machine, carton stapler, case gluing machine, impressing machine and other relevant machinery.
