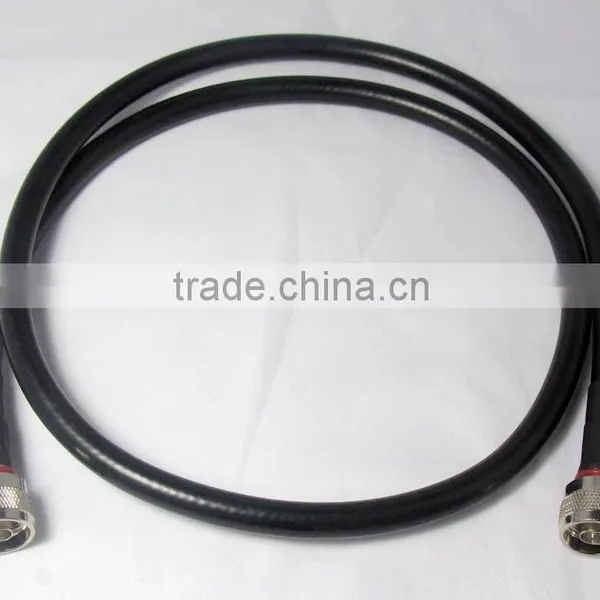

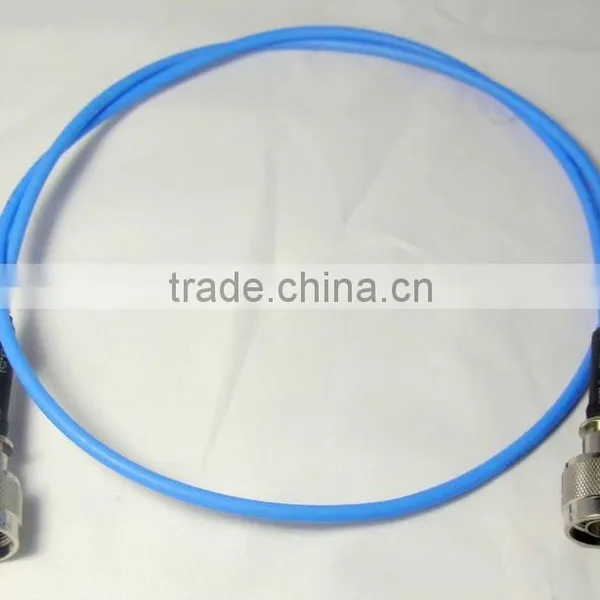

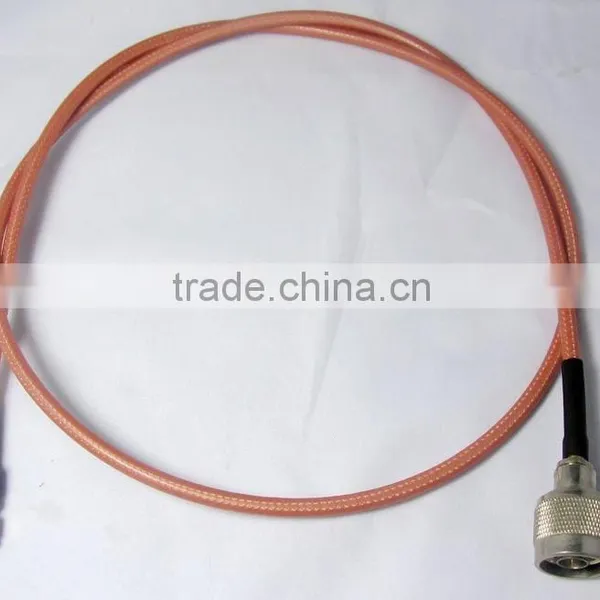

Help CenterRF Testing Wire Cable Assembly SMA Male Female Connector
Related Products
HTMICROWAVE Coaxial Cable can meet:
1. Competitive Price
2. Good Qulity
3. PPT Delivery
Cable Assembly Applications:
1.Polyethylene Coaxial Cable Assemblies are used for equipment connection, base station transmitter, receiver and antenna connection between the main feeder and so on.
2.PTFE Coaxial Cable Assemblies are used for industrial and communication testing, devices jumper connection, indoor distribution and so on.
3.LD PTFE Cables are used for communication, digital transmission, microwave testing, military equipment, radio and television, research institute(high requirements about phase-precision, low-loss).
| 32051 Cable Assembly--85-110MHz N-M/N-M |
| P/N:HT.CA-0121-2201 |
| Testing Cable Assembly specifications: |
| 1. Frequency Range(MHz): 85-110 |
| 2. VSWR(max): 1.10 |
| 3. Insertion Loss(dB):≤0.035xL+0.1 |
| 4. Connectors: N-M/N-M |
| 5. Cable Connection: Inner conductor welding, outer conductor welding |
| 6. Dimension(M): Per the customers' requirement |
| Cable Electrical & Mechanical specifications: |
| 1. Impedance(Ω): 50 2. Capacitance(Pf/M): 85.3 |
| 3. Time Delay(ns/m): 4.5 4. Withstanding Voltage(rms/min): 3000V |
| 5. Phase Stability: 6. Velocity of Propagation: 78% |
| 7. Operating Temp.(°c): -55- +200 8. Minimum Bend Radius(mm): 30 |
| 9. Temp. Phase Stability: 600PPM 10. Shielding Efficiency(dB): 110 |
| Cable Attenuation: |
| 1. Insulating Layer: Microhole PTFE 2. Inner Conductor(mm): φ2.05 |
3. Outer Diameter(mm): φ7.62 4. Attenuation(dB): 0.035 |
HT Microwave Co., Ltd., established in 1992, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturer and designing company.
Our products are widely used in GSM,DCS,CDMA,3G communication system, satellite orientation, radar and military fields.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator, Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Why Choose Us?
1. OEM/ODM, customers' design are available.
2. Sufficient stock for your urgent demand.
3. Within 12 hours' reply guarantee.
4. Fast delivery and volume production capacity.
Transportation(By Sea, By Air,DHL, Fedex, TNT & EMS):
