Specifications
- Good fingerless type single facer line
- High efficiency and good working effect
- Easy operation
- Good service
- CE
[RD-BC-405S-1800] corrugated cartonboard production line including single facer mill roll stand and slitting cutting machine

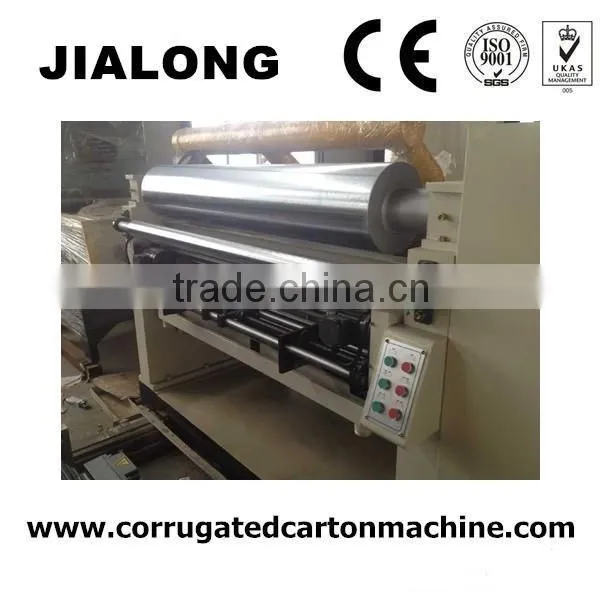

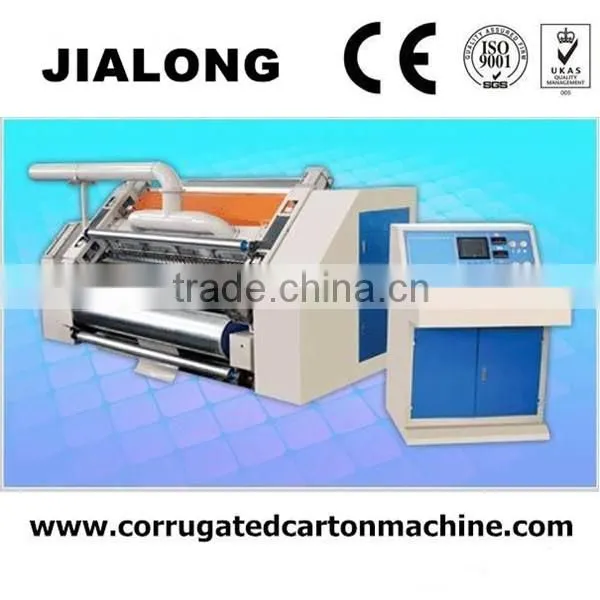

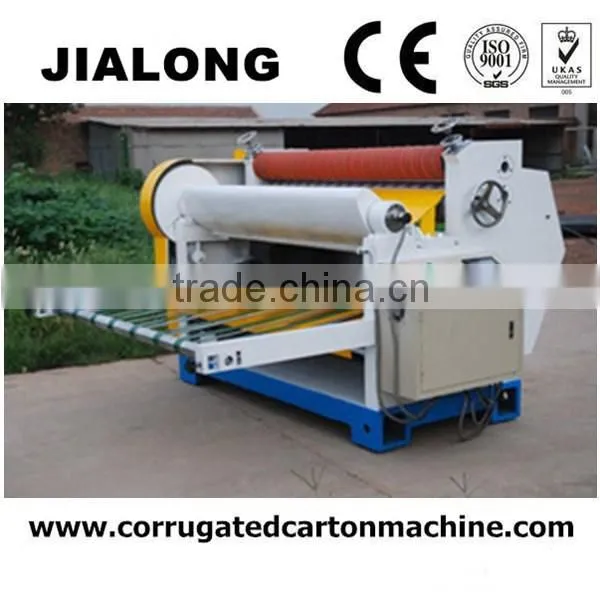

Single facer machine :
Features:
- Cardboard transmission is achieved by the method of vacuum suction, it equipped with high pressure air blower as well as a muffler, with adjustable of air blowing rate, to keep flute profiles stable under high speed.
- All the corrugated rolls, pressure roll, gluing roll are pneumatically controlled, and the air control unit and electrical control unit are concentrated in on cabinet.
- The main structure and frame are made of cast iron, up to the thickness of 200mm, equipped with independent gear box and cardan drive with submerged lubrication system to avoid noise and run stable.
- The shafts of corrugated and pressure roll are all heat resisting and lubricated by lubricating grease.
- The corrugated roll is made of 48CrMo alloy steel, with the treatment of hardening and tempering, grinding, laser-quenching, to reach the hardness of HRC60o
- The pressure roll is made of medium carbon steel, with the treatment of hardening and tempering, grinding and chrome plated, the roll up and down is controlled by cylinder.
- The gluing roll is treated with grinding, mesh snicked and chrome plated on the surface, while the doctor roll has the same treatment.
- The gluing unit could be taken out integrally which is convenient for gluing roll maintenance and replacement. the gluing wall is sliding plate structure, pneumatic control glue supplying, the glue quantity is digital displayed.
- The gluing unit is available to run independently or non-independently.
- The pre-heater is made of seamless steel tube, and connected by flexible metal hose.
- There are 5 kinds of fingerless type single facer machine for you to choose from:1400mm,1600mm,1800mm,2000mm,2200mm. It depends on the width of the cardboard you need.
Specification:
| General parameter | |||
| Design speed | 100m/min | ||
| Design width | 1800mm | ||
| Temperature scope | 160-200oC | ||
| Pressure of compressed air supply | 0.4-0.9Mpa | ||
| Pressure of steam | 0.8-1.3Mpa | ||
| Corrugating type | UV or UVV | ||
| Diameter of rollers | |||
| Corrugating roller | Φ280mm | ||
| Pressure roller | Φ284mm | ||
| Gluing roller | Φ215mm | ||
| Pre-heater roller | Φ320mm | ||
| Electrical parameter of motors | |||
| Main drive motor | 7.5KW | 380V | 50Hz |
| Air suction motor | 7.5KW | 380V | 50Hz |
| Glue reducer motor | 100W | 380V | 50Hz |
| Gluing roller gap adjusting motor | 250W | 380V | 50Hz |
| Glue pump motor | 2.2KW | 380V | 50Hz |
Welcome to our company to have a visit.
Shaftless Mill Roll Stand:
- Symmetrical structure design, available to load 2 paper roll at the same time on both side and change paper roll without stopping the line.
- All the operation like lifting, clamping, loosening, traverse moving etc. is driven by hydraulic.
- It equips with disc brake system so as to adjust web tension conveniently.
- Max paper width: 2000mm
- Cutting precision: ±2.5mm
- Cross cutting length: 400-2400mm
- Equipped with 4 slitting knives
- Reasonable mechanical structure, with strong rigidity and good stability, have long performance life.
- All operation to be done on the same side, which is convenient to operate
- Equipped with photoelectricity counter.
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds
of carton equipments for 30 years.(with export license)
2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in No.71-1 Huiquan Road Pujiang County,
Zhejiang Province, China. It is about half hour from Yiwu International airport and 3 hours from Shanghai Pudong International Airport by car.
We can pick you up if you need, welcome to visit our factory.
3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard
production line, high speed printing machine, ordinary printing machine, single facer,
rotary die cutter and other corrugated cardboard production equipment.
4.Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based”
corporate purpose always meet users’ requirements as our sole purpose,
providing the products with excellent quality, professional technology.
To quality controlling from the very beginning to the very end .
1)All raw material we used are environmental-friendly
2)skillful workers care every details in handling the producing and packing process
3)Quality control department specially responsible for quality in each process.
5.Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia,
EU and other countries and throughout the country. Product quality and enterprise
reputation get the high praise at home and aboard.
6.Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading
