Cuplock System, one of the most popular scaffolding system in the world. With Top Cup, Bottom Cup and Blad, different size of Standards, Ledgers, Braces are mounted for any construction use.
Standard
Hot-dip galvanized steel. Ø 48.3 x 3.2 mm. Equipped with Top Cups and Bottom Cups in which Transoms, Ledgers and Braces are to be mounted. Distance between Rosettes: 500 mm.
| Art. |
Length (m) |
Weight (Kg) |
Detail |
| OSC-S-050 | 0.50 | 3.53 | |
| OSC-S-100 | 1.00 | 6.31 | |
| OSC-S-150 | 1.50 | 9.05 | |
| OSC-S-200 | 2.00 | 11.82 | |
| OSC-S-250 | 2.50 | 14.57 | |
| OSC-S-300 | 3.00 | 17.34 |

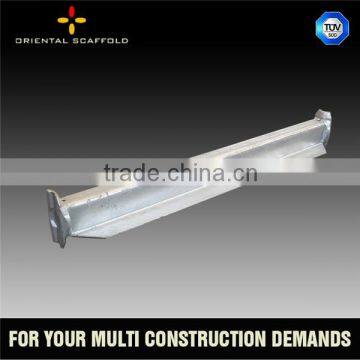

Ledger
Hot-dip galvanized steel. Ø 48.3 x 3.0 mm. Mounted into the space between Top Cup and Bottom Cup with the Blade, thus securing a rightangled scaffold. Serves as a guardrail.
Art. |
Length |
Weight |
Detail |
OSC-L-060 |
0.6 |
2.47 |
|
OSC-L-100 |
1 |
3.92 |
|
OSC-L-120 |
1.2 |
4.28 |
|
OSC-L-130 |
1.3 |
5.01 |
|
OSC-L-150 |
1.5 |
5.73 |
|
OSC-L-180 |
1.8 |
6.81 |
|
OSC-L-200 |
2 |
7.54 |
|
OSC-L-250 |
2.5 |
9.35 |
Brace
Hot-dip galvanized steel. Mounted into the space between Top Cup and Bottom Cup with the swivel Blade. Diagonal braces should be placed on at least every fifth section starting with the outer ones.
Art. |
Length |
Weight |
Detail |
OSC-B-1 |
1.8*1.5 |
8.25 |
|
OSC-B-2 |
1.8*2.0 |
9.31 |
|
OSC-B-3 |
2.5*1.5 |
9.99 |
|
OSC-B-4 |
2.5*2.0 |
10.86 |
|
OSC-B-5 |
3.0*2.0 |
12.1 |
Packaging & Shipping
Packing: Packed with steel pallets and loaded with container, ensure sea transportation.
Shipping: 20 days after reception of L/C or deposit.
Our Services
• Your inquiry to our product will be replied within 24hours.
• Experienced sales team are able to answer all your inquiries.
• 10 years experienced tech. team could meet all your demands.
• OEM services could be provided, we are willing to marking logo or paste stickers for you.
• Good after-sale service offered, multiple solutions will be provided for problem.
