Specifications
Disposable Aluminium Container Machine:1.Pass ISO 9001:2008
2.High precision,use imported motor
3.Operating easily

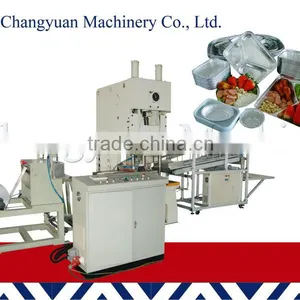

Disposable Aluminium Container Machine is Fully Automatic machine, Adopt imported Seimens motor & PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:
Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser
1). It is high presion and easy operation machine.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
3).This machine equipped with a mould lifter to make sure changing the mould easily by the worker.
4).Our company’s adwantage is that:we can according to your target price and requirment to make the right model for you.
Main Technical data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine Parts:

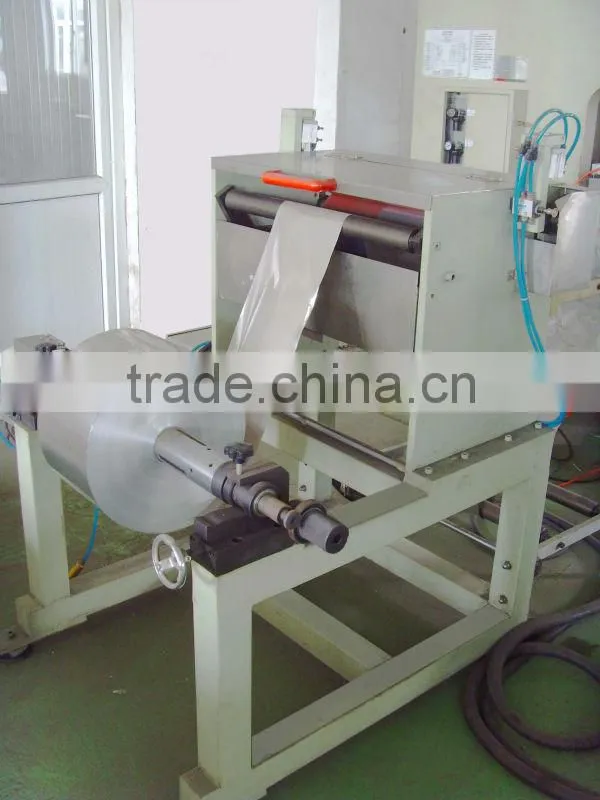

Auto feeding part:

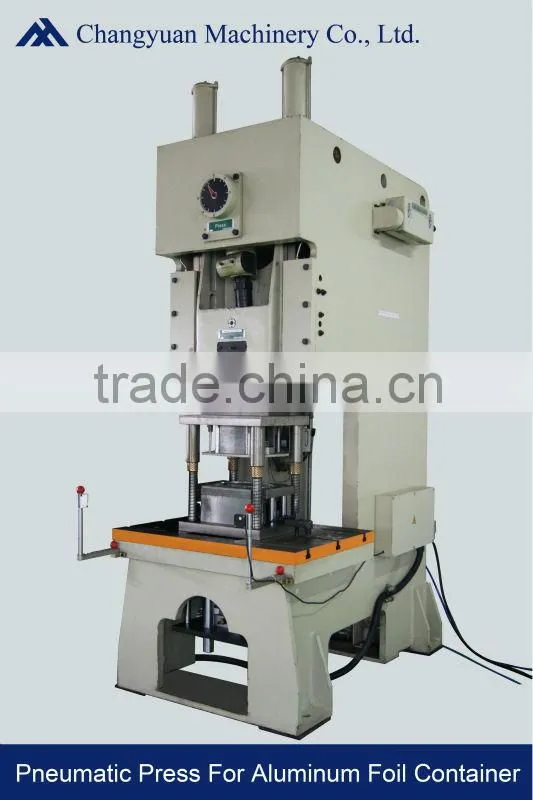

Pneumatic press:

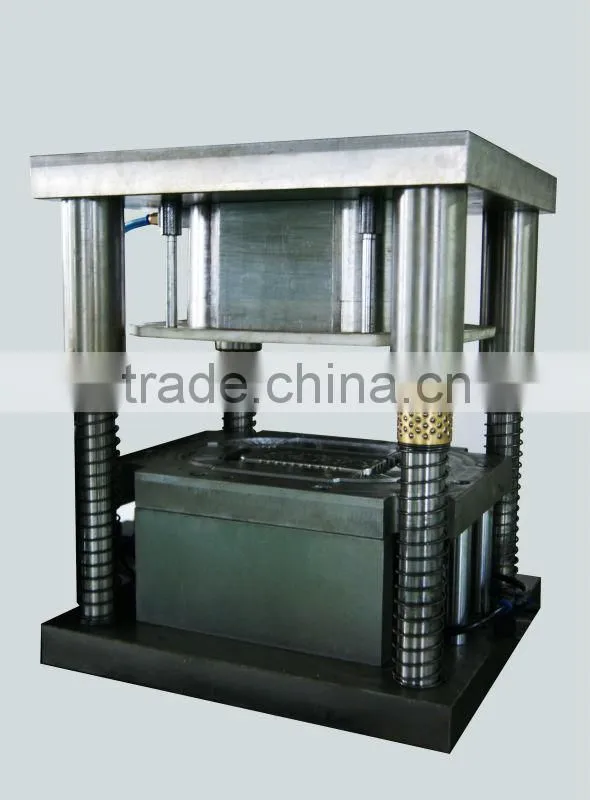

Mould:

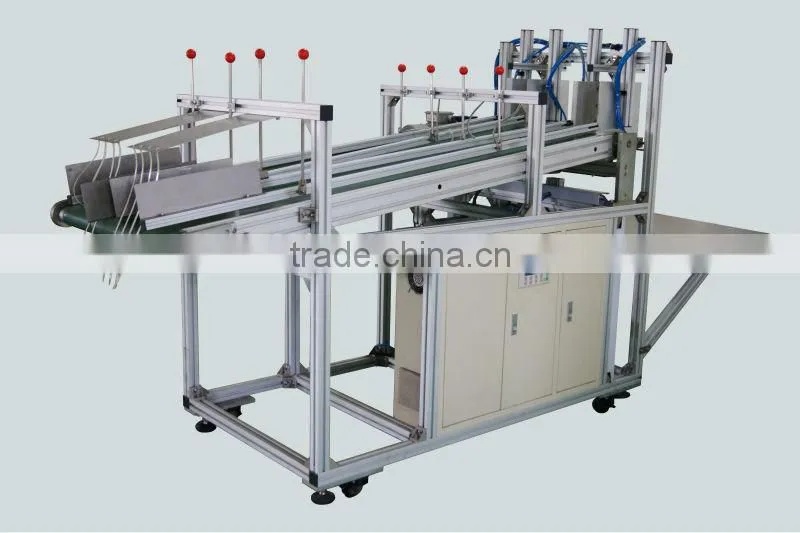

Auto Stacker:
Finished Products:
