Home > Products > WP series worm gear speed reducer > WP series Cast iron Worm speed reducer gearbox 1400rpm electric motor reduction gearbox

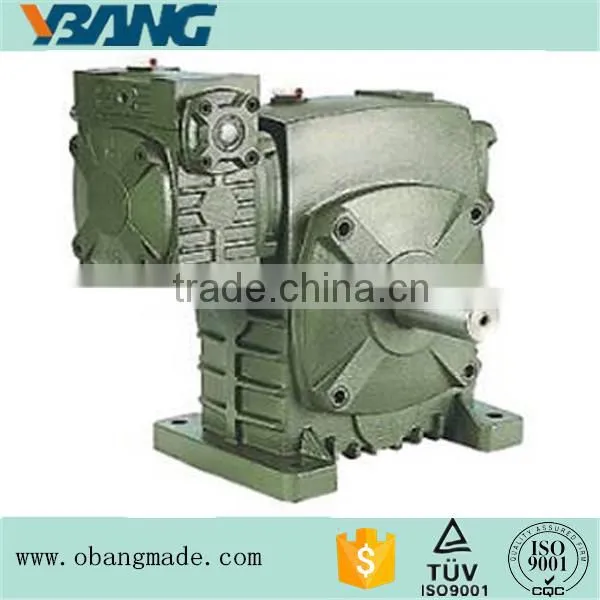

WP series Cast iron Worm speed reducer gearbox 1400rpm electric motor reduction gearbox
- 2000 Set / Sets per Month
- Ningbo Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Gearing Arrangement: | Worm | Output Torque: | 63-6050N.m | Rated Power: | 0.12~15KW |
Input Speed: | 1000-1750rpm | Output Speed: | 0.3-419rpm | Place of Origin: | Zhejiang, China |
Model Number: | WPES40/70 | Brand Name: | YBANG |
Product Description
WP series 1400rpm electric motor reduction gearbox
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers and other small parts.
WP series Worm Gear Speed Reducers
Cement Mill Gearbox

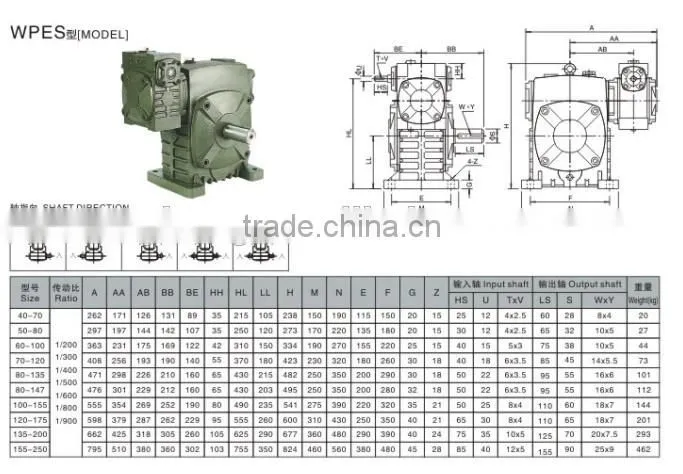

Type: | WP series Double-stage Speed Reducer-Iron Worm Gear Box |
Model: | WPES |
Others: | 40/70,50/80,60/100,70/120,80/135,80/147, 100/155,120/175,135/200,155/250 |
Color: | Blue/Green or on customer request |
Material: | HT200 |
Input power: | 0.12-17.71kw(Under the case of input speed 1500rpm) |
Ratio: | 200,300,400,500,600,800,900 |
Output torque: | 63-6050N.m |
Bearing: | C&U,NSK or on customer's request |
Seal: | CTY,CFW or on customer's request |
Lubricant: | Synthetic |
Warranty: | 1Year |
Product features: It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and wide power.
Application areas: Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environment protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery and new energy field.
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
Welcome to us for more details and parameters
If you have any questions, please feel free to contact me.
Best regards,
Kayla
